4656Z ebm-papst

ebm-papst 4656Z small fan: detailed specifications and excellent feature analysis

1、 Introduction

In today's era of increasing demand for ventilation and heat dissipation, small fans have become indispensable equipment in many fields due to their flexibility and efficiency. As a well-known brand in the industry, ebm-papst's 4656Z small fan has attracted widespread attention for its excellent performance and reliable quality. This article will provide an in-depth introduction to the various parameters of the 4656Z small fan and analyze its unique characteristics.

• Product parameter description

（1） Brand and Number

The ebm-papst brand has an excellent reputation in the field of fan manufacturing, and its products are known for their high quality and advanced technology. As a specific model under the brand, 4656Z has a clear part number, providing users with accurate identification in procurement, after-sales, and technical support, ensuring that users can quickly obtain the required product information and services.

（2） Fan type and size

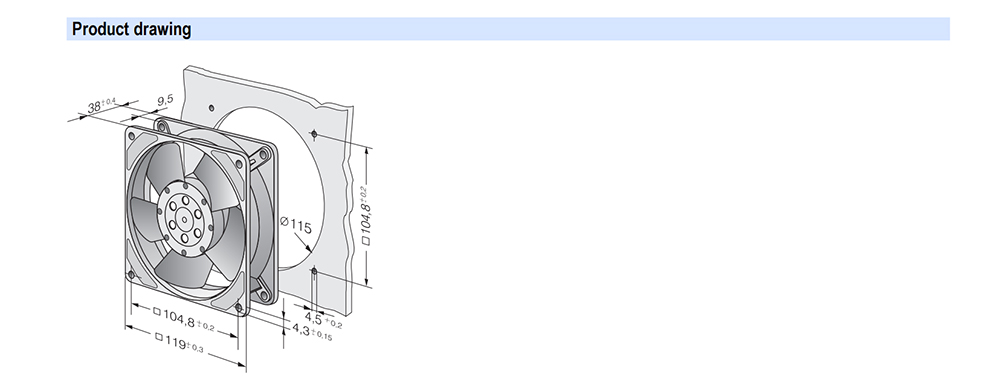

4656Z belongs to the category of small fans, and its compact design allows it to easily adapt to various space limitations. The specific size is 119 * 119 * 38 millimeters. This compact shape allows the fan to be easily installed inside electronic devices, small cabinets, or instruments with strict space requirements, providing an ideal solution for ventilation and heat dissipation in limited spaces.

（3） Electrical parameters

Rated voltage: The rated voltage is 230V, which is a common standard voltage for industrial and commercial electricity. This means that the 4656Z fan can be directly connected to most conventional power systems without the need for additional voltage conversion devices, making it convenient for users to use and install, while also ensuring that the fan operates in a stable voltage environment.

Input power: The input power is only 18W, reflecting the energy-saving characteristics of the fan. Low power consumption not only helps to reduce user costs and minimize energy waste, but also aligns with the current global advocacy for energy conservation and environmental protection. In the case of long-term continuous operation, this energy-saving advantage will be more obvious.

（4） Performance parameters

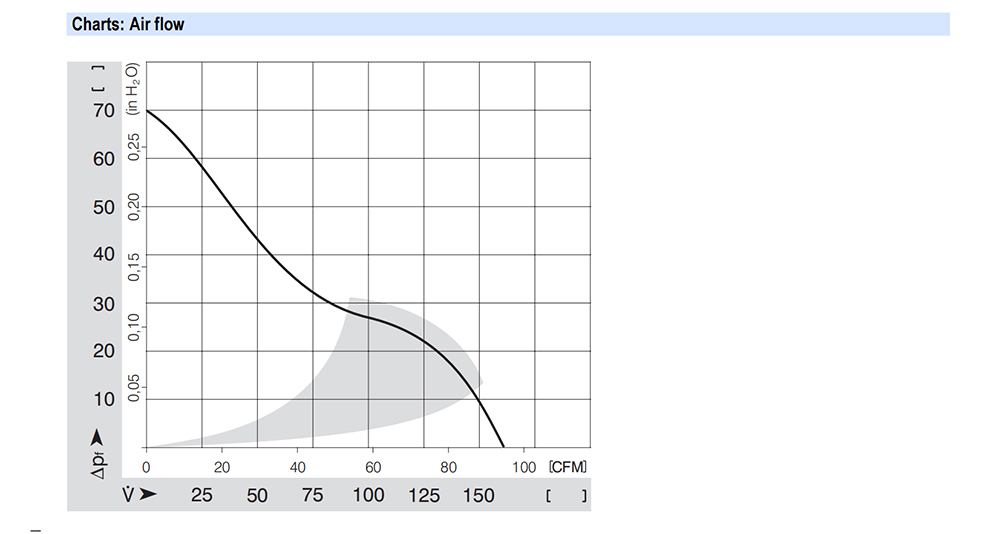

Maximum air volume: The maximum air volume can reach 160 cubic meters per hour, indicating that the fan has strong air transport capacity. In scenarios that require rapid ventilation or heat dissipation, such as CPU cooling inside computer cases or local ventilation in small warehouses, 4656Z can quickly dissipate heat or polluted air and introduce fresh air, effectively improving environmental conditions.

Maximum pressure: The maximum pressure is 70Pa, which allows the fan to maintain good working effect even when facing a certain ventilation resistance. When air needs to pass through components such as ducts and filters, higher pressure can ensure smooth air flow, maintain stable air volume, and ensure the normal operation of the ventilation system.

Speed: The speed is 3100rpm, and a higher speed provides powerful power for the fan, helping to achieve a large air output. Meanwhile, advanced design and manufacturing processes ensure the stability and reliability of the fan at high speeds.

Noise level: The noise level is only 40dB, which is a major highlight of the 4656Z fan. During operation, the fan does not produce significant noise interference, making it very suitable for use in noise sensitive environments such as offices, libraries, hospital wards, etc., creating a quiet and comfortable working and living environment for users.

• Analysis of Product Features

（1） Efficient aerodynamic design

The 4656Z fan is designed using advanced aerodynamic principles. The shape and angle of its fan blades have been carefully optimized to minimize air resistance and improve air flow efficiency during rotation. When the fan blades rotate, air can be smoothly drawn in from the inlet and efficiently discharged from the outlet, forming a strong and stable airflow. This design not only increases the air volume and pressure output of the fan, but also reduces energy consumption, making the fan more energy-efficient and efficient during operation.

（2） High quality motor technology

The fan is equipped with a high-performance motor, which is the core guarantee for its stable operation. The motor adopts advanced manufacturing technology and high-quality materials, and has the characteristics of high reliability and long service life. The windings inside the motor are made of high-purity copper wire, which can effectively reduce resistance, improve energy conversion efficiency, and reduce energy loss. At the same time, the bearings of the motor adopt high-precision ball bearings, which have good lubrication performance and low friction coefficient, and can withstand the frictional and impact forces generated during high-speed rotation, ensuring the stability and reliability of the fan during long-term operation. In addition, the motor also has good heat dissipation performance, which can timely dissipate the heat generated during operation, avoiding the impact of overheating on the performance and service life of the motor.

（3） Durable and sturdy shell material

The casing of the fan is made of high-strength engineering plastic material, which has excellent impact resistance and corrosion resistance. This shell design can effectively protect the internal motor and fan blades from external object impact and chemical erosion, ensuring that the fan can operate normally even in harsh working environments. The surface of the casing has undergone special treatment, making it smooth and easy to clean, making it convenient for users to maintain and upkeep the fan in daily use. At the same time, the structural design of the casing is reasonable, which not only provides good protection, but also helps with air circulation and improves the overall performance of the fan.

（4） Good compatibility and easy installation

The 4656Z fan has good compatibility and can seamlessly integrate with various devices and systems. It can be used in conjunction with heat dissipation components such as heat sinks and air ducts to further improve the heat dissipation effect. In terms of installation, the fan provides multiple installation methods, and users can choose the appropriate installation method according to their actual needs, such as screw installation, buckle installation, etc. The installation process is simple and convenient, without the need for complex tools and professional skills. Even ordinary users can easily complete the installation, saving a lot of time and energy.

• Conclusion

The ebm-papst 4656Z small fan has a significant competitive advantage in the small fan market due to its excellent parameter combination and unique features. It provides users with an efficient, energy-saving, quiet, and reliable ventilation solution that can meet the diverse needs of different fields and scenarios. Whether in electronic device cooling, small space ventilation, or other places that require ventilation, the 4656Z small fan can perform excellently, creating a good user experience. In the future development, with the continuous advancement of technology and the increasing demand for applications, 4656Z fans are expected to be widely used in more fields and make greater contributions to the development of various industries.
