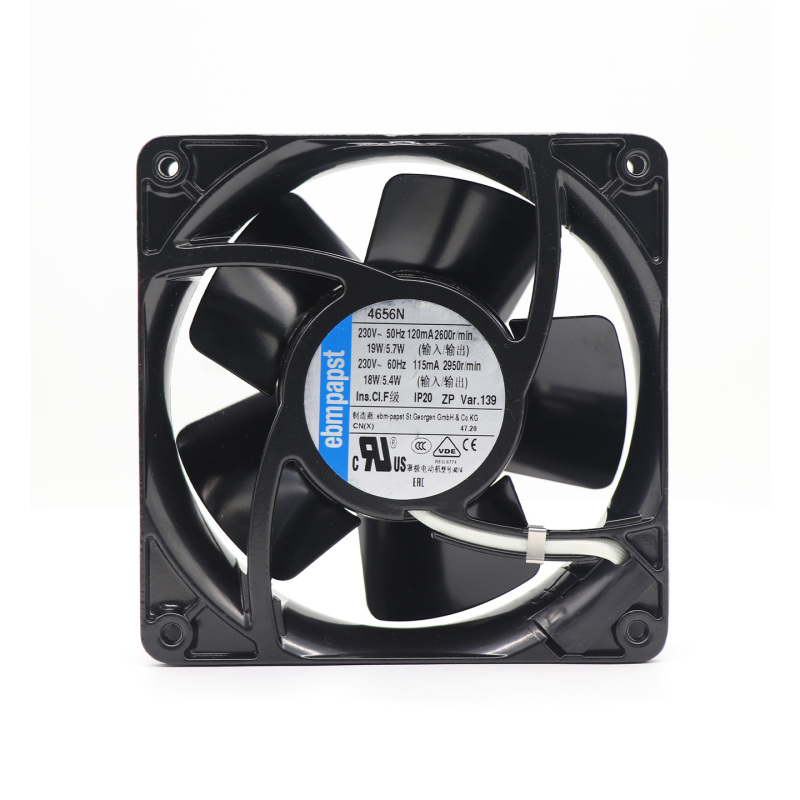

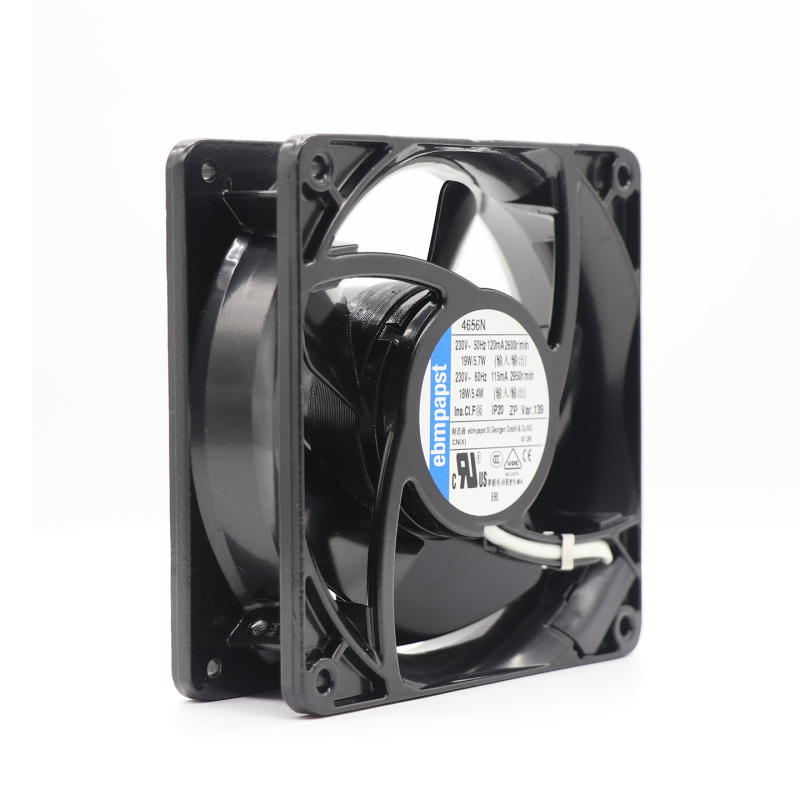

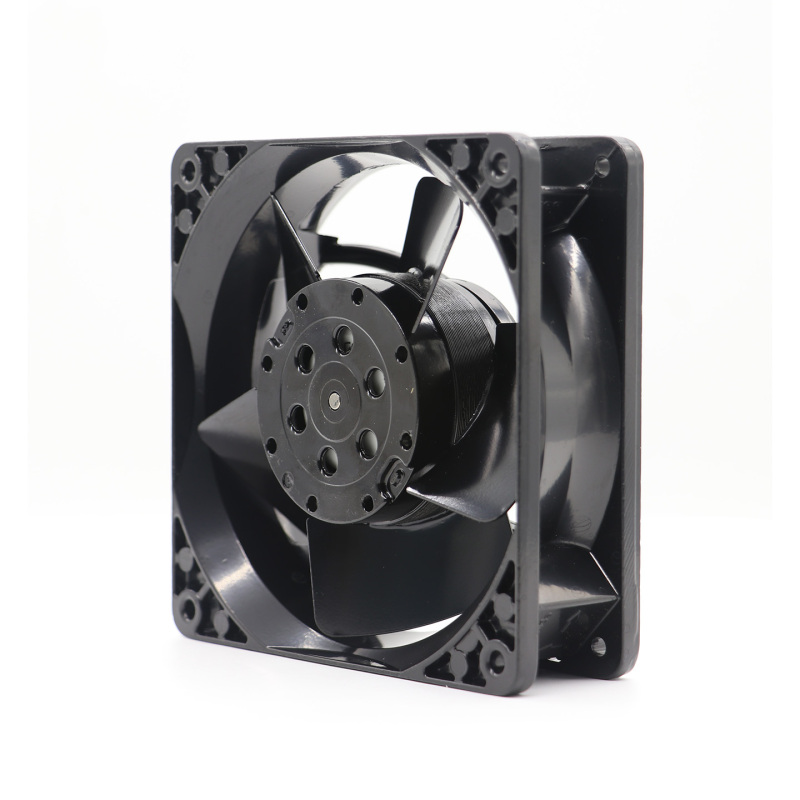

4656N ebmpapst

• Introduction

In the market of ventilation and heat dissipation equipment, small fans play an important role in many fields due to their flexible and efficient characteristics. The 4656N small fan from ebm-papst has become the first choice for many users due to its unique design and excellent performance. This article will provide a detailed introduction to the various parameters and significant features of the 4656N small fan.

• Detailed explanation of parameters

（1） Basic specifications

ebm-papst 4656N is a small fan with high brand awareness and part number 4656N, which provides accurate identification basis for users in procurement and after-sales maintenance. Its rated voltage is 230V, a common voltage specification that allows the fan to be easily connected to most conventional power systems and suitable for various application scenarios.

（2） Size advantage

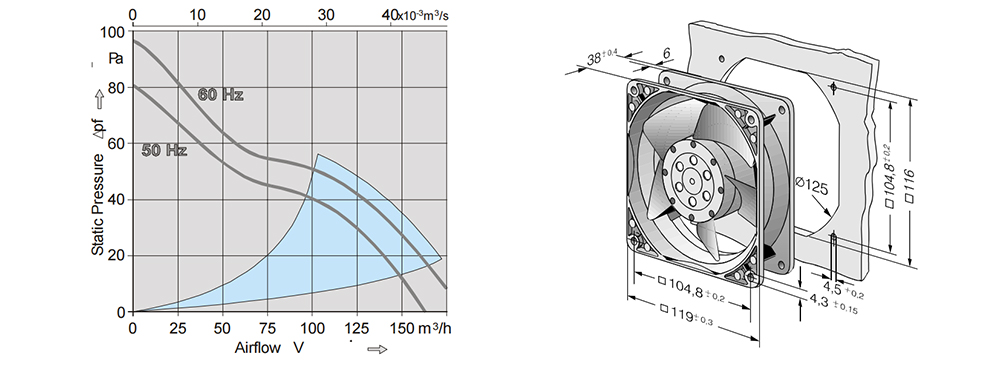

The size of the fan is 11911938 millimeters, and its compact exterior design is one of its highlights. In environments with limited space, such as electronic equipment chassis, small cabinets, or instruments and equipment with strict space layout requirements, 4656N can be easily installed without taking up too much space. At the same time, the compact size also facilitates flexible layout and combination to meet different ventilation needs.

（3） Powerful airflow performance

The maximum air volume can reach 160 cubic meters per hour, which is outstanding among similar small fans. Adequate air volume means that the fan can quickly and effectively achieve air circulation and exchange. In some scenarios that require rapid heat dissipation or ventilation, such as cooling the CPU and graphics card inside the computer host, and local ventilation in small warehouses, 4656N can quickly dissipate heat or polluted air and introduce fresh air to ensure the normal operation of the equipment and the comfort of the environment.

（4） Significant pressure output

The maximum pressure is 82Pa, which allows the 4656N fan to maintain good working performance even in ventilation systems facing certain resistance. When a fan needs to ventilate through components such as air ducts and filters, higher pressure can ensure smooth passage of air through these obstacles and maintain a stable airflow. For example, in some ventilation systems equipped with air purification filters, 4656N can overcome the resistance of the filters, ensure normal air circulation, and achieve effective air purification.

（5） Reasonable power consumption

The input power is 19W, and the relatively low power consumption reflects the energy-saving characteristics of the fan. In the current era of pursuing energy conservation and environmental protection, low-power operation not only reduces user costs and energy waste, but also conforms to the concept of sustainable development. Long term use of 4656N fans can save users a considerable amount of electricity expenses, while also making a positive contribution to environmental protection.

（6） Balance between speed and noise

The speed is 2650rpm, which effectively controls the noise level while ensuring a certain air volume and pressure output. Its noise level is only 47dB, and it will not generate excessive noise interference during operation. This makes 4656N very suitable for use in noise sensitive environments such as offices, libraries, hospital wards, etc. Users can enjoy ventilation services while maintaining a quiet working, studying, and resting environment.

• Characteristic Analysis

（1） Efficient aerodynamic design

The 4656N fan is designed using advanced aerodynamic principles. The shape and angle of its fan blades have been carefully optimized to minimize air resistance and improve air flow efficiency during rotation. When the fan blades rotate, air can be smoothly drawn in from the inlet and efficiently discharged from the outlet, forming a strong and stable airflow. This design not only increases the air volume and pressure output of the fan, but also reduces energy consumption, making the fan more energy-efficient and efficient during operation.

（2） High quality motor technology

The fan is equipped with a high-performance motor, which is the core guarantee for its stable operation. The motor adopts advanced manufacturing technology and high-quality materials, and has the characteristics of high reliability and long service life. The windings inside the motor are made of high-purity copper wire, which can effectively reduce resistance, improve energy conversion efficiency, and reduce energy loss. At the same time, the bearings of the motor adopt high-precision ball bearings, which have good lubrication performance and low friction coefficient, and can withstand the frictional and impact forces generated during high-speed rotation, ensuring the stability and reliability of the fan during long-term operation. In addition, the motor also has good heat dissipation performance, which can timely dissipate the heat generated during operation, avoiding the impact of overheating on the performance and service life of the motor.

（3） Durable and sturdy shell material

The casing of the fan is made of high-strength engineering plastic material, which has excellent impact resistance and corrosion resistance. This shell design can effectively protect the internal motor and fan blades from external object impact and chemical erosion, ensuring that the fan can operate normally even in harsh working environments. The surface of the casing has undergone special treatment, making it smooth and easy to clean, making it convenient for users to maintain and upkeep the fan in daily use. At the same time, the structural design of the casing is reasonable, which not only provides good protection, but also helps with air circulation and improves the overall performance of the fan.

（4） Good compatibility and easy installation

The 4656N fan has good compatibility and can seamlessly integrate with various devices and systems. It can be used in conjunction with heat dissipation components such as heat sinks and air ducts to further improve the heat dissipation effect. In terms of installation, the fan provides multiple installation methods, and users can choose the appropriate installation method according to their actual needs, such as screw installation, buckle installation, etc. The installation process is simple and convenient, without the need for complex tools and professional skills. Even ordinary users can easily complete the installation, saving a lot of time and energy.

• Conclusion

The ebm-papst 4656N small fan has a significant competitive advantage in the small fan market due to its excellent parameter combination and unique characteristics. It provides users with an efficient, energy-saving, quiet, and reliable ventilation solution that can meet the diverse needs of different fields and scenarios. Whether in electronic device cooling, small space ventilation, or other places that require ventilation, the 4656N small fan can perform excellently, creating a good user experience. In the future development, with the continuous advancement of technology and the increasing demand for applications, 4656N fans are expected to be widely used in more fields and make greater contributions to the development of various industries.
