| Brand： | ebmpapst |
| Part No： | A2D170-AA04-02 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 400 |
| Size(mm)： | 170 |
| Max.Air Flow(m³/h)： | 535 |
| Max.Pressure(Pa)： | 80 |
| Input Power(W)： | 45 |
| Speed(rpm)： | 2750 |
| Noise(db)： | N/A |

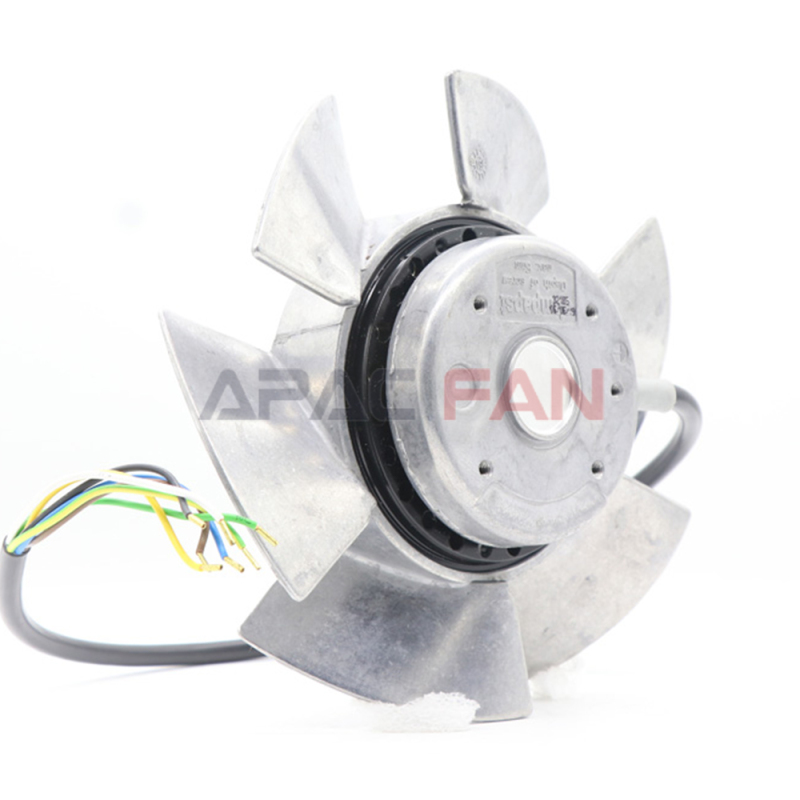

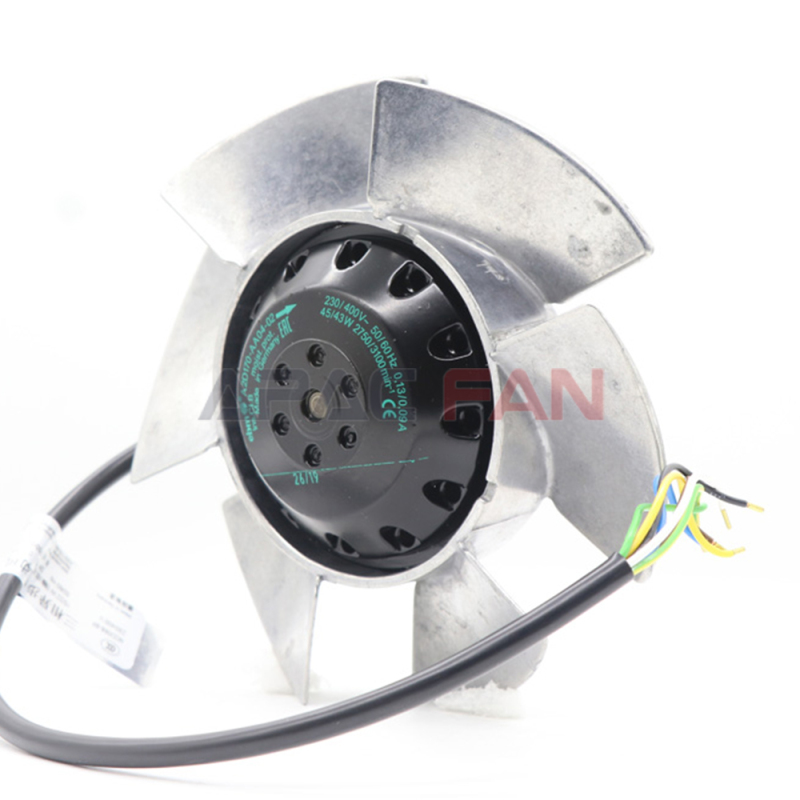

The A2D170-AA04-02 is an axial fan, a type of fan renowned for its ability to move air parallel to the axis of rotation. This design makes it particularly suitable for applications where a large volume of air needs to be displaced with relatively low pressure requirements. Axial fans, like the A2D170-AA04-02, are commonly used in scenarios such as ventilation systems for industrial facilities, air circulation in large warehouses, and in some cases, in the cooling of electronic equipment.
Physical Design and Construction

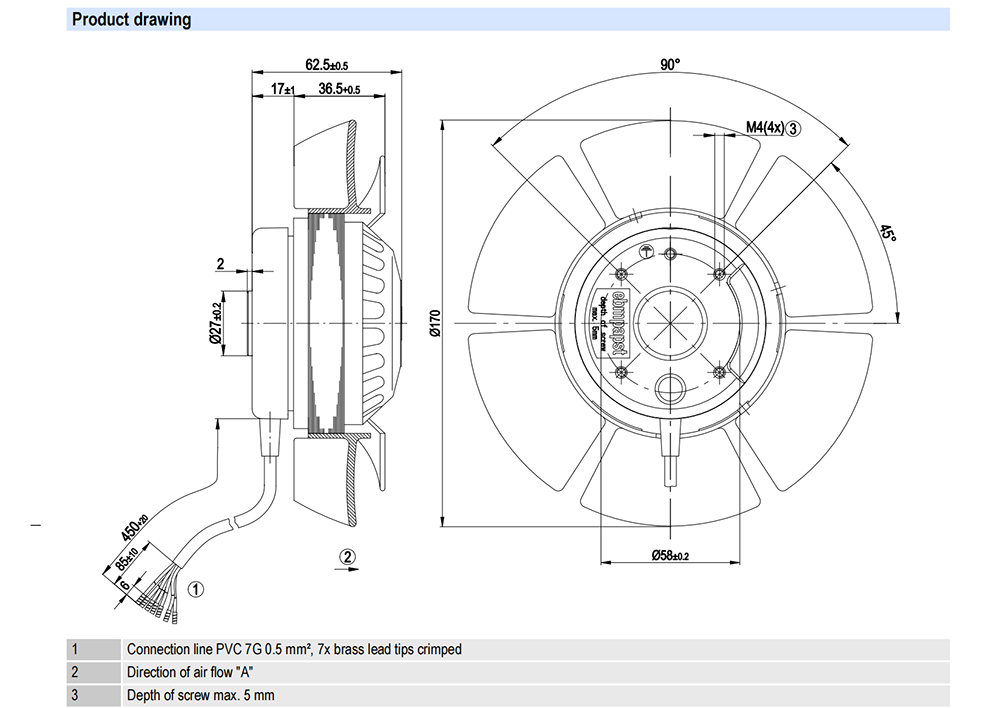

The physical dimensions of the A2D170-AA04-02 play a crucial role in its functionality and adaptability. With a size of 170 mm, this fan strikes a balance between compactness and performance. The compact size allows for easy integration into a variety of systems, whether it's a tight ductwork installation in a commercial building or a confined space within industrial machinery. The construction of the fan is a result of meticulous engineering. The fan blades are designed with precision to optimize air movement. Their shape and angle are carefully calculated to maximize the efficiency of air intake and discharge, ensuring that the fan can move the specified volume of air with minimal energy loss.
The housing of the A2D170-AA04-02 is crafted from high-quality materials that offer both durability and resistance to wear and tear. This not only enhances the lifespan of the fan but also makes it suitable for operation in challenging environments. The robust construction ensures that the fan can withstand the rigors of continuous use, which is essential in applications where reliability is of utmost importance.
Electrical Specifications

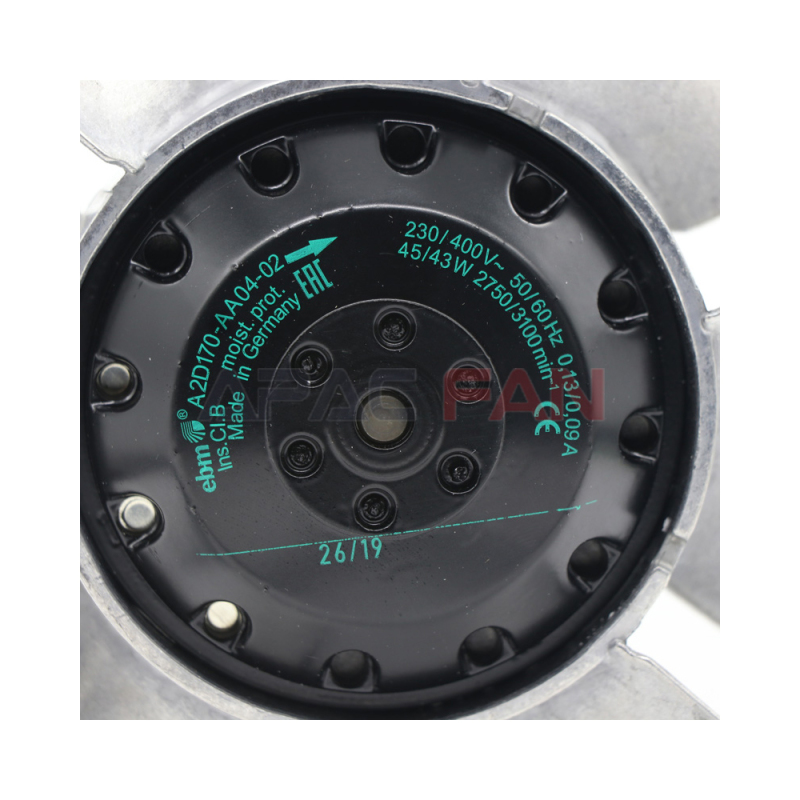

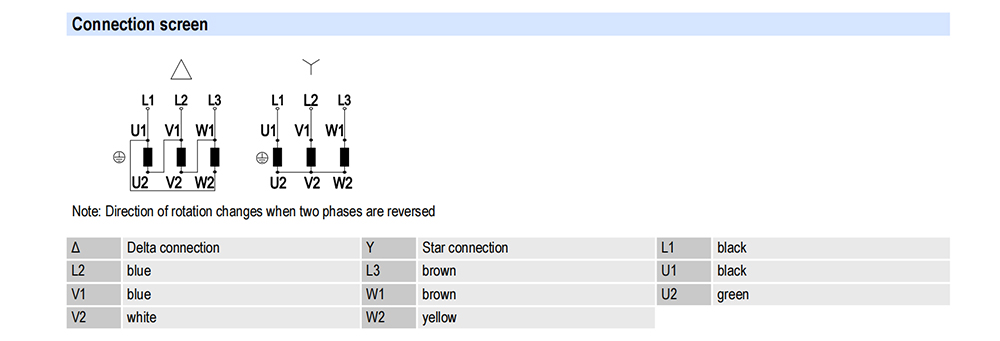

One of the key aspects of the A2D170-AA04-02 fan is its electrical specifications. The fan is rated for a voltage of 400 volts. This voltage rating places it in a category that is commonly used in industrial and some commercial electrical systems. The use of a 400-volt power supply provides the fan with the necessary electrical energy to operate at its optimal performance levels. It also simplifies the integration process, as many industrial facilities and commercial buildings are already equipped with electrical systems that can support this voltage.
The input power of the fan is 45 watts. This relatively low power consumption is a significant advantage, especially in applications where energy efficiency is a priority. In today's world, where there is a growing emphasis on reducing energy consumption and minimizing environmental impact, the A2D170-AA04-02's ability to deliver substantial performance while consuming minimal power is highly commendable. It not only helps to lower operational costs for businesses but also contributes to a more sustainable approach to ventilation and air management.
Performance Metrics

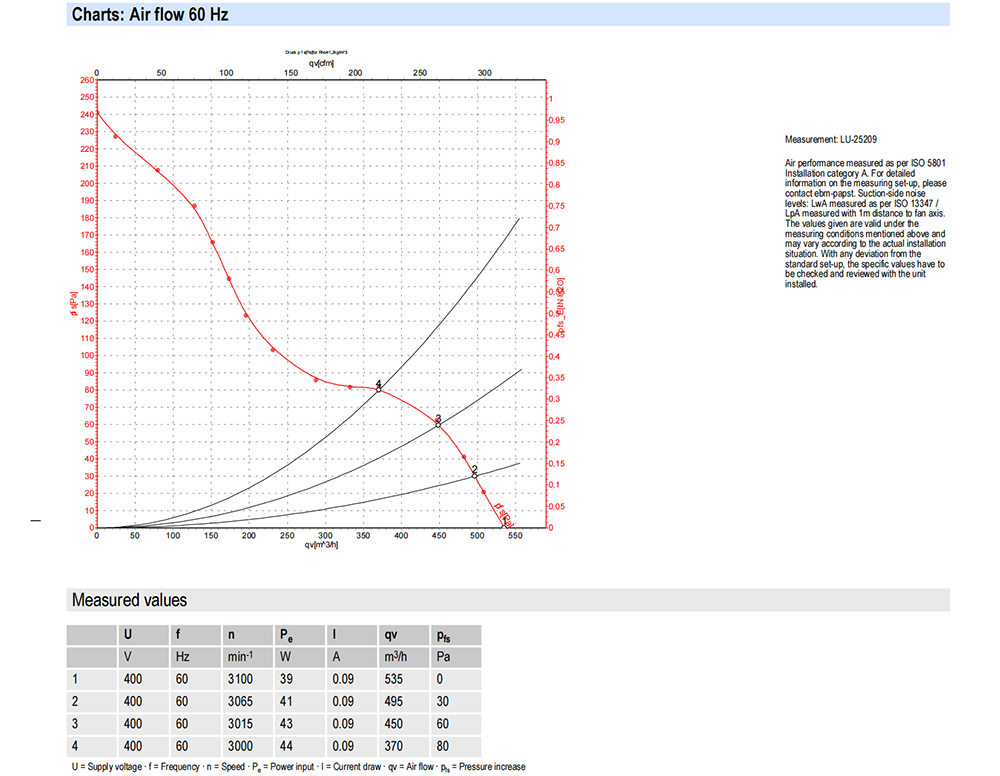

The performance of the A2D170-AA04-02 fan is characterized by several key metrics that define its capabilities. The maximum air flow rate of the fan is an impressive 535 cubic meters per hour. This high air flow rate indicates the fan's ability to move a significant volume of air in a given time period. Whether it's for replacing stale air in a large room or cooling a high-heat generating component, the A2D170-AA04-02 can effectively meet the air movement requirements.
The maximum pressure generated by the fan is 80 pascals. While this may seem relatively low compared to some other types of fans, it is important to note that axial fans are designed for applications where the primary focus is on moving a large volume of air rather than generating high pressures. In the context of its intended applications, such as general ventilation and air circulation, the 80 pascal pressure is sufficient to overcome the resistance in the system and ensure that the air is effectively distributed.
The fan operates at a speed of 2750 revolutions per minute (rpm). This high rotational speed is a contributing factor to the fan's ability to achieve the specified air flow rate. The precise control of the fan's speed ensures that it can maintain a consistent performance, even under varying operating conditions.
Applications of the A2D170-AA04-02 Axial Fan
The versatility of the A2D170-AA04-02 axial fan makes it suitable for a wide range of applications across different industries.
Industrial Applications
In industrial settings, this fan can be employed in a variety of ventilation systems. For example, in manufacturing plants where there is a need to remove fumes, dust, and other contaminants from the air, the A2D170-AA04-02 can be integrated into the exhaust system. Its high air flow rate allows it to quickly and efficiently remove pollutants, ensuring a clean and safe working environment for employees. Additionally, in large warehouses and storage facilities, the fan can be used for air circulation. This helps to maintain a consistent temperature and humidity level throughout the space, which is crucial for the preservation of stored goods.
The fan can also be used in the cooling systems of industrial machinery. Many industrial processes generate a significant amount of heat, and effective cooling is essential to prevent overheating and damage to the equipment. The A2D170-AA04-02's ability to move a large volume of air at a relatively low power consumption makes it an ideal choice for cooling applications. It can be used to cool motors, transformers, and other heat-generating components, ensuring their optimal performance and longevity.
Commercial Applications
In commercial buildings, the A2D170-AA04-02 fan has several potential applications. In office buildings, it can be part of the heating, ventilation, and air conditioning (HVAC) system. It can help to distribute conditioned air throughout the building, ensuring a comfortable indoor environment for occupants. The fan's compact size and low power consumption make it an attractive option for commercial HVAC systems, as it can be easily installed in existing ductwork without requiring significant modifications.
In shopping malls and large retail spaces, the A2D170-AA04-02 can be used for air circulation and ventilation. These spaces often have a high footfall, and proper air management is essential to maintain a pleasant shopping experience for customers. The fan can help to remove odors, smoke, and other pollutants, and it can also assist in the distribution of fresh air, improving the overall air quality in the building.
Other Applications
The A2D170-AA04-02 fan can also find applications in other areas. For instance, in agricultural settings, it can be used for ventilation in greenhouses and livestock barns. In greenhouses, proper air circulation is important for maintaining the right temperature, humidity, and carbon dioxide levels, which are essential for plant growth. In livestock barns, the fan can help to remove ammonia and other harmful gases, creating a healthier environment for the animals.
In some cases, the fan can also be used in DIY projects or in the modification of existing ventilation systems. Its ease of installation and reliable performance make it a popular choice for individuals who are looking to improve the air quality in their homes or small-scale facilities.
Installation and Maintenance
Installing the A2D170-AA04-02 fan is a relatively straightforward process. The fan comes with all the necessary mounting hardware, and its design allows for easy installation in a variety of locations. When installing the fan, it is important to ensure that it is properly aligned and securely fastened to prevent vibration and noise. The electrical connections should be made in accordance with the manufacturer's instructions to ensure safe and reliable operation.
Maintenance of the A2D170-AA04-02 fan is also relatively simple. Regular cleaning of the fan blades and housing is recommended to remove dust, debris, and other contaminants that can accumulate over time. This helps to maintain the fan's performance and efficiency. It is also advisable to check the electrical connections periodically to ensure that they are in good condition and free from any signs of damage or loose connections. With proper installation and regular maintenance, the A2D170-AA04-02 fan can provide reliable and efficient service for an extended period of time.
In summary, the ebm-papst A2D170-AA04-02 axial fan is a highly capable and versatile product that offers a combination of performance, efficiency, and reliability. Its compact size, low power consumption, and high air flow rate make it suitable for a wide range of applications in industrial, commercial, and other settings. The brand's reputation for quality and innovation, along with the fan's robust construction and ease of installation and maintenance, further enhance its appeal. Whether it's for improving air quality, cooling equipment, or enhancing the overall ventilation system, the A2D170-AA04-02 is a fan that can be trusted to deliver consistent and satisfactory results.
