straight blades (A series)
| Brand： | ebm-papst |
| Part No： | A2E170-AF23-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 170 |
| Max.Air Flow(m³/h)： | N/A |
| Max.Pressure(Pa)： | N/A |
| Input Power(W)： | 47 |
| Speed(rpm)： | 2700 |
| Noise(dB)： | N/A |
| Mass: | 1.18 kg |
| Surface of Rotor: | Coated in black |
| Material of Impeller: | Die-cast aluminium |
| Number of Blades: | 6 |
| Direction of Air Flow: | "V" |
| Direction of Rotation: | Counter-clockwise, seen on rotor |
| Type of Protection: | IP44 |
| Insulation Class: | "B" |
| Humidity Class: | F5 |
| Max. Ambient Motor Temp. (Transp./Storage): | +80°C |
| Min. Ambient Motor Temp. (Transp./Storage): | -40°C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Leakage Current: | < 0.75 mA |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth connected by customer) |
| Conforming Standards: | EN 60335-1; CE |
| Approval: | CCC |
Ebm-papst is a brand that is synonymous with innovation, quality, sustainability, and customer service. Its commitment to excellence and its continuous drive to improve have made it a trusted partner for businesses and organizations across a wide range of industries. As the demand for efficient and reliable ventilation and drive solutions continues to grow, ebm-papst is well-positioned to meet the challenges of the future and to maintain its position as a leader in the global market.
Introduction to the A2E170-AF23-01 Axial Fan
The A2E170-AF23-01 is an axial fan, which means that the air moves parallel to the axis of the fan. This type of fan is commonly used in applications where a large volume of air needs to be moved with relatively low pressure requirements. Axial fans are known for their simplicity and efficiency, and the A2E170-AF23-01 is no exception.

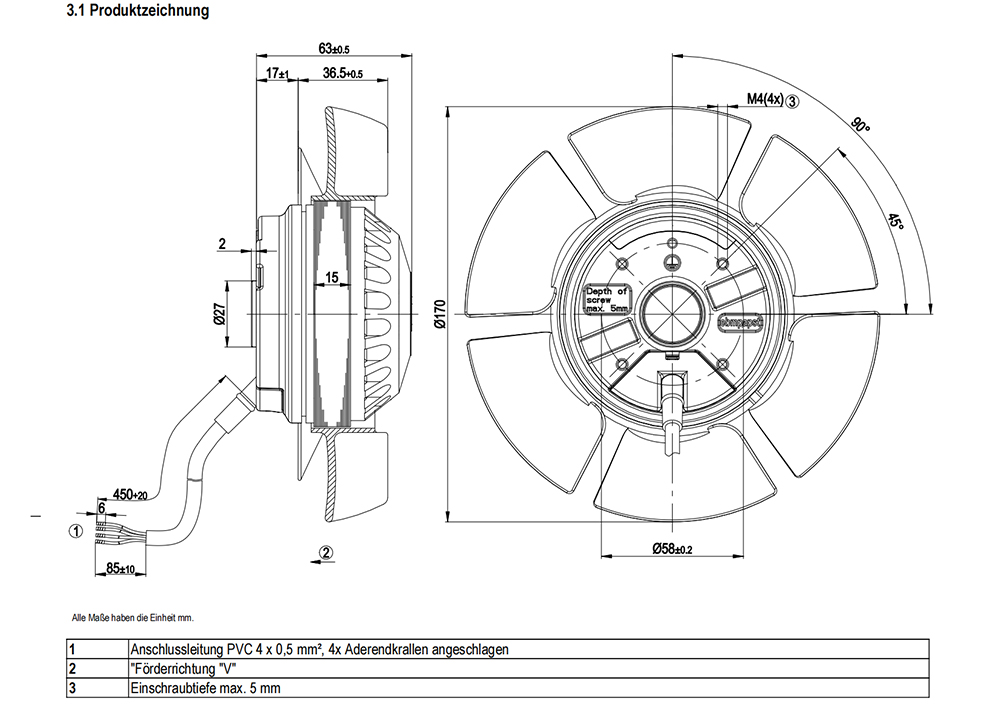

Fan Design and Construction
The physical design of the A2E170-AF23-01 is carefully engineered to optimize performance. The fan has a size of 170 mm, which makes it suitable for a variety of installation spaces. The compact size does not compromise on the fan's ability to move air effectively. The fan blades are designed in a way that ensures smooth and efficient air movement. The shape and angle of the blades are carefully calculated to maximize the air flow while minimizing energy consumption.
The housing of the fan is made of high-quality materials that are both durable and lightweight. This not only ensures the longevity of the fan but also makes it easier to install and handle. The construction of the fan is designed to withstand the rigors of continuous operation, making it suitable for applications where reliability is crucial.
Electrical Specifications
One of the key aspects of the A2E170-AF23-01 fan is its electrical specifications. The fan is rated for a voltage of 230 volts. This standard voltage rating makes it compatible with many electrical systems, both in commercial and industrial settings. The use of a standard voltage simplifies the installation process, as there is no need for complex voltage conversion or additional electrical components.
The input power of the fan is 47 watts. This relatively low power consumption is a significant advantage, especially in applications where energy efficiency is a priority. The fan is able to achieve a high level of performance while consuming a minimal amount of power, which not only reduces operating costs but also contributes to environmental sustainability.
Performance Characteristics
The performance of the A2E170-AF23-01 fan is characterized by its speed and the ability to move air. The fan operates at a speed of 2700 revolutions per minute (rpm). This high speed allows the fan to move a significant volume of ai.
Applications of the A2E170-AF23-01 Axial Fan
The A2E170-AF23-01 axial fan can be used in a wide range of applications due to its versatile design and performance characteristics.
Industrial Applications
In industrial settings, this fan can be used in ventilation systems for factories and warehouses. It can help to circulate fresh air and remove stale air, ensuring a healthy working environment for employees. It can also be used in cooling systems for machinery and equipment. The ability to move a large volume of air at a relatively low power consumption makes it an ideal choice for cooling applications where energy efficiency is important. For example, in manufacturing plants where there are large electrical motors or other heat-generating equipment, the A2E170-AF23-01 fan can be used to dissipate the heat and prevent overheating.
Commercial Applications
In commercial buildings such as offices, shopping malls, and hotels, the A2E170-AF23-01 fan can be used in heating, ventilation, and air conditioning (HVAC) systems. It can be part of the air distribution system, ensuring that conditioned air is evenly distributed throughout the building. The compact size of the fan makes it easy to install in ductwork or other confined spaces, and its low power consumption helps to reduce the overall energy costs of the building. Additionally, in commercial kitchens, where there is a need for effective ventilation to remove cooking fumes and odors, this fan can play a crucial role.
Other Applications
The A2E170-AF23-01 fan can also be used in some residential applications. For example, in attics or basements where there is a need for ventilation to prevent moisture buildup and mold growth. It can also be used in small-scale air purification systems or in DIY projects where a reliable and efficient fan is required.
Installation and Maintenance
Installing the A2E170-AF23-01 fan is a relatively straightforward process. The fan is designed to be easily mounted in a variety of locations, and the necessary mounting hardware is usually provided. When installing the fan, it is important to ensure that it is properly aligned and secured to prevent vibration and noise. The electrical connections should also be made according to the manufacturer's instructions to ensure safe and reliable operation.
Maintenance of the fan is minimal. Regular cleaning of the fan blades and housing can help to ensure optimal performance and prevent the buildup of dust and debris. It is also important to check the electrical connections periodically to ensure that they are secure and free from damage. With proper installation and maintenance, the A2E170-AF23-01 fan can provide reliable service for many years.
In conclusion, the ebm-papst A2E170-AF23-01 axial fan is a high-quality and versatile product that offers a range of benefits. Its compact size, low power consumption, and high-speed operation make it suitable for a wide range of applications in industrial, commercial, and even some residential settings. While some parameters such as the maximum air flow and pressure are not specified, the fan's design and performance characteristics suggest that it is capable of delivering excellent results in its intended applications. With its reputation for reliability and durability, and the support of the ebm-papst brand, the A2E170-AF23-01 axial fan is a worthy choice for anyone in need of an efficient and effective air movement solution. Whether it is for ventilation, cooling, or other applications, this fan is sure to meet the requirements and provide a reliable performance.
