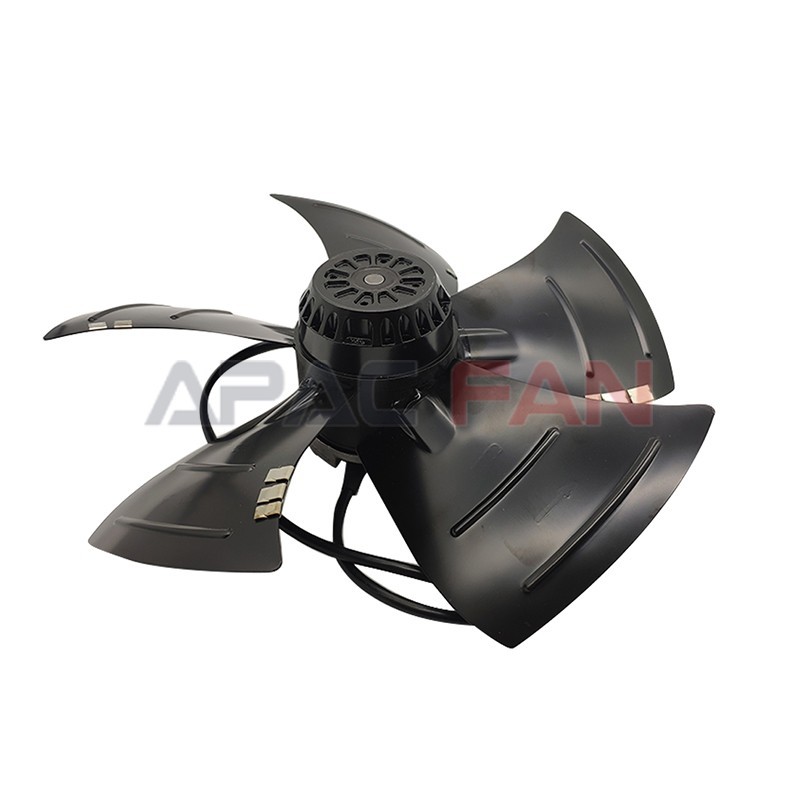

AC axial fan - HyBlade, sickle-shaped blades (S series)
| Brand： | ebm-papst |
| Part No： | A4D500-AM03-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 460 |
| Size(mm)： | 500 |

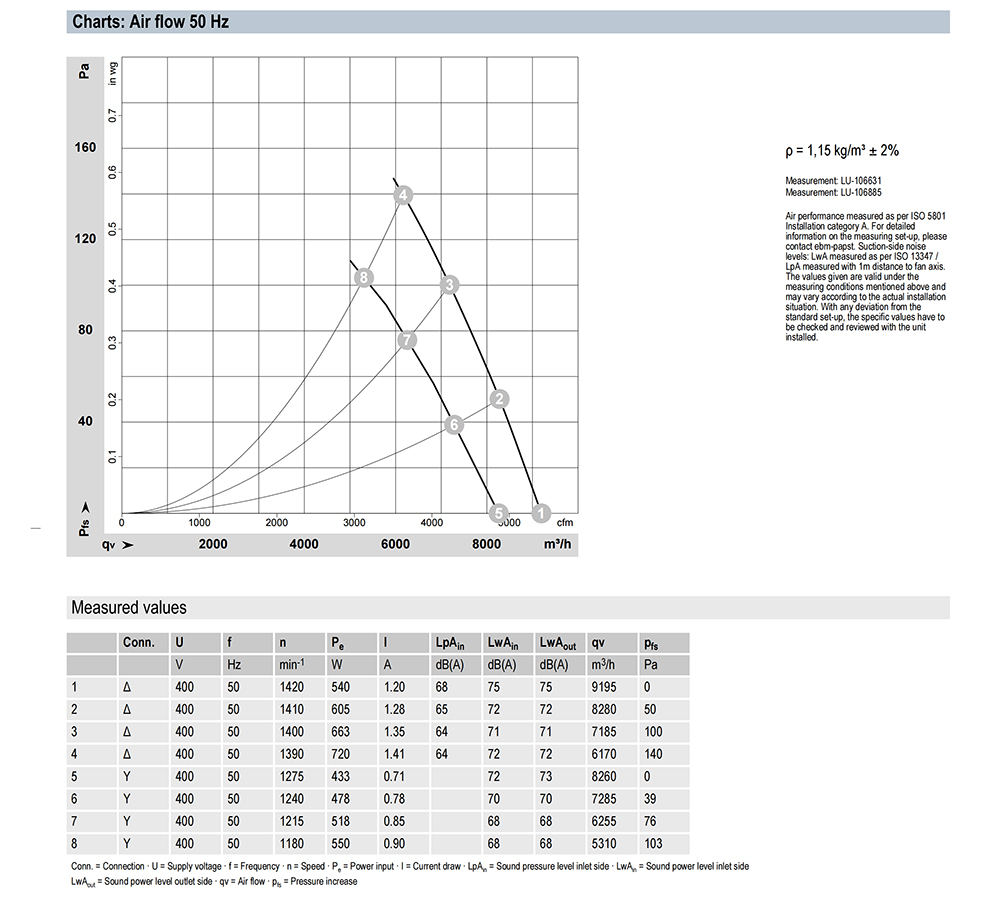

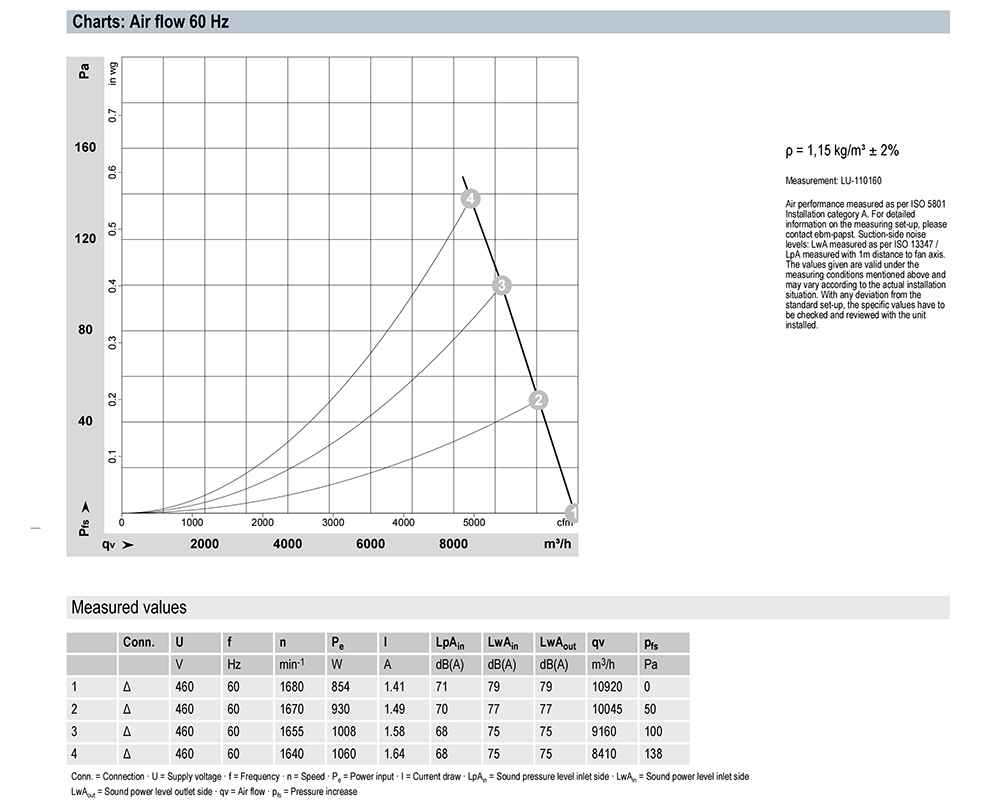

| Max.Air Flow(m³/h)： | 10920 |
| Max.Pressure(Pa)： | 138 |
| Input Power(W)： | 1060 |
| Speed(RPM)： | 1640 |
| Noise(dB)： | 68 |
| Weight: | 9.8 kg |
| Rotor Surface: | Painted black |
| Terminal Box Material: | PP plastic |
| Blade Material: | Press-fitted sheet steel blank, sprayed with PP plastic |
| Number of Blades: | 5 |
| Airflow Direction: | "V" |
| Direction of Rotation: | Counterclockwise, viewed toward rotor |
| Degree of Protection: | IP54 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | F4-1 |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensation Drainage Holes: | On rotor side |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current According to IEC 60990 (Measuring Circuit Fig. 4, TN System): | <= 3.5 mA |

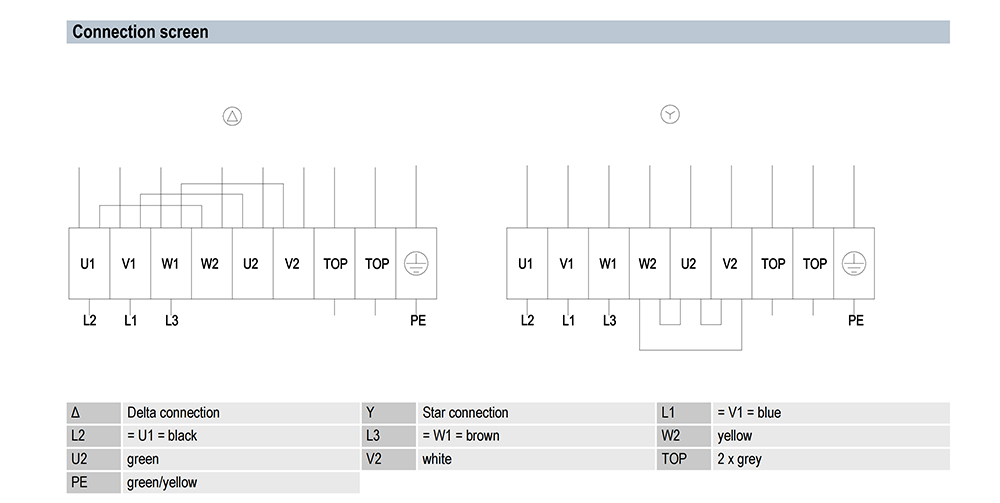

| Electrical Hookup: | Via terminal box |
| Motor Protection: | Thermal overload protector (TOP) with basic insulation |
| Cable Exit: | Axial |
| Protection Class: | I (with customer connection of protective earth) |
| Conformity with Standards: | EN 61800-5-1; CE |
| Approval: | VDE; EAC; CCC |
