FAQ
Q1: What voltage and control options are available for the ebm-papst G1G108-AB17-02?

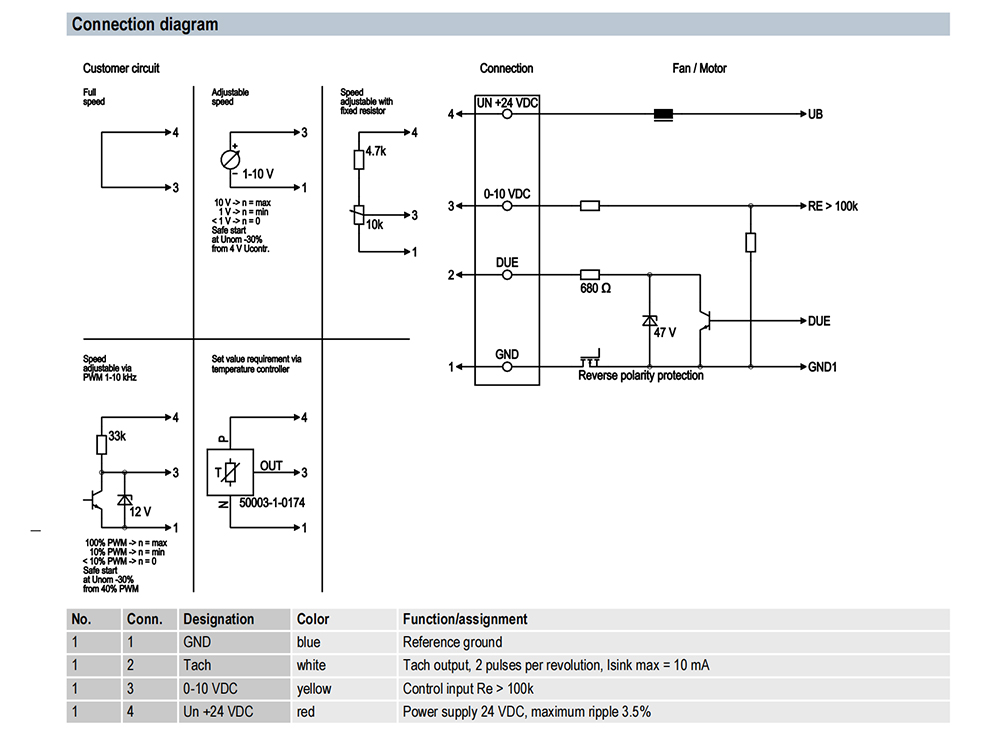

A1: The G1G108-AB17-02 operates on a 24 V DC supply, making it suitable for low-voltage systems where safety and energy efficiency are priorities. It features multiple control options, including a 0–10 VDC analog input and PWM control, enabling precise airflow regulation. These control methods allow the fan to adapt to varying system demands, helping reduce energy consumption, noise levels, and wear on components.
Q2: How does the G1G108-AB17-02 handle continuous operation?
A2: Designed for S1 continuous duty, the G1G108-AB17-02 can run for extended periods without interruption. Ball bearing construction ensures smooth, low-friction rotation, while integrated electronics provide protections such as motor current limiting and locked-rotor protection. This combination makes it highly reliable for applications that require constant airflow.
Q3: What materials are used in the construction of the G1G108-AB17-02, and why?
A3: This model uses a die-cast aluminum housing and electronics enclosure for durability and heat dissipation, along with a hot-galvanized steel impeller for corrosion resistance. These materials are chosen for their mechanical strength and ability to withstand industrial environments while keeping the unit’s weight at just 1.4 kg.
Q4: What environmental conditions can the G1G108-AB17-02 withstand?
A4: The fan can operate in environments with ambient temperatures between -40°C and +80°C (transport/storage range). This makes it suitable for both cold and warm climates. However, with an IP22 protection rating, it should be installed in dry, protected areas to prevent water ingress.
Q5: What built-in safety and EMC compliance features does the G1G108-AB17-02 offer?
A5: The fan includes reverse polarity protection, locked-rotor protection, and motor current limiting to prevent damage during electrical faults or abnormal operation. It meets EN 61000-6-3 for household EMC emission and EN 61000-6-2 for industrial immunity, ensuring reliable operation without causing interference to other equipment.
