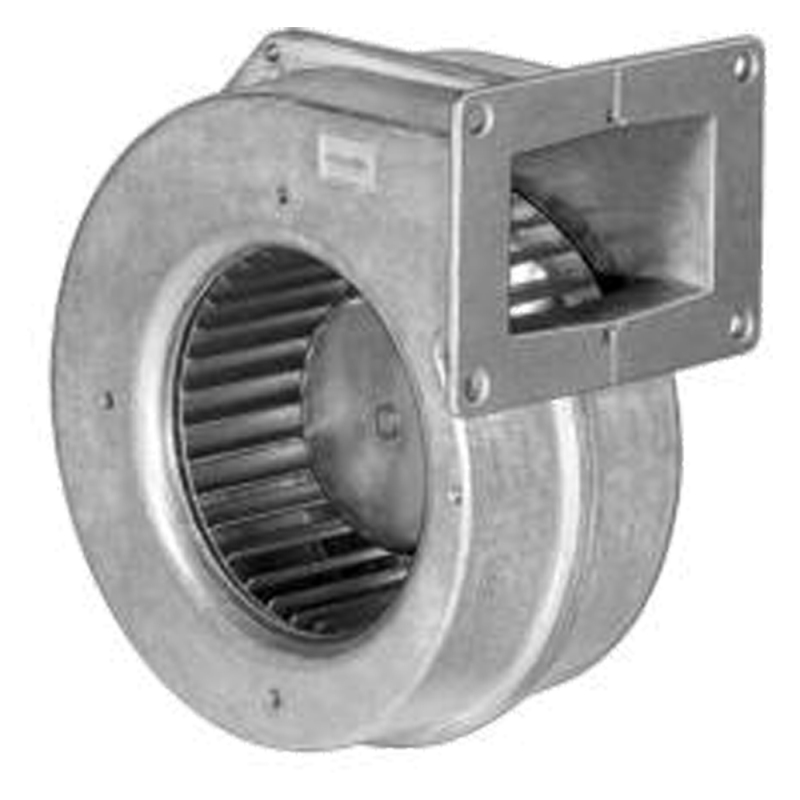

EC centrifugal fan, forward curved, single inlet with housing (flange)
| Brand： | ebm-papst |
| Part No： | G1G120-AB67-02 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 24 |

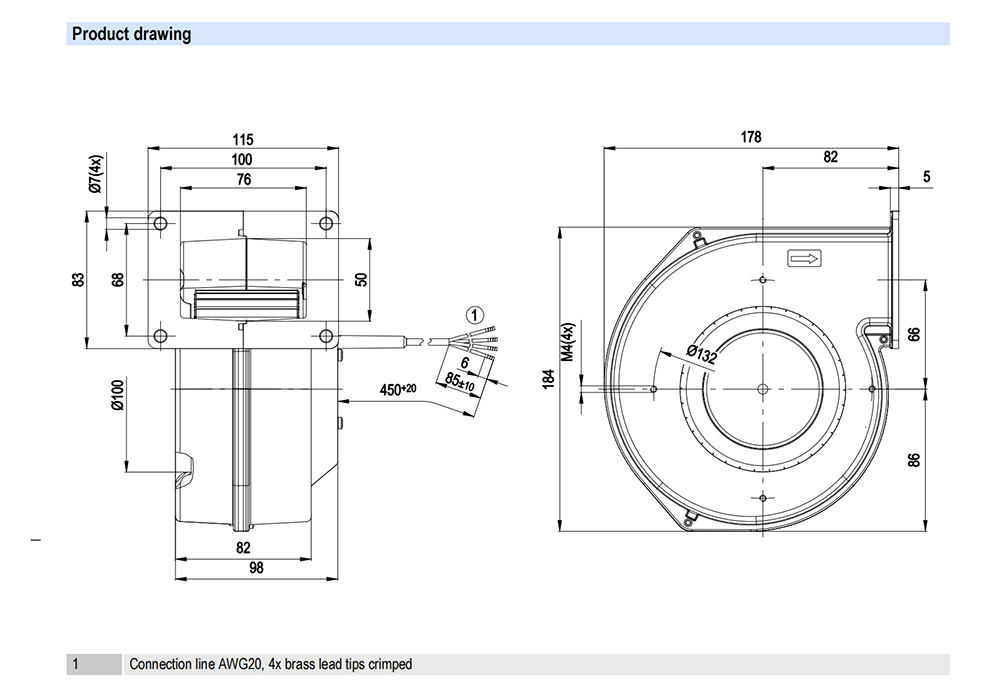

| Size(mm)： | 120 |

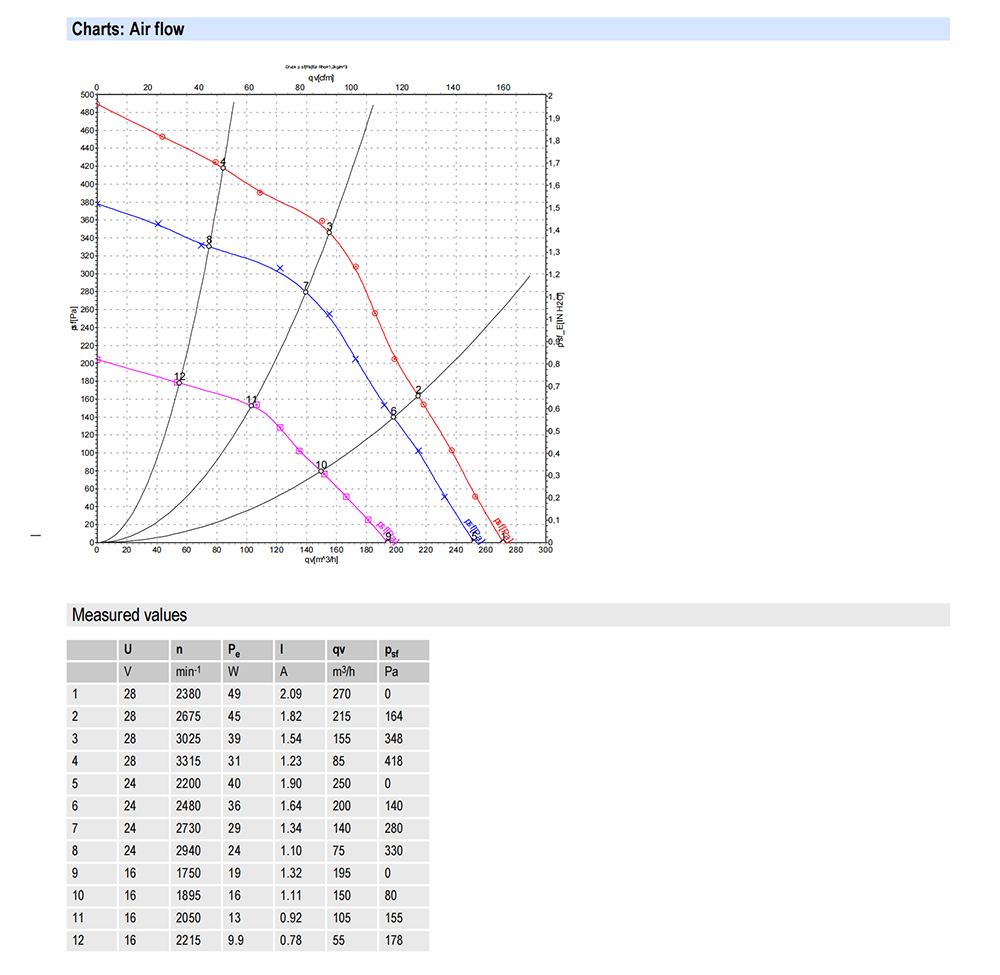

| Max.Air Flow(m³/h)： | 255 |
| Max.Pressure(Pa)： | N/A |
| Input Power(W)： | 40 |
| Speed(RPM)： | 2200 |
| Noise(dB)： | 62 |
| Mass: | 1.57 kg |
| Surface of Rotor: | Thick layer passivated |
| Material of Impeller: | Sheet steel, hot-galvanised |
| Housing Material: | Die-cast aluminium |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 22 |
| Insulation Class: | "B" |
| Humidity Class: | F0 |
| Max. Permissible Ambient Motor Temp. (Transp./Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |

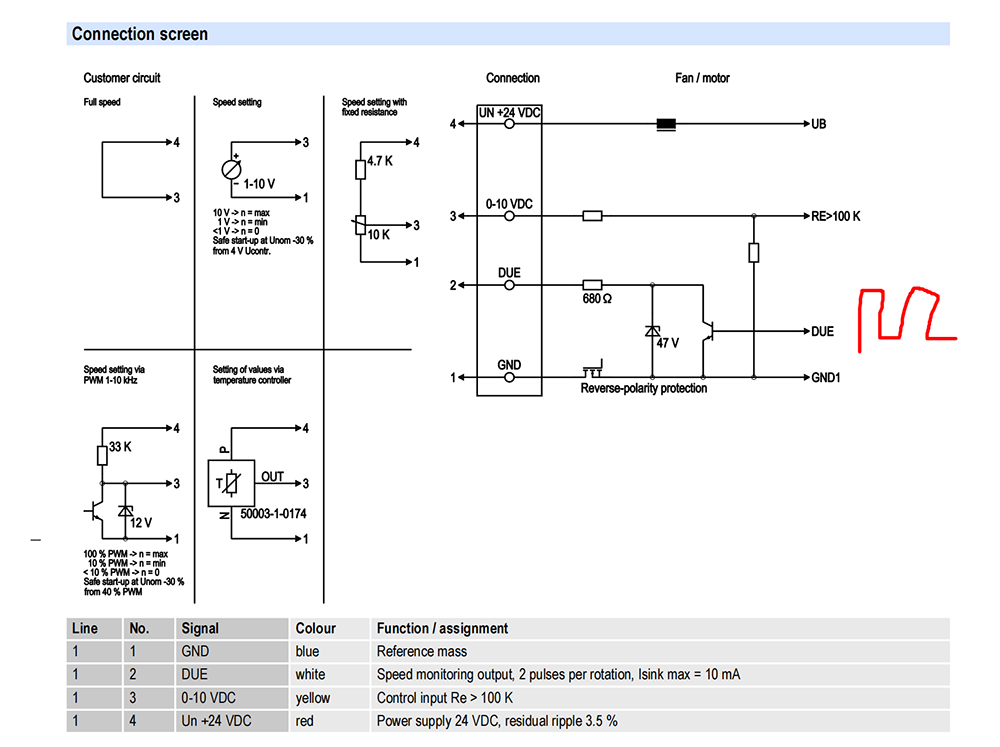

| Technical Features: | - Control input 0-10 VDC / PWM - Tach output - Motor current limit - Soft start |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment) |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Cable Exit: | Axial |
| Product Conforming to Standard: | EN 60950-1 |
| Approval: | UL 1004-1; CSA C22.2 Nr.77 |
