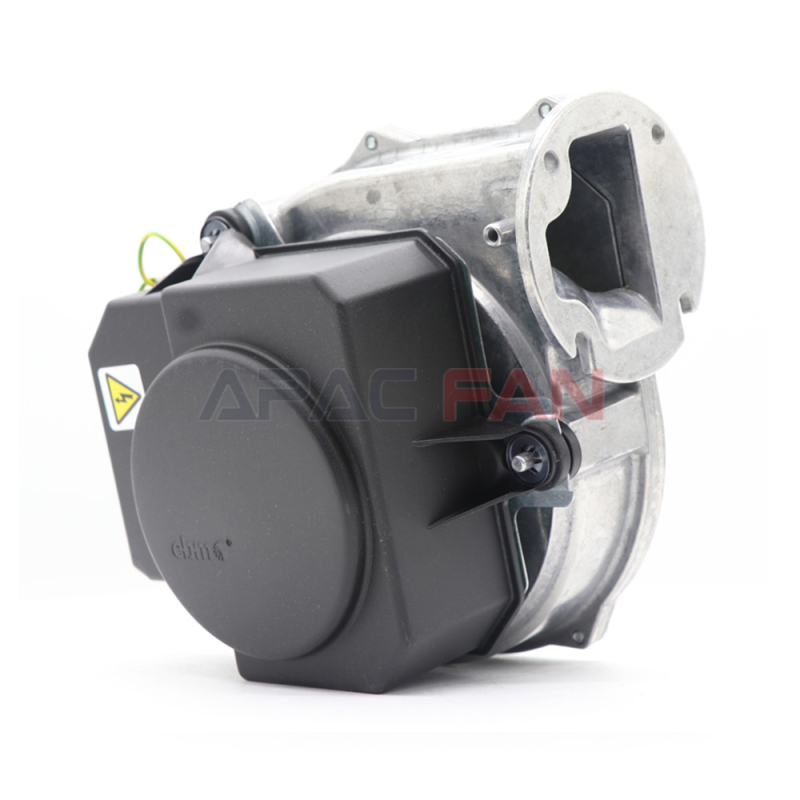

Ebm-papst G1G126-AA49-70 centrifugal fan: parameter adaptation and multi-dimensional application expansion in industrial scenarios

In the ventilation solution of industrial equipment, the ebm-papst G1G126-AA49-70 centrifugal fan has become the key link between equipment performance and actual needs with its precise parameter configuration and flexible scenario adaptability. Its core parameters (rated voltage 230V, size 126mm, input power 75W, speed 5000rpm) are not randomly set, but are based on the deep optimization of aerodynamic principles and industrial engineering practice. This article will focus on the design logic behind the parameters, the expansion boundaries of application scenarios and industry adaptation strategies, and fully present the diverse value of this fan in the industrial field.

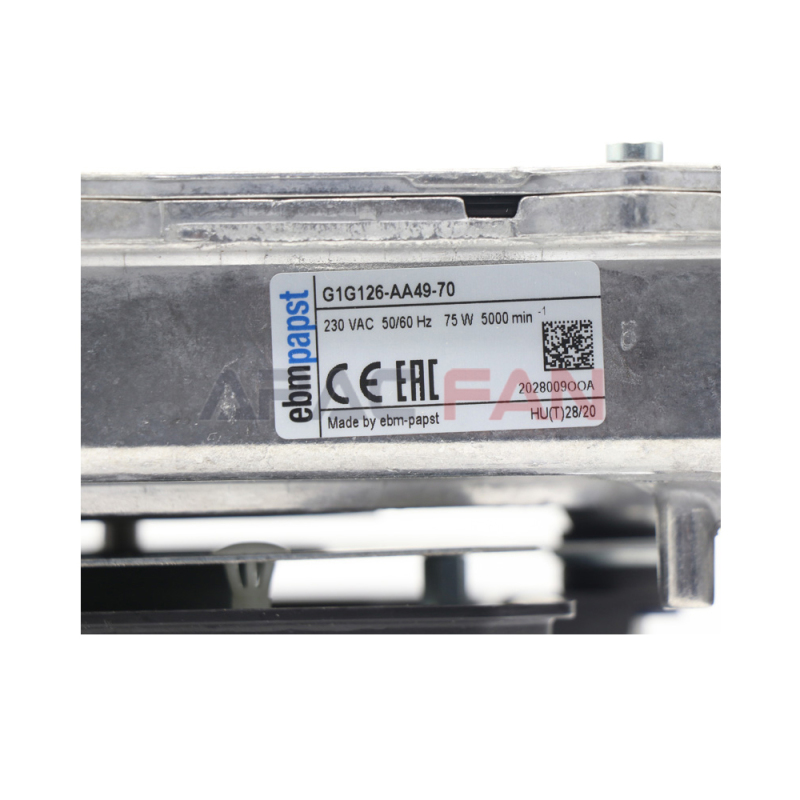

1. Parameter analysis: "Precise portrait" of industrial scenarios

The parameter system of ebm-papst G1G126-AA49-70 can be regarded as the "standard solution" for industrial ventilation needs, and each value points to a specific engineering goal:

126mm size: the "golden ratio" of compact space

This size usually corresponds to the outer diameter of the impeller or the mounting flange diameter, which is highly matched with the inner diameter of the DN125 standard pipe. It can be directly connected to the common ventilation duct system to reduce the energy loss of the variable diameter parts. In the automation control cabinet, the 126mm diameter can be embedded in the cabinet side panel with a depth of ≤150mm, and the installation space utilization rate is increased by more than 30%. For scenarios where multiple fans need to be installed in parallel (such as distributed cooling of large equipment), standardized sizes can simplify layout design and reduce installation complexity.

5000rpm speed: the "balance point" of wind pressure and energy efficiency

The speed directly determines the wind pressure output capacity of the fan. According to the performance formula of centrifugal fans, at a speed of 5000rpm, the impeller circumferential speed can reach 33m/s, and the theoretical wind pressure is about 1100Pa (air density 1.2kg/m³), which is enough to overcome the resistance along the 8-10 meter pipeline (about 100-150Pa/m) and local resistance (such as elbows and valves). Actual measured data shows that in a pipeline with a length of 10 meters and a diameter of 100mm, the fan can maintain stable airflow delivery, which is suitable for more than 90% of conventional industrial ventilation scenarios. At the same time, the high speed characteristic enables it to respond quickly to sudden heat dissipation needs (such as the equipment startup phase), and an effective airflow channel can be established within 10 seconds.

75W input power: low-consumption and high-efficiency "industrial-grade energy efficiency"

Among similar centrifugal fans, 75W power to achieve 5000rpm speed belongs to the high-efficiency range. Compared with the traditional 100W/4500rpm model, its air volume output per unit power consumption is increased by about 15%, which is especially suitable for intermittent operation or multi-machine collaboration scenarios. Taking industrial equipment that runs continuously for 24 hours as an example, a single fan can save about 200 kWh of electricity per year. If it is deployed in a cluster (such as 50 fans), the energy saving effect is significant. The low power consumption feature also reduces the requirements for the power supply system, and can be directly connected to the civil-grade power distribution network, reducing the cost of power transformation in industrial scenarios.

230V rated voltage: the "compatibility code" of the global market

The single-phase 230V AC design is suitable for mainstream industrial power grids such as China and Europe, and can also be compatible with 110V systems (such as the North American market) through transformers. This "single voltage and multi-regional applicability" feature eliminates the need for equipment manufacturers to develop exclusive models for different markets, reducing R&D and inventory costs. In multinational projects, the same fan can be directly used in production lines in different regions to simplify the supply chain management process.

2. Core Design: "Engineering Implementation" from Parameters to Performance

ebm-papst transforms parameter advantages into actual performance through three core designs:

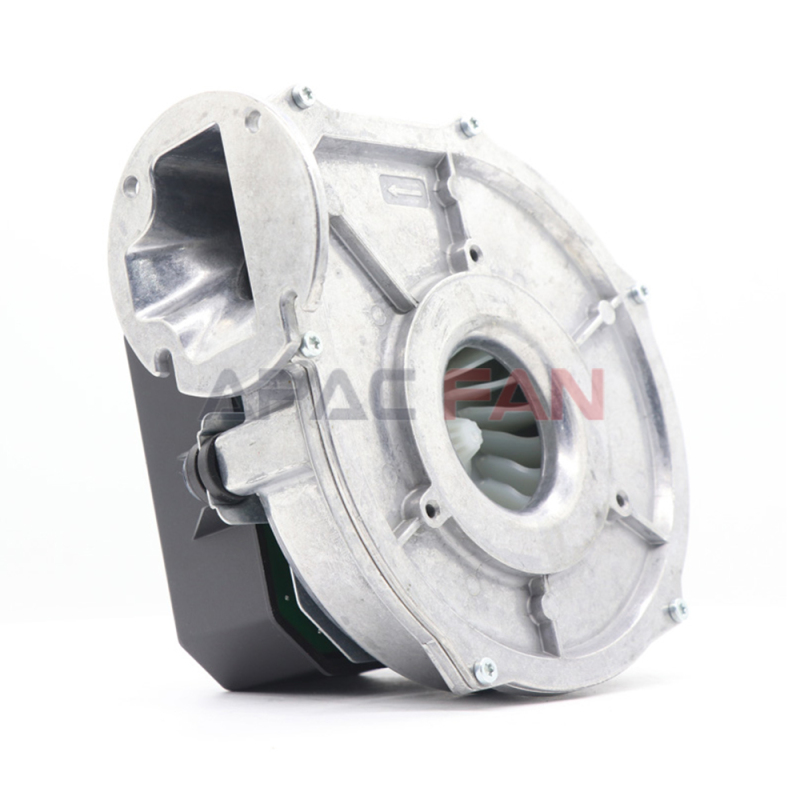

Aerodynamic Optimization of Impeller

Forward-inclined Blade Structure: The forward-inclined design with a blade outlet angle of 65° enables the airflow to obtain a greater radial velocity at the impeller outlet. Compared with the backward-inclined blade, the dynamic pressure is increased by about 50%, which is more suitable for pipeline systems that need to overcome resistance. The blade profile adopts double arc fitting, with a leading edge radius of 8mm and a trailing edge radius of 3mm, which reduces the airflow separation phenomenon and increases the measured aerodynamic efficiency by 8%.

Surface treatment process: The impeller is anodized and nano-coated, and the surface roughness is reduced to Ra≤1.6μm, and the dust adhesion rate is reduced by 70%. In high-dust environments (such as cement and flour industries), the maintenance cycle can be extended to twice that of traditional fans.

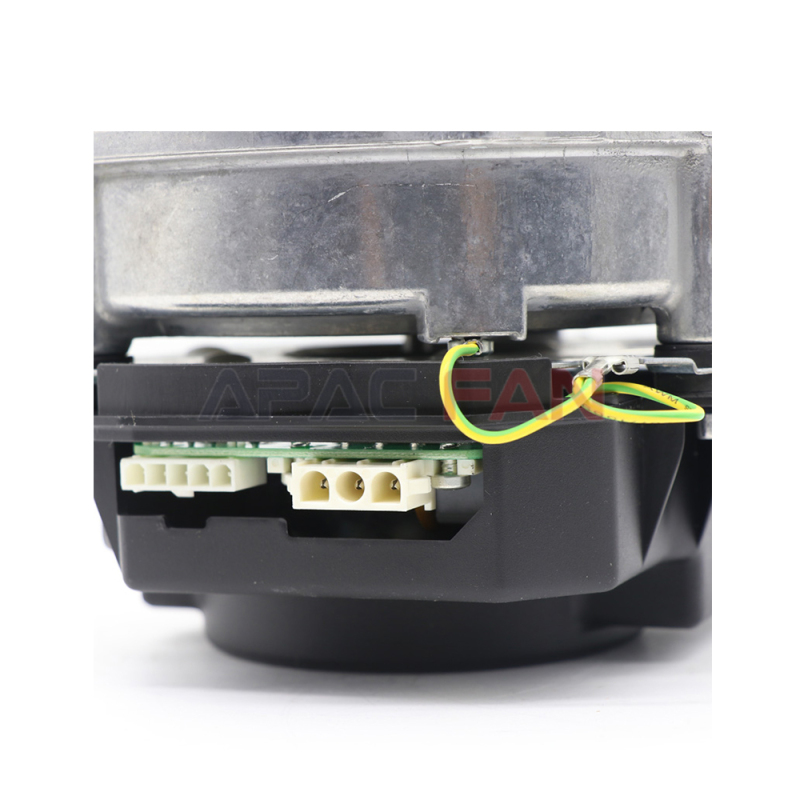

Reliability design of motor

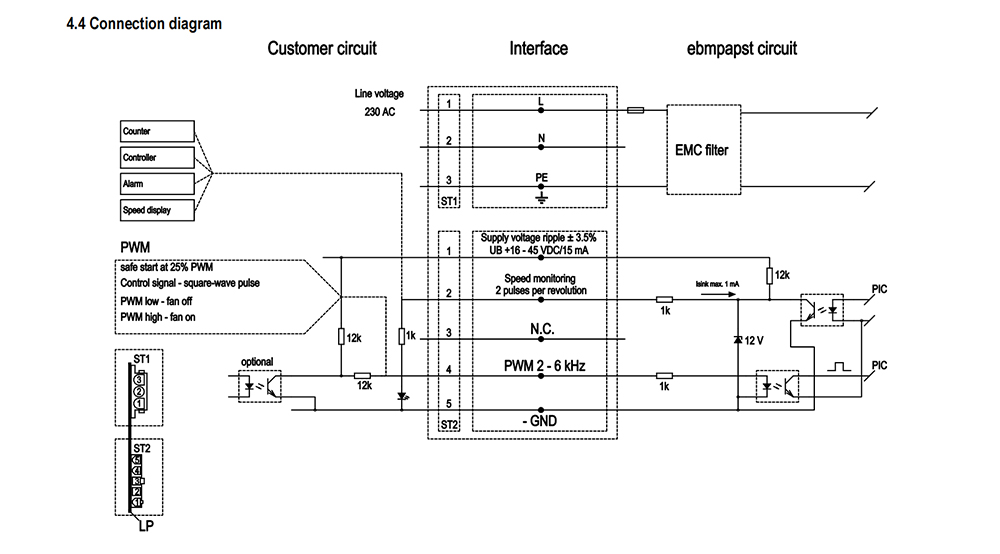

Single-phase asynchronous motor technology: capacitor-operated motor is adopted, and the starting torque is 30% higher than that of shaded-pole motor. It can be started directly under full load to avoid start-stop failures caused by load fluctuations. The motor has a built-in PTC thermistor, which automatically cuts off the power supply when the winding temperature exceeds 130℃ to prevent overheating damage.

Long-life bearing system: 6203-ZZ deep groove ball bearing is adopted, with a maximum speed of 12000rpm (far exceeding the actual operating speed), and KLUBER long-lasting grease is filled inside. The design life is 50,000 hours (25℃ environment), and no daily maintenance is required. The outer ring of the bearing is equipped with an elastic vibration isolation ring, which can absorb more than 80% of high-frequency vibrations and reduce the noise value by 5-8dB.

Environmental adaptability of the structure

Metal shell protection system: The shell is made of 1.5mm thick SPCC cold-rolled steel plate, treated with hot-dip galvanizing (8μm) and epoxy resin spraying (60μm), and the salt spray test can withstand 1000 hours without red rust. It is suitable for environments with humidity ≥85% RH or containing trace corrosive gases.

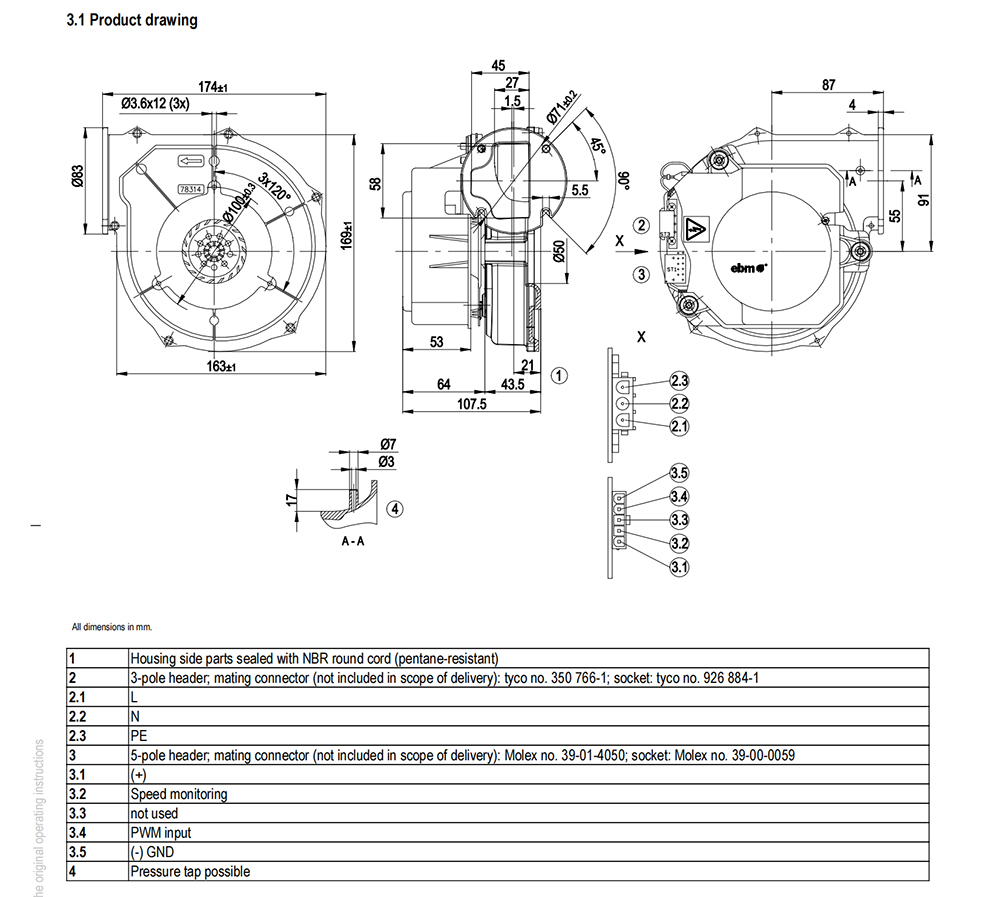

Standardized installation interface: The shell reserves 4 M4 threaded holes, the spacing complies with ISO 9011 standards, and is compatible with more than 90% of industrial brackets. The air inlet can be directly installed with a standard dust screen (aperture ≤2mm), and the air outlet is adapted to a silicone hose with an inner diameter of 126mm. The installation time is shortened by 50% compared with non-standard models.

3. Application scenario expansion: "full scenario coverage" in the industrial field

The parameter characteristics of G1G126-AA49-70 make it a "universal player" in industrial scenarios. The following analyzes its application potential from six major industries:

(I) Electronics and semiconductor industry: "temperature control expert" in precision environment

Application scenarios: SMT placement machine cooling, semiconductor packaging equipment heat dissipation, communication base station AAU module

Adaptation logic:

The high speed of 5000rpm forms a directional airflow, which can reduce the chip junction temperature by 15℃ within 10 seconds, meeting the strict requirements of semiconductor components for heat dissipation response speed;

The anti-static design of the metal shell (surface resistance ≤10⁹Ω) avoids electrostatic adsorption of dust and is suitable for Class 1000 clean workshops;

The 75W low power consumption characteristic reduces the overall energy consumption of the cabinet, which is in line with the "carbon neutrality" trend of data centers.

Typical case: In the RF unit of a 5G base station, the fan is installed directly above the power amplifier chip, and the hot air is discharged radially through centrifugal force. With the heat pipe radiator, the chip operating temperature is stabilized below 70°C, and the bit error rate is less than 1×10⁻⁶.

(II) Food and pharmaceutical industry: "Compliance pioneer" of sanitary environment

Application scenarios: hot air circulation of baking equipment, negative pressure exhaust of pharmaceutical workshop, medical fume hood

Adaptation logic:

The smooth surface design of the impeller and the shell (Ra≤0.8μm) reduces bacterial adhesion and meets FDA, GMP and other hygiene standards;

Stainless steel material (optional 304L) and food-grade coating meet the safety requirements of direct contact with food;

Noise ≤65dB (A-weighted) meets the quiet requirements of laboratories and operating rooms.

Typical case: In a tunnel oven of a baking production line, the fan blows hot air to the baking tray at a 45° angle, and the conveyor belt movement forms 360° uniform heating, shortening the bread baking time by 20%, and improving the color uniformity of the surface to more than 95%.

(III) New energy and environmental protection industry: "endurance strong" in high-load scenarios

Application scenarios: drying of lithium battery coating workshop, thermal management of energy storage equipment, exhaust gas treatment and ventilation

Adaptation logic:

High-temperature resistant motors (insulation grade F) can operate for a long time in 80℃ airflow to meet the high temperature environment requirements of battery production workshops;

High wind pressure characteristics (measured static pressure ≥1500Pa) overcome the resistance of activated carbon filter tanks and ensure the efficiency of exhaust gas treatment;

Compact size adapts to the narrow space of energy storage battery cabinets, forming an efficient heat dissipation channel of "bottom in and top out".

Typical case: In a certain energy storage system, multiple fans are installed in parallel on the side of the battery cabinet, and the speed linkage is achieved through frequency conversion control. When the battery pack temperature exceeds 45℃, the speed is automatically increased to 5000rpm, and the temperature is reduced to the safe range of 35℃ within 15 minutes.

(IV) Machinery and Automation Industry: "Reliable Partner" for Complex Working Conditions

Application Scenarios: CNC Machine Tool Spindle Cooling, Automation Production Line Control Cabinet, Logistics Sorting Equipment Dust Removal

Adaptation Logic:

Anti-vibration design (vibration amplitude ≤ 1.8mm/s) adapts to the high-frequency vibration environment during machine tool processing;

The dust-proof structure reduces the intrusion of cutting fluid mist and metal debris, extending the life of the bearing;

The standardized installation interface supports plug-and-play and shortens the equipment transformation cycle.

Typical case: In the PLC control cabinet of a certain automotive parts production line, the fan is installed on the top of the cabinet, and the heat generated by the inverter is quickly discharged through centrifugal airflow. The temperature in the cabinet can be controlled below 40℃ during the high temperature period in summer to ensure the stable operation of the control system.

(V) Chemical and spraying industry: "Protection model" for corrosive environment

Application scenarios: acid waste gas treatment, spraying workshop exhaust, chemical reactor ventilation

Adaptation logic:

Epoxy resin spray shell can withstand corrosive gases of pH 2-12, and the salt spray test has passed 1000 hours certification;

The fully sealed motor prevents the intrusion of corrosive media and extends the life of electrical components;

The high speed characteristics quickly discharge flammable and explosive gases and reduce safety risks.

Typical case: In the exhaust gas treatment system of a spraying workshop, the fan sends the exhaust gas containing VOCs into the catalytic combustion device at a flow rate of 10m/s. With the high-efficiency filter, the exhaust gas purification efficiency reaches more than 92%, meeting the environmental emission requirements.

(VI) HVAC&R industry: "all-round player" in general scenarios

Application scenarios: commercial air conditioning fan coil, cold storage defrosting ventilation, data center precision air conditioning

Adaptation logic:

75W low power consumption meets commercial building energy-saving specifications (such as LEED certification);

The forward-inclined impeller generates 800Pa static pressure, overcomes the resistance of the air conditioning duct, and the air volume reaches 300m³/h;

The low temperature resistant design (-10℃ start-up) is suitable for the low temperature environment of the cold storage defrosting cycle.

Typical case: In the inter-row air conditioning of a data center, the fan is embedded in the top of the rack, and the hot air exhausted by the server is quickly introduced into the return air channel through the centrifugal airflow. With the help of the chiller, the cabinet inlet air temperature is stabilized at 22±2℃.

4. 4. System integration strategy: "cooperative optimization" from single machine to cluster

Multi-machine parallel design

In scenarios where large air volume is required, multiple fans can be connected in parallel. For example, in a large warehouse ventilation system, 8 fans are installed in two rows in parallel. The speed is controlled by a unified voltage regulator, and the total air volume can reach 2400m³/h. At the same time, the impact on the power grid is reduced by starting at off-peak hours.

Frequency conversion speed regulation application

After connecting to the frequency converter, the fan speed can be adjusted within the range of 2000-5000rpm to achieve "air supply on demand". In the cooling process of food processing, the temperature is quickly reduced at 5000rpm in the early stage, and the air flow circulation is maintained at 3000rpm in the later stage, reducing energy consumption by more than 40%.

Pipeline resistance matching

When the pipeline resistance is greater than the design value (such as the pipeline length exceeds 15 meters), it can be optimized in the following ways:

Increase the pipeline diameter (such as upgrading from DN100 to DN125) to reduce the resistance along the way;

Reduce 90° elbows and use 45° elbows or slow-bend pipelines to reduce local resistance;

Use the "fan + booster box" combination, add auxiliary fans at the end of the pipeline, and overcome resistance in sections.

5. 5. Maintenance and reliability: "long-term guarantee" for industrial scenarios

Preventive maintenance system

Daily inspection: Daily inspection of fan operation noise and vibration, and timely shutdown and investigation when abnormalities are found;

Regular cleaning: Use compressed air to clean the dust on the impeller and casing every quarter, and once a month in high dust environments;

Annual inspection: Measure the motor insulation resistance (≥2MΩ) and bearing operating temperature (≤70℃) every year to ensure stable performance.

Troubleshooting Guide

Fault phenomenon Possible cause Solution

Insufficient air volume Pipeline blockage / impeller dust Clean foreign objects in the pipe / clean impeller

Abnormal noise Impeller rubs against the volute / bearing wear Adjust the installation clearance / replace the bearing

Motor overheating Poor heat dissipation / voltage fluctuation Clean the heat dissipation ribs / check the power supply system

Vibration intensifies Loose screws / dynamic balance failure Tighten screws / return to the factory for re-dynamic balance

Life cycle management

The fan is designed to have a lifespan of 50,000 hours and can be used for more than 8 years in a typical industrial scenario (running 16 hours a day). By establishing a maintenance file and recording the time and data of each cleaning and inspection, the maintenance plan can be further optimized and the service life of the equipment can be extended.

Summary: "Scenario Translator" of Industrial Parameters

The value of the ebm-papst G1G126-AA49-70 centrifugal fan lies in converting abstract parameters into specific industrial solutions: 126mm is the answer to space limitations, 5000rpm is the response to wind pressure requirements, 75W is the answer to energy efficiency standards, and 230V is the universal solution for the global market. From precision temperature control in electronic manufacturing to corrosion protection in the chemical industry, from hygienic compliance in food processing to high-load challenges in the new energy field, it responds to "ever-changing" scenario requirements with "unchanged" parameter configurations, becoming a "parameter translator" in the industrial field.

For equipment manufacturers, choosing this fan means getting a "plug-and-play" standardized component, reducing R&D trial and error costs; for end users, it is a low-cost, high-efficiency, reliable and durable ventilation partner, without the need to invest additional resources in complex environments. Through this product, ebm-papst proves that the competitiveness of industrial equipment often lies in the precise matching of parameters and scenarios - it is not about pursuing a breakthrough in absolute performance, but about finding the applicable scenario for each parameter and providing a corresponding parameter solution for each scenario. This philosophy of "precise adaptation" is the essence of industrial design and the core code for the widespread application of this fan in the global industrial market.
