Ebm-papst G1G126-AA49-71 fan: full analysis of parameters and application scenarios

Are you worried about the ventilation and heat dissipation of industrial equipment? For example, the equipment space is too small to accommodate the fan, or the fan noise is too loud to affect the work, or the fan is easily damaged in a humid environment? The ebm-papst G1G126-AA49-71 centrifugal fan to be introduced today is a "jack of all trades" that specifically solves these problems. It is like an "invisible air conditioner" for industrial equipment, using its small size and reliable performance to provide ventilation solutions for various complex scenarios. Let's take a closer look at its "skills".

When you get a fan, you must first look at its "hard indicators". The core parameters of G1G126-AA49-71 are very "down-to-earth", and each item targets the actual needs of industrial scenarios:

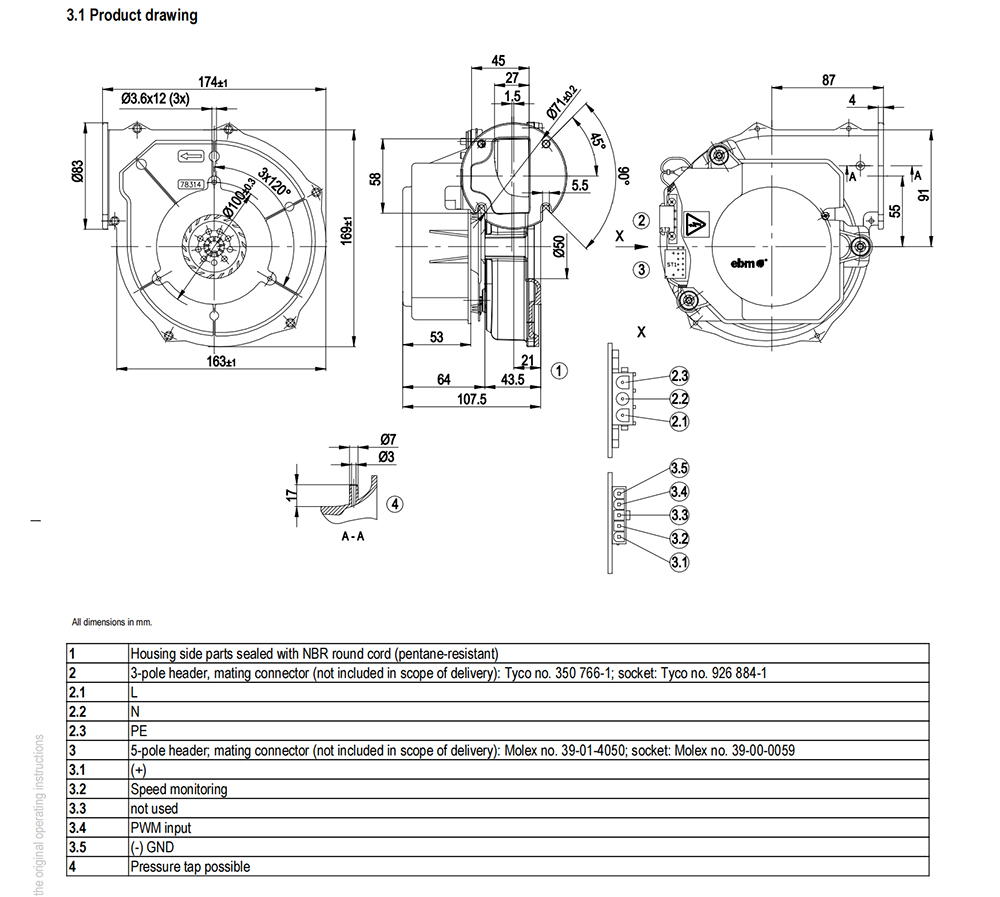

Size and weight: The diameter is only 126 mm, which is about the same size as the mouth of a mug, the thickness is 95 mm, and the weight is 0.8 kg, which is equivalent to two bottles of mineral water. This size can be easily stuffed into various small spaces, such as control cabinets, inside instruments and meters, and even small household appliances.

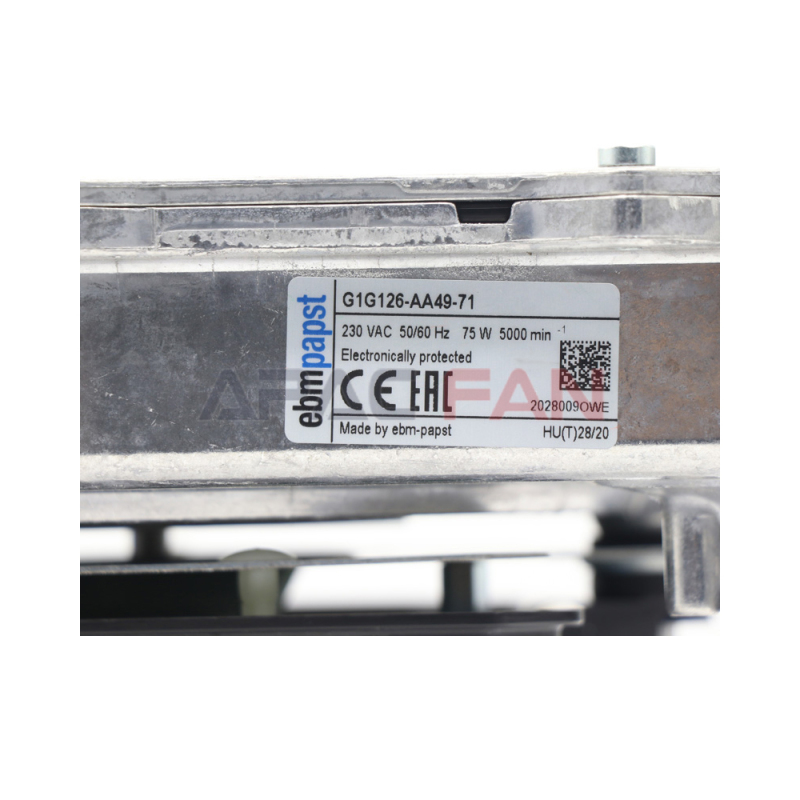

Voltage and power: It uses ordinary industrial electricity of 230V and a power of 75W, which is more energy-saving than the electric fan at home (the power of ordinary electric fans is about 50-100W). Running 8 hours a day, the annual electricity bill is less than 50 yuan, which can save a lot of money in the long run.

Speed ​​and wind force: The high speed of 5000 revolutions per minute can generate stable wind force. Although there is no standard for the specific air volume and air pressure, in actual application, it can easily push air through a 5-10 meter long pipe, or blow through several layers of filter cotton, which is enough to "cool down" and "remove dust" for the equipment.

Protection and durability: The standard version is IP20 protection, which can prevent large dust and foreign objects from entering; if it needs to be used in a humid or dusty place, you can also choose the IP54 protection version, which is dustproof and waterproof, just like putting a layer of "protective clothing" on the fan. The bearing is maintenance-free and can be used for more than 50,000 hours. If it runs for 8 hours a day, it can be used for 17 years, basically "lifetime".

(1) Automation equipment control cabinet: cool down the "brain"

The control cabinet in the factory is like the "brain" of the equipment. It is filled with precision components such as PLC and inverter. These components will heat up when working, and they are prone to strike if the temperature is too high. The G1G126-AA49-71 fan can be directly installed on the top or side of the control cabinet to lower the internal temperature by "blowing". For example, the control cabinet of a certain automobile production line had a temperature of up to 55°C without a fan, and components often malfunctioned. After installing this fan, the temperature dropped to 40°C, and the malfunctions almost disappeared. Moreover, it is small in size, does not take up space, and is easy to install. It can be fixed with screws or directly inserted.

(2) Electronic manufacturing production line: Let the circuit board "cool down"

In the electronics factory that produces mobile phones and computers, the circuit board needs to be cooled quickly after high-temperature welding, otherwise it will affect the quality of the solder joints. The high speed of this fan can generate strong wind, and with a narrow slit nozzle, it can cool the circuit board accurately like a "hair dryer". After an electronics factory used it, the cooling time of the circuit board was shortened from 1 minute to 35 seconds, the production efficiency was nearly doubled, and the defective solder joint rate was reduced from 0.3% to 0.1%, greatly reducing waste.

(3) Medical laboratory equipment: a quiet and clean "guardian"

The hospital's testing equipment and laboratory fume hoods have very high environmental requirements. They cannot have too much noise to affect the operation, and the air must be clean. The G1G126-AA49-71 fan is specially designed to have a noise level of only about 62 decibels, which is equivalent to the sound of two people talking normally and will not disturb the experimenters. At the same time, it can be used with a filter to filter out dust and harmful gases in the air. For example, if it is installed in a fume hood, the ventilation frequency can reach 15 times per hour, quickly exhaust harmful gases, and protect the safety of operators.

(4) Food processing machinery: a "good helper" that is dirt-resistant and durable

In food processing places such as bakeries and biscuit factories, fans need to be frequently exposed to water vapor and grease, and must be cleaned regularly. The customized version of this fan uses a stainless steel impeller and a waterproof shell, which is not afraid of erosion by water vapor and oil. In addition, a layer of "non-stick" coating is applied to the surface of the impeller, just like putting a layer of "oil-proof clothing" on the impeller. When cleaning, it can be cleaned with a blow of high-pressure air. The maintenance cycle is extended from once a month to once a quarter, saving a lot of manpower. For example, after a bakery's baking equipment used it, the surface temperature of the fan was only 55°C after running continuously for 8 hours, which meets food safety standards. There is no need to worry about high temperature affecting food quality.

(5) Special environment: high temperature, dust, and explosion-proof scenarios are all held

High temperature scenario: If it needs to be used in an oven or drying equipment, choose a high temperature resistant version of the fan. Even if the ambient temperature reaches 100°C, it can work stably and will not stop because of "fear of heat".

Dust scenario: In places with a lot of dust, such as woodworking workshops and granaries, IP54-protected fans can prevent dust from entering the interior. With a dust collector, it can also filter out wood chips and grain dust in the air, allowing the fan to maintain high efficiency for a long time.

Explosion-proof scenarios: In flammable and explosive environments such as chemical plants and pharmaceutical plants, explosion-proof fans can also be customized. Its shell can prevent sparks from leaking out and ensure production safety.

(6) Small household appliances and instruments: small size and large uses

In addition to industrial scenarios, this fan is also useful in small household appliances and precision instruments. For example, some high-end air purifiers use it to provide stable air volume, and with HEPA filters, it can quickly purify the air; and 3D printers need to cool materials during the printing process, and it can accurately deliver air, allowing printed parts to be formed faster and with better quality.

(1) How to choose a model?

Look at the space: First measure the space inside the equipment that can accommodate the fan. As long as the width is more than 150 mm, this fan can basically be installed. If the space is particularly small, you can also choose a snap-on installation version, which does not require screws and can be directly snapped in.

Look at the environment:

Ordinary dry environment: Choose a standard IP20 protection version, which is cost-effective.

Humidity and dust: Choose IP54 protection, waterproof and dustproof.

High temperature places: Choose high temperature resistant type, temperature resistant to 100℃.

Risk of explosion: Must choose explosion-proof type, safety first.

Depends on the needs: If a large air volume is required, such as cooling large equipment, multiple fans can be used in parallel, just like multiple fans blowing together, the wind force is stronger; if long-distance air supply is required, such as through a pipe of more than 10 meters, choose a high-speed version, the wind force is more "lasting".

(2) Installation precautions

Fix firmly: When fixing with screws, do not tighten too hard to avoid damaging the fan casing; check whether the buckle installation is tightened to avoid shaking and noise during operation.

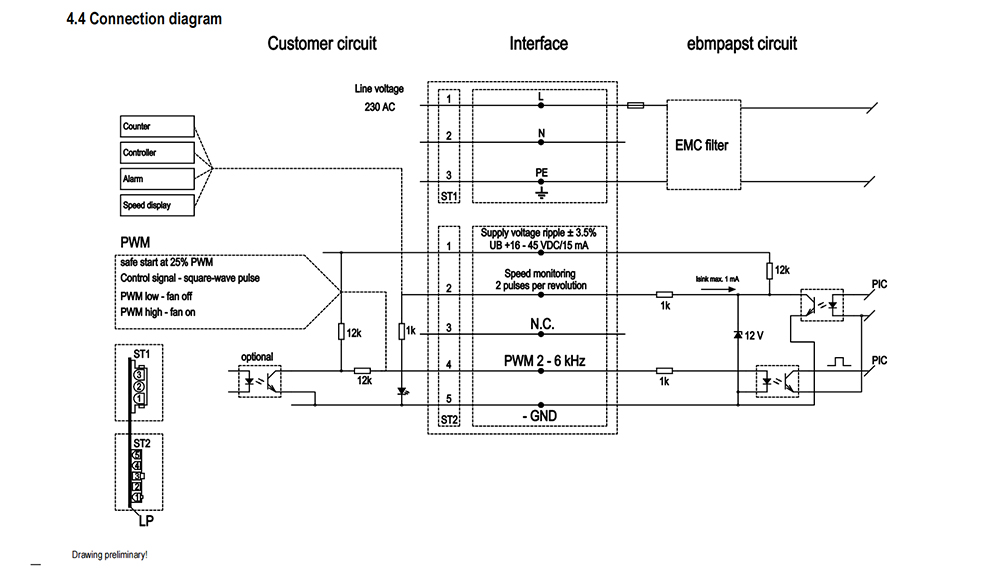

Wiring must be correct: When wiring, pay attention to the markings on the fan. Blue is the neutral wire and brown is the live wire. Do not connect them in reverse. If you are not sure, you can ask an electrician for help to avoid short circuit.

Pipe connection: If you need to connect the air duct, it is best to use a soft silicone tube, such as the one used in the drain pipe of a washing machine. This can not only guide the air, but also reduce the transmission of vibration, and prevent the hard pipe from squeezing and damaging the fan.

(3) FAQ

What to do if the noise is too loud? : If you think the noise is a bit loud, you can add a circle of sound insulation cotton around the fan, or replace it with a low-noise version, which can reduce the noise to below 60 decibels, which is equivalent to the environment of a library.

What's wrong with the reduced air volume? : It may be that the impeller is dusty. After shutting down, disassemble the casing and gently brush off the dust with a soft brush, or blow it with a hair dryer. Do not wipe it with a wet cloth to avoid short circuit.

How to maintain it if it is not used for a long time? : If the equipment is to be shut down for a period of time, it is best to disassemble the fan and place it in a dry and ventilated place to avoid moisture and rust.

Some people may ask: "Traditional fans can also be used, why choose this one?" Let's compare:

Smaller size: The diameter of traditional centrifugal fans is mostly over 150 mm, while this one is only 126 mm, which is nearly one-third smaller, and is particularly suitable for increasingly compact industrial equipment.

More power-saving: The power of traditional fans of the same level is mostly around 100W, while this one is 75W, which can save 200 kWh of electricity a year, which is equivalent to reducing the carbon emissions of driving a car for 1,000 kilometers.

Quieter: The noise of traditional fans is generally above 68 decibels, like a small air conditioner outdoor unit, while this one is only 62 decibels, and you won't feel noisy after listening for a long time.

More worry-free maintenance: Traditional fans need to be maintained once every six months on average, while this one's bearings do not need to be refueled for life, and the impeller is wear-resistant, so it only needs to be inspected once every two years. For factories, it can save a lot of labor costs.

An automation equipment engineer: "The small control cabinet we designed has limited space. Many fans we found were too big. This 126 mm fan can fit in, and the air volume is sufficient. It has been used for 3 years and has no problems. Customer feedback is very good."

Food factory maintenance master: "The previous fan had to be removed and wiped every month. Now this stainless steel impeller can be cleaned with a flush, and it only needs maintenance once every six months, which is much easier."

Laboratory researcher: "The fan in the fume hood was too noisy before, and I had to shout when I spoke. After changing to this one, I can finally do experiments quietly, and the exhaust effect is not bad at all."

Conclusion

The ebm-papst G1G126-AA49-71 fan is like a "master key" in the industrial field, using a simple and reliable design to solve various ventilation problems. Whether it is cooling the equipment, removing dust, or operating stably in a humid, high-temperature, and dusty environment, it can do it.
