| Brand： | ebmpapst |
| Part No： | G3G200-GN18-01 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 200 |
| Max.Air Flow(m³/h)： | 1020 |
| Max.Pressure(Pa)： | 2219 |
| Input Power(W)： | 682 |
| Speed(rpm)： | 5700 |
| Noise(db)： | 63 |
Centrifugal fans play a crucial role in the fields of ventilation and air treatment in industry and commerce. As a well-known brand in the industry, ebm-papst's G3G200-GN18-01 centrifugal fan has attracted much attention for its excellent performance and reliable quality. This article will provide a comprehensive and detailed introduction to the fan, covering its various parameters and unique product features, providing users with a comprehensive reference for a deeper understanding of this fan.
（1） Brand and Part Number
ebm-papst is a company with a deep foundation and excellent reputation in the field of wind turbine manufacturing. It is renowned for its innovative technology, exquisite craftsmanship, and strict quality control. As a specific part number, G3G200-GN18-01 accurately identifies the specifications and characteristics of this fan, making it convenient for users to accurately identify and manage during procurement, installation, and maintenance processes.
（2） Fan type
G3G200-GN18-01 belongs to centrifugal fans. The working principle of a centrifugal fan relies on the high-speed rotation of the impeller, which causes air to be thrown from the center of the impeller to the edge under the action of centrifugal force, thereby achieving the transportation of air. This type of fan is suitable for situations that require high pressure and large air volume, and can effectively overcome the resistance of ventilation ducts and equipment, ensuring smooth air circulation.
（1） Rated voltage
The rated voltage of this fan is 230V, a common voltage specification that enables it to be widely used in various industrial and commercial power systems. A stable voltage supply is the foundation for the normal operation of the fan. Users should ensure the stability of the power supply voltage during use to avoid damage to the fan caused by voltage fluctuations.

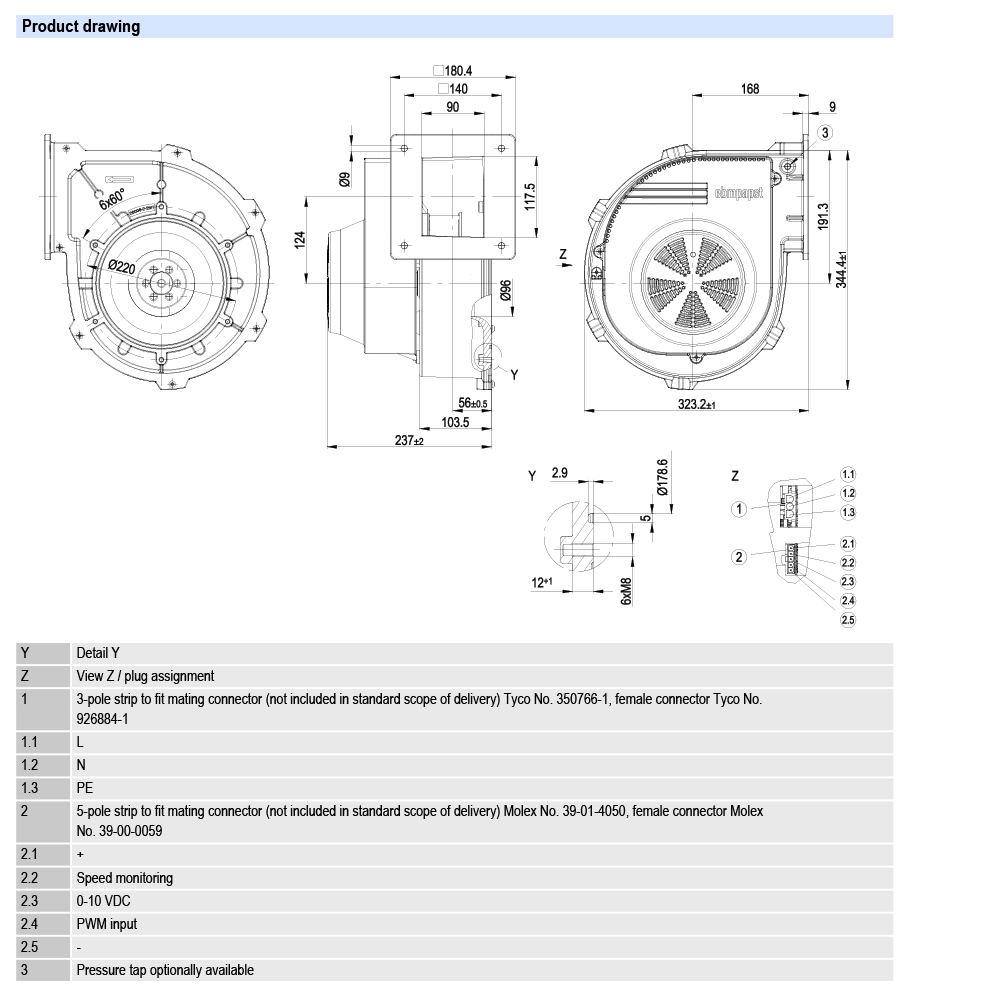

（2） Size
The size of the fan is 200 millimeters, and this relatively compact design allows it to easily adapt even in limited installation space. Whether installed inside industrial equipment or integrated into commercial building ventilation systems, it does not occupy too much space, improving the overall layout rationality of the system.

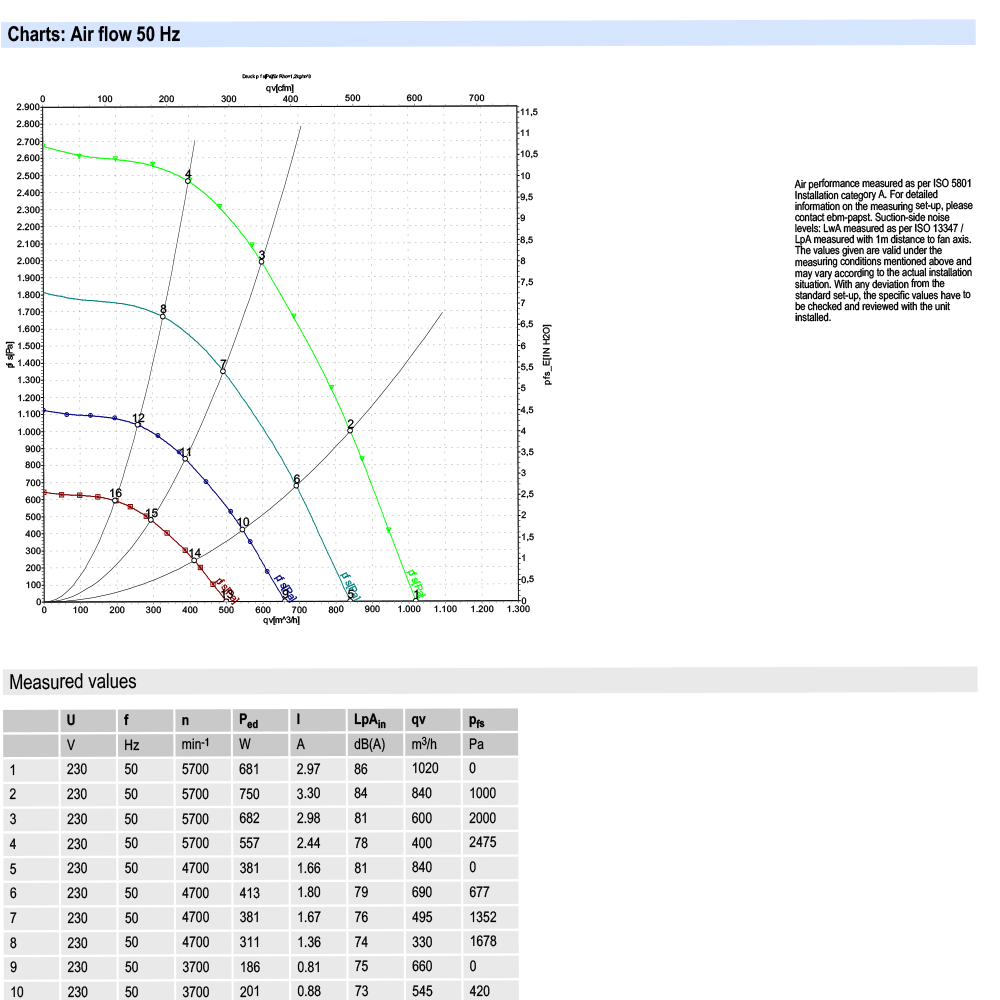

（3） Maximum air volume
The maximum air volume can reach 1020 cubic meters per hour, which enables it to meet various large-scale ventilation needs. In large industrial plants, commercial complexes and other places, this fan can quickly and effectively achieve air replacement and circulation, providing sufficient fresh air for the environment and improving air quality.
（4） Maximum pressure
The maximum pressure is 2219Pa, and the high pressure output capacity enables the fan to overcome the resistance caused by long ventilation ducts, complex air duct systems, and air filtration equipment. Even in environments with complex ventilation conditions, it can ensure the smooth delivery of air to designated locations and ensure the stability of ventilation effects.
（5） Input power
The input power is 682W, which requires a certain amount of electricity consumption while providing high wind volume and high pressure output. However, through advanced design and technological optimization, ebm-papst enables the fan to achieve high energy efficiency during operation, while meeting ventilation needs and minimizing energy consumption, saving users operating costs.
（6） Rotational speed
The speed reaches 5700rpm, and high speed is one of the key factors for achieving high air volume and high pressure output. The stable high speed ensures that the impeller can quickly and effectively push air, improving the working efficiency of the fan. However, at the same time, high speed also puts forward higher requirements for the structural design, material selection, and manufacturing process of fans to ensure their reliability and stability during high-speed operation.
（7） Noise
The noise level is 63dB, which is within a reasonable range among similar fans. During operation, the fan can control noise to a certain extent, reducing interference with the surrounding environment and personnel. This feature makes it suitable for occasions with relatively high noise requirements, such as hospitals, schools, offices, etc.
（1） Efficient aerodynamic design
The G3G200-GN18-01 centrifugal fan adopts advanced aerodynamic design concepts. The shape of the impeller, the angle and number of blades have been carefully optimized to maximize the efficiency of air intake and exhaust. During the operation of the fan, air can smoothly pass through the impeller, reducing the resistance and energy loss of air flow, thereby improving the overall performance of the fan. This efficient design enables the fan to generate greater air volume and pressure under the same power input, achieving effective energy utilization.
（2） High quality materials and exquisite manufacturing techniques
In order to ensure the reliability and durability of the fan, the selection of key components is very strict. The impeller is usually made of high-strength aluminum alloy or stainless steel material, which has good corrosion resistance and mechanical properties, and can withstand the huge centrifugal force and airflow impact generated during high-speed rotation. The casing is made of sturdy steel or engineering plastic, which has good protective performance and can effectively resist external impacts and corrosion. At the same time, exquisite manufacturing techniques ensure the accuracy and assembly quality of each component, reduce vibration and noise during operation, and improve the stability and reliability of the fan.
（3） Reliable motor performance
The fan is equipped with a high-performance motor, which has good starting and speed regulation performance (please consult customer service for specific functions of this product). At startup, the motor can quickly reach its rated speed, ensuring that the fan can be put into operation quickly. The insulation level of the motor is relatively high, and it can operate stably under different environmental temperature and humidity conditions. In addition, the motor is equipped with comprehensive protection devices such as overload protection, overheating protection, etc., which can automatically cut off the power supply in case of abnormal situations, protect other components of the motor and fan from damage, and extend the service life of the fan.
（4） Flexible installation method
Considering the installation needs of different users, G3G200-GN18-01 centrifugal fan provides multiple flexible installation methods. It can be installed horizontally, vertically, or diagonally, and users can choose according to the actual installation space and layout of the ventilation system. Meanwhile, the inlet and outlet directions of the fan can also be adjusted as needed to facilitate connection with different pipeline systems. This flexible installation method enables the fan to better adapt to various complex installation environments, improving its application flexibility and adaptability.
（5） Good compatibility
This fan can be well compatible with various ventilation systems and equipment. It can be used in conjunction with air filters, heat exchangers, ducts, and other equipment to form a complete ventilation and air treatment system. In addition, the fan can also be connected to an intelligent control system (please consult customer service for specific functions of this product) to achieve automated operation and regulation, improving the efficiency and management level of the ventilation system.
（1） Industrial ventilation
In industrial production fields such as steel, chemical, and machinery manufacturing, a large amount of pollutants such as heat, dust, and harmful gases are generated. The G3G200-GN18-01 centrifugal fan can be used in the ventilation system of industrial plants to discharge indoor polluted air and introduce fresh air, improve the working environment, and protect the health of employees. Its high pressure and large air volume characteristics can effectively overcome the resistance of ventilation ducts, ensuring that air can be transported to every corner of the factory building.
（2） Commercial building ventilation
Commercial buildings such as shopping malls, hotels, and office buildings are densely populated and have high requirements for air quality and comfort. This fan can be used in the central air conditioning system, ventilation duct system, and air purification equipment of commercial buildings to provide sufficient fresh air indoors, discharge polluted air, regulate indoor temperature and humidity, and improve indoor comfort. Meanwhile, its relatively low noise level will not cause interference to commercial activities and personnel.
（3） Air purification equipment
In the field of air purification, this fan can serve as the core component of air purification equipment, providing powerful air power for the equipment. It can quickly pass the air through a filter, removing pollutants such as particulate matter and harmful gases from the air, and improving the purification efficiency of the air. Whether it is a household air purifier or an industrial grade air purification equipment, the G3G200-GN18-01 centrifugal fan can play an important role.
（4） Mechanical equipment heat dissipation
For some large mechanical equipment, such as generators, transformers, CNC machine tools, etc., a large amount of heat is generated during operation, and effective heat dissipation measures are needed. This fan can be installed in the cooling system of these devices to quickly dissipate the heat generated by the equipment through forced ventilation, maintaining the normal operating temperature of the equipment and extending its service life.
The ebm-papst G3G200-GN18-01 centrifugal fan has significant advantages in the fields of ventilation and air treatment due to its excellent parameter performance, unique product characteristics, and wide range of applicable scenarios. This fan can provide efficient and reliable solutions for industrial production, commercial buildings, air purification, and mechanical equipment heat dissipation. With the continuous advancement of technology and the increasing demand from users, we believe that the G3G200-GN18-01 centrifugal fan will continue to undergo technological innovation and performance optimization, providing users with better and more efficient services and playing an important role in more application scenarios.
