G1G144-AF49-01 ebm-papst

No.G1G144-AF49-01
SKU:
4.7 (0)
70 Sold
$286.38 $0.00
  • High Pressure Performance
    Delivers 1400Pa pressure with 195m³/h airflow for demanding applications.
  • Full Technical Specifications
    144mm centrifugal fan, 230V, 75W, 4800RPM ensuring powerful output.
  • High-Speed Operation
    Optimized for efficient airflow in restricted systems.
  • Wide Applications
    Ideal for HVAC, industrial ventilation, and air handling units.
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
0 in stock
Save More with Affordable Sea Freight, Talk to Our Experts Today!
Download
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
1/1
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • G1G144-AF49-01 ebm-papst
  • Description
Brand: ebm-papst
Part No: G1G144-AF49-01
Fan Type: Centrifugal Fan
Rated Voltage(V): 230
Size(mm): 144

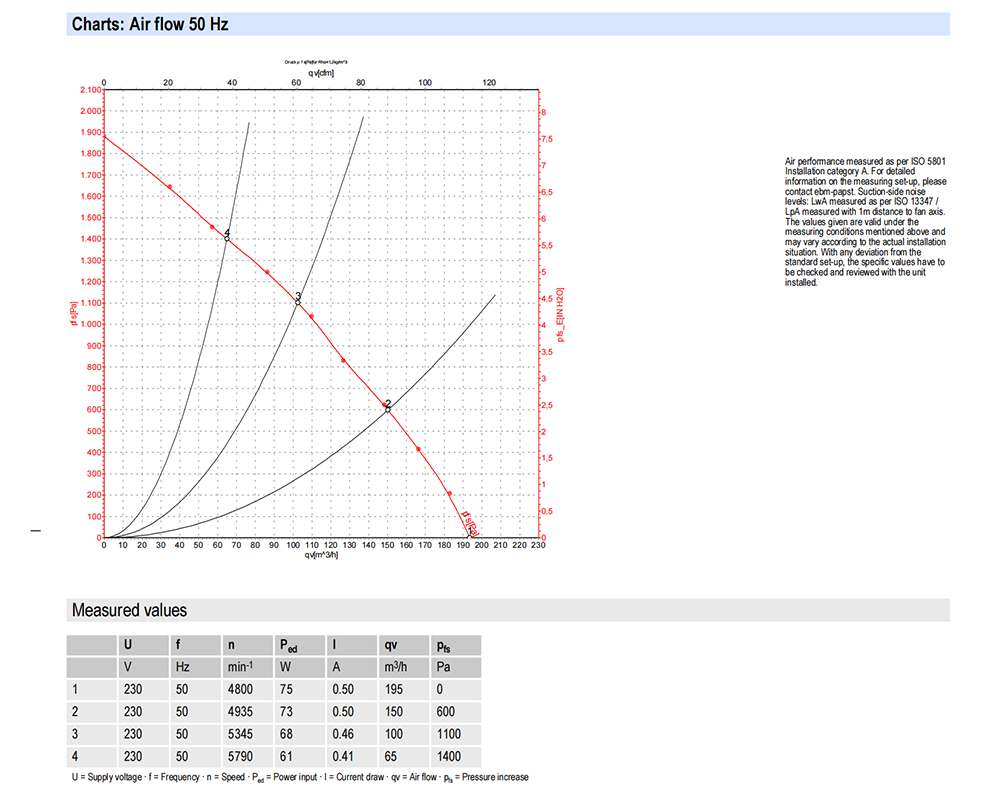

Max.Air Flow(m³/h): 195
Max.Pressure(Pa): 1400
Input Power(W): 75
Speed(rpm): 4800
Mass: 1.6 kg
Surface Of Rotor: Thick layer passivated
Material Of Protective Cover: PP plastic
Material Of Impeller: PA plastic
Housing Material: Die-cast aluminium
Direction Of Rotation: Clockwise, seen on rotor
Type Of Protection: IP 20
Insulation Class: "B"
Max. Permissible Ambient Motor Temp. (Transp./ Storage): + 80 °C
Min. Permissible Ambient Motor Temp. (Transp./Storage): - 40 °C
Mounting Position: Any
Condensate Discharge Holes: None
Operation Mode: S1
Premix: Not suitable for pre-mixture.
Motor Bearing: Ball bearing

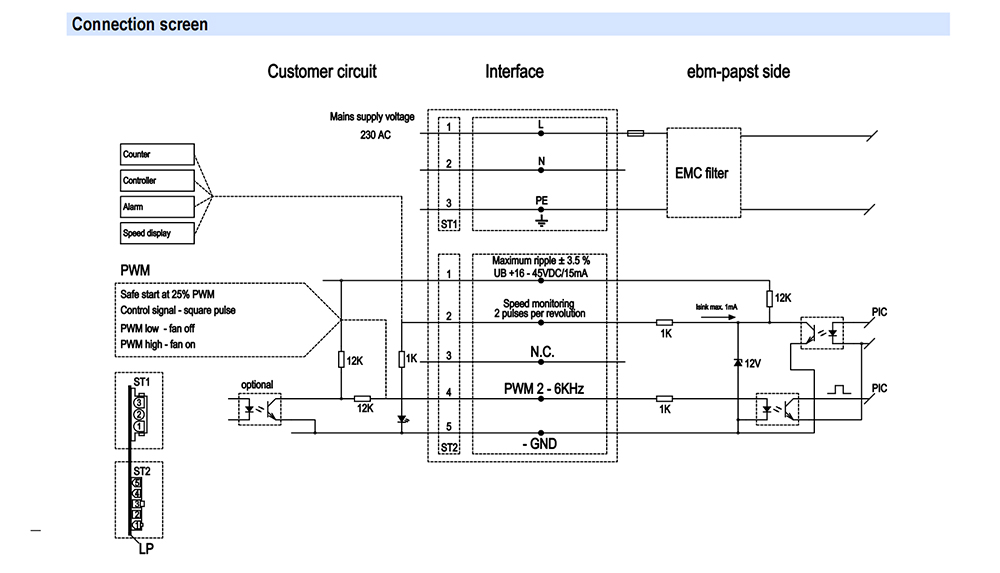

Technical Features: - Tach output
- Motor current limit
- PWM control input
Touch Current Acc. IEC 60990 (Measuring Network Fig. 4, TN System): <= 3.5 mA
Motor Protection: Reverse polarity and locked-rotor protection
Protection Class: I (if protective earth is connected by customer)
Remark: Complete unit must be tested for required approvals.
