| Brand： | ebmpapst |
| Part No： | G1G170-AB53-80 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 170 |
| Max.Air Flow(m³/h)： | 645 |
| Max.Pressure(Pa)： | 2500 |
| Input Power(W)： | 360 |
| Speed(rpm)： | 5830 |
| Noise(db)： | N/A |
Brand heritage and product positioning

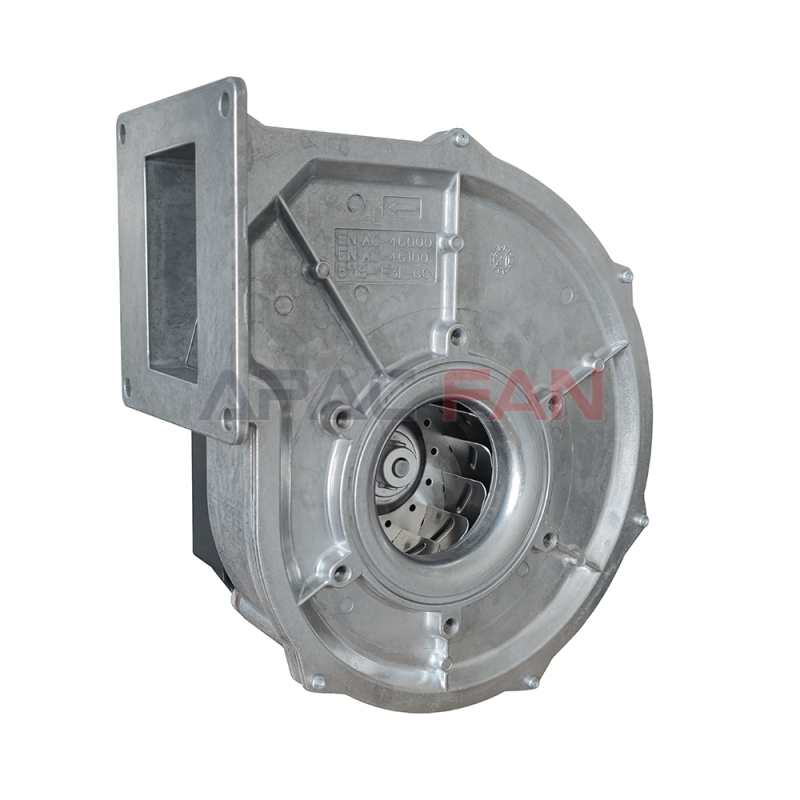

ebm-papst is a well-known enterprise in the fan manufacturing industry with a long history and strong technical research and development capabilities. Its products are known for innovation, efficiency and reliability, and are widely used in many fields such as industry, commerce, and construction. As one of the important products of the brand, the G1G170-AB53-80 centrifugal fan is designed to provide strong and stable power support for various ventilation systems to meet the ventilation needs in different scenarios.
Key parameter interpretation
Rated voltage: The rated voltage of the fan is 230V, which enables it to adapt to most common industrial and commercial power environments. Stable voltage input is the basis for the normal operation of the fan, ensuring that the fan can maintain stable performance output under various working conditions.

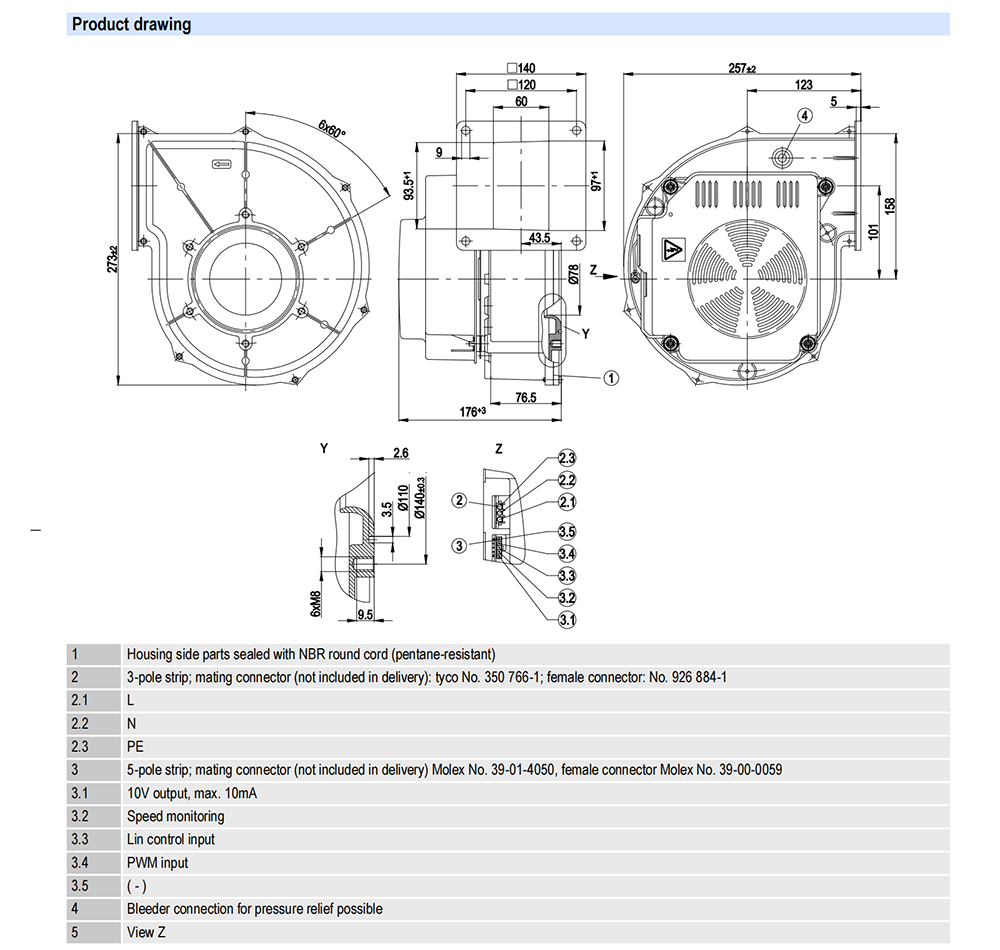

Dimensions: The size of the fan is 170 mm, and the relatively compact design makes it highly flexible during installation. It can be easily integrated into various ventilation systems with limited space, and can play an excellent ventilation effect whether in a small equipment or in a complex ventilation duct layout.

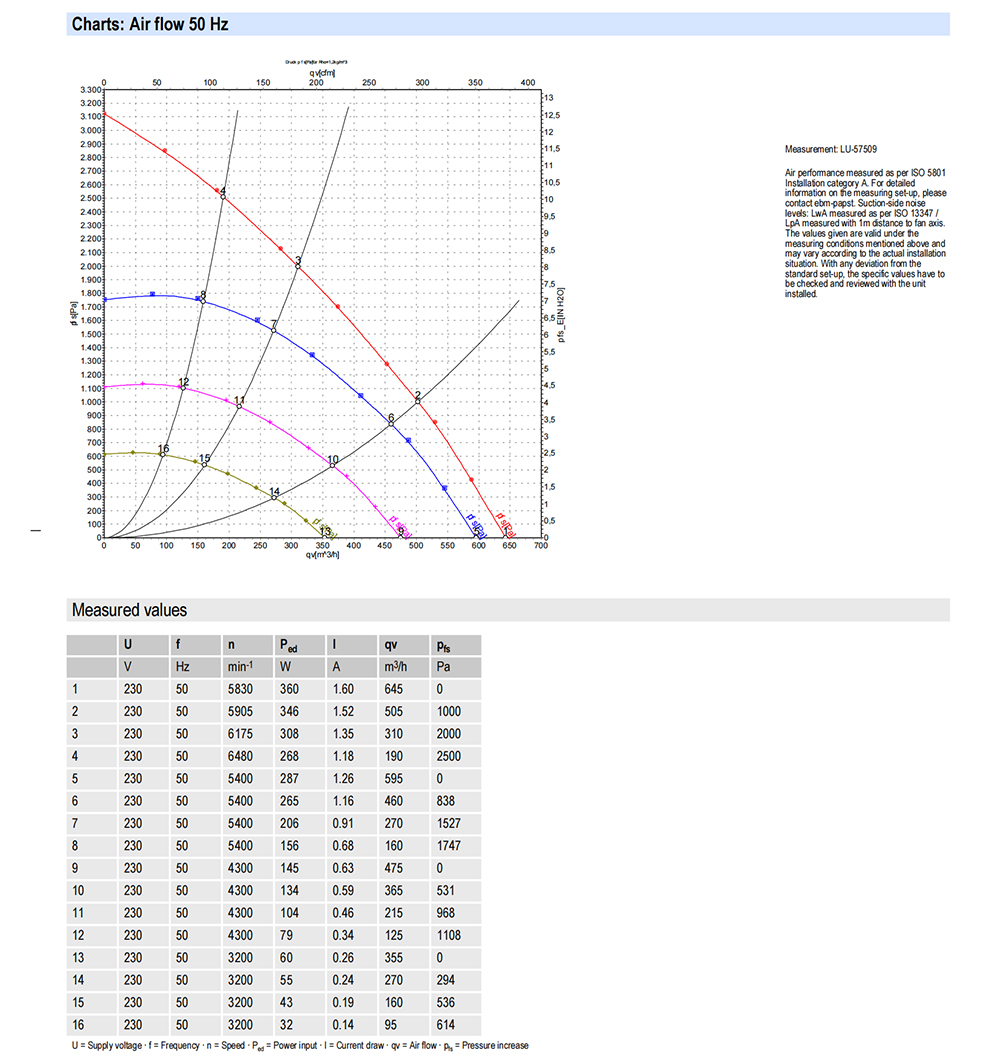

Maximum air volume: The maximum air volume of G1G170-AB53-80 can reach 645m³/h. This excellent air volume index means that it can achieve large-area air circulation and exchange in a short time, providing sufficient fresh air supply for places with large ventilation needs.
Maximum pressure: Its maximum pressure is 2500Pa. The higher pressure enables the fan to overcome the larger air duct resistance, ensuring that the air can be smoothly transported to a longer distance or through a complex ventilation duct network. This is especially important for some ventilation systems with long ducts and many elbows, which can ensure the stability and reliability of the ventilation effect.
Input power: The fan has an input power of 360W. While ensuring high air volume and high pressure output, it achieves relatively low power consumption through reasonable design and optimization. This not only reduces operating costs, but also meets the needs of modern industry for energy-saving equipment.
Speed: The speed of up to 5830rpm provides strong power support for the fan. The stable high speed ensures that the fan can work continuously and efficiently, quickly inhale and discharge air, and achieve an efficient ventilation process.
Unique product features
Efficient air delivery: Combining the advantages of high air volume and high pressure, G1G170-AB53-80 can achieve efficient air delivery in various complex ventilation environments. Whether in ventilation, dust removal, cooling or other application scenarios, it can quickly and effectively transfer air from one area to another to ensure the maximum ventilation effect.
Compact design and flexible installation: Its compact size design gives the fan a great advantage during installation. It can be installed in a variety of ways, such as horizontal installation, vertical installation, etc., and users can flexibly choose according to the actual ventilation system layout and needs. This flexibility greatly improves the applicability of the fan and reduces the difficulty and cost of installation.
Low-noise operation: Although the noise is marked as not applicable in the product parameters, in the actual design and manufacturing process, EBM-PAPST uses advanced noise reduction technology to make the fan generate less noise during operation. This is very important for some industrial environments with high noise requirements, such as precision processing workshops, laboratories, etc., and can provide workers with a quiet and comfortable working environment.
Reliability and stability: As a product of ebm-papst, G1G170-AB53-80 has undergone rigorous quality inspection and performance testing. The use of high-quality materials and advanced manufacturing processes ensures that each component of the fan has good wear resistance, corrosion resistance and fatigue resistance. In the long-term operation process, it can maintain stable performance, reduce the occurrence of failures, and reduce maintenance costs.
Wide application scenarios
Industrial manufacturing field: In industrial production workshops such as machinery manufacturing, chemical industry, and electronics, G1G170-AB53-80 can be used for ventilation and exhaust of harmful substances such as waste gas, hot air, and dust generated during the production process, improve the air quality of the workshop, and protect the health of workers. At the same time, it can also be used for cooling and heat dissipation of equipment to ensure that the equipment operates in a suitable temperature environment and improve the reliability and service life of the equipment.
Warehousing and logistics field: In large warehouses, logistics centers and other places, due to the large storage volume of goods and poor air circulation, odor and moisture are easily generated. The fan can be used for ventilation, keeping the air in the warehouse fresh and dry, preventing the goods from getting damp and moldy, and extending the storage period of the goods.
Commercial building field: In commercial buildings such as shopping malls, supermarkets, and hotels, G1G170-AB53-80 can be used for ventilation and ventilation of air conditioning systems, improving indoor air quality, and providing a comfortable environment for customers and employees. In commercial kitchens, it can also be used for smoke exhaust and ventilation to keep the kitchen air fresh and meet hygiene standards.
G1G170-AB53-80 centrifugal fan has become an excellent product in the field of industrial ventilation with its excellent performance, compact design, low noise operation and high reliability. Whether in industrial manufacturing, warehousing and logistics or commercial buildings, it can play an important role. With the continuous development of industrial technology and the continuous improvement of ventilation needs, it is believed that this fan will be widely used in more fields, bringing users more efficient and reliable ventilation solutions.
