| Brand： | ebmpapst |
| Part No： | G3G160-CU09-11 |
| Fan Type： | Centrifugal Fan |

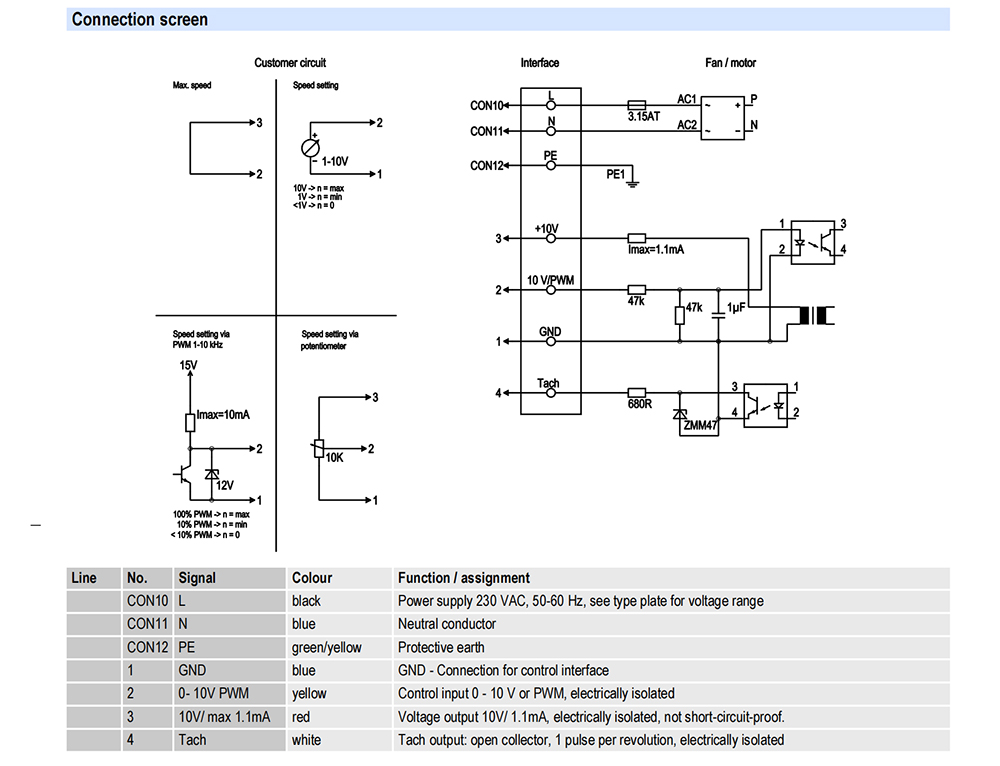

| Rated Voltage(V)： | 230 |

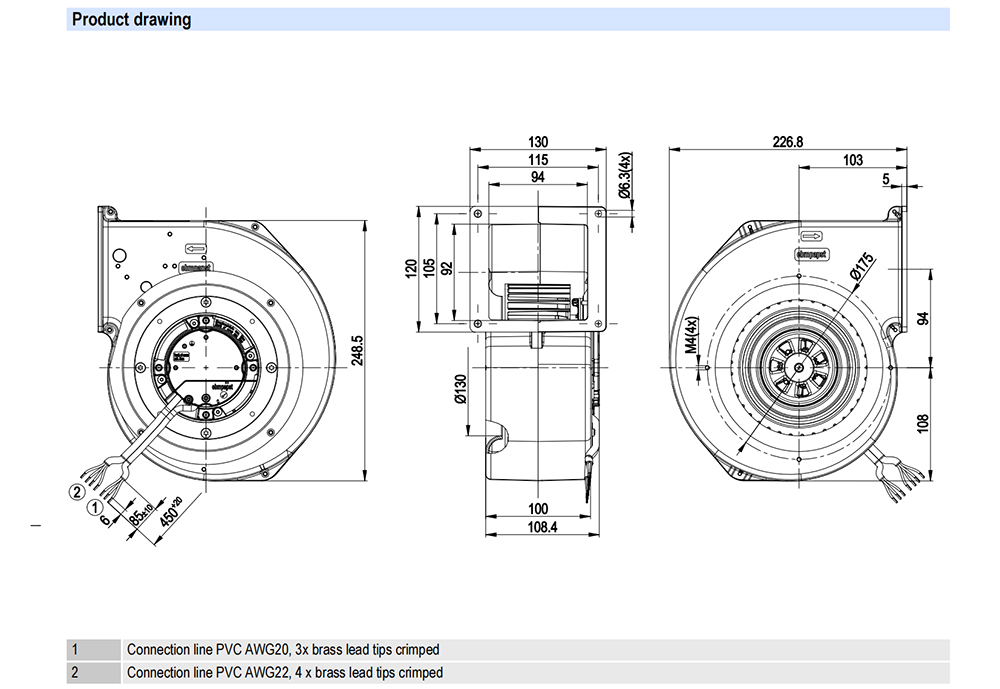

| Size(mm)： | 160 |
| Max.Air Flow(m³/h)： | 650 |
| Max.Pressure(Pa)： | 620 |
| Input Power(W)： | 170 |
| Speed(rpm)： | 2100 |
| Noise(db)： | N/A |
In the field of industrial ventilation and gas delivery, fans are core equipment, and their performance directly affects the smoothness of the production process and the stability of product quality. The G3G160-CU09-11 fan under the ebm-papst brand has become the first choice of many industrial enterprises with its outstanding design and excellent performance.
(I) Brand and model
The G3G160-CU09-11 fan is produced by the well-known brand ebm-papst. The brand is well-known for its professional technology and high-quality products in the field of fan manufacturing, and has long been committed to providing reliable and efficient ventilation solutions to customers around the world.
(II) Fan type
This fan is a centrifugal fan. The working principle of a centrifugal fan is to rely on the input mechanical energy to increase the gas pressure and discharge the gas. It is characterized by high wind pressure and the ability to overcome greater resistance. It is suitable for ventilation and gas delivery scenarios that require higher pressure.
(III) Rated voltage
The rated voltage of the fan is 230V, which is a common voltage specification in industrial and commercial electricity. It can be easily compatible with various electrical systems, reducing the need for additional voltage conversion equipment and reducing the cost of use.
(IV) Size
The size of the fan is 160 mm. This compact design makes it easy to use even in limited installation space. Whether in a small industrial workshop or in the ventilation duct of a commercial place, a suitable installation location can be found, providing users with greater flexibility.

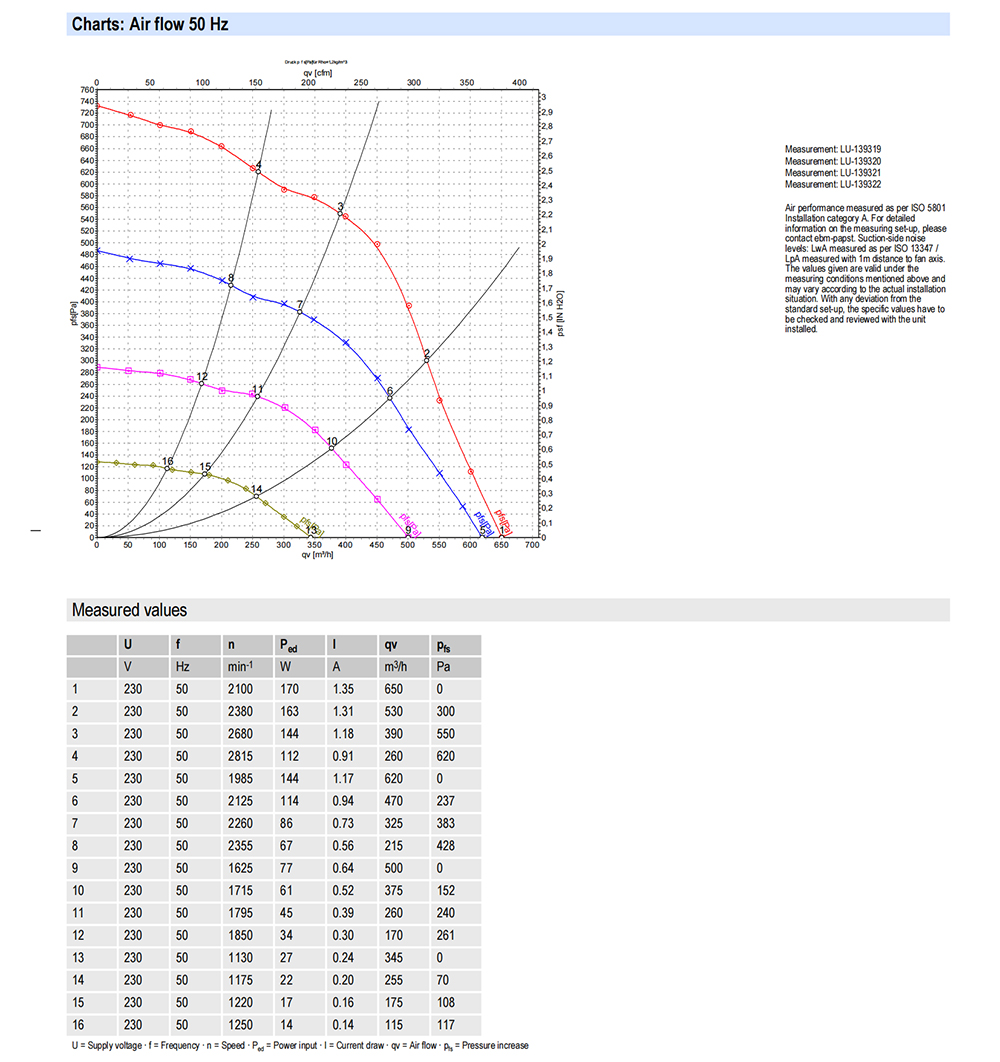

(V) Maximum air volume and maximum pressure
The maximum air volume of the G3G160-CU09-11 fan can reach 650m³/h and the maximum pressure is 620Pa. This combination of parameters allows the fan to meet certain air volume requirements while providing sufficient pressure to ensure that the gas can be smoothly transported to the designated location. For example, in some occasions where air needs to be transported to a farther or higher position, the fan can rely on its higher pressure output to ensure ventilation effect.
(VI) Input power and speed
The input power of the fan is 170W and the speed is 2100rpm. Lower input power means energy saving and lower operating costs during operation. The speed of 2100rpm ensures that the fan can stably output the required air volume and pressure, providing a guarantee for the stable operation of the ventilation system.
(I) High efficiency and energy saving
The G3G160-CU09-11 fan adopts advanced aerodynamic design and efficient motor technology, which can achieve higher air volume and pressure output at lower input power. Compared with traditional fans, its energy utilization efficiency is significantly improved, which can save users a lot of electricity expenses. For example, in a long-term ventilation system, the annual electricity bill saved by using this fan is considerable.
(II) Low noise operation
Although the fan has a high speed, the noise generated during operation is effectively reduced through optimized impeller design and noise reduction technology. In some places with high noise requirements, such as hospitals, schools, office buildings, etc., the low noise characteristics of this fan can provide people with a quiet and comfortable environment without interfering with people's work and life.
(III) Durable and reliable
The outer shell and internal components of the fan are made of high-quality materials with good corrosion resistance and wear resistance. At the same time, after strict quality inspection and reliability testing, it is ensured that the fan can operate stably for a long time in harsh industrial environments, reducing equipment failures and maintenance times, and improving production efficiency.
(IV) Easy to install and maintain
The fan has a reasonable structural design and a simple and convenient installation process. Its compact size and standardized interface enable it to be easily connected to various ventilation ducts and systems. In addition, the fan is also very easy to maintain. Daily maintenance only requires regular cleaning of the impeller and checking the operating status of components such as the motor, which reduces maintenance costs and difficulty.
(I) Industrial ventilation
In industrial production, many workshops will generate a lot of dust, exhaust gas and heat, which need to be discharged in time to ensure the safety of the production environment and the health of employees. G3G160-CU09-11 fans can be used in the ventilation system of industrial workshops to exhaust polluted air from the workshops and introduce fresh air to improve the air quality of the workshops. For example, in metal processing workshops, the fans can effectively exhaust metal dust generated during cutting and grinding; in chemical workshops, they can exhaust harmful gases to prevent employees from being poisoned.
(II) Ventilation of commercial places
In commercial places such as shopping malls, supermarkets, and hotels, there are dense crowds of people and the air is easy to become polluted. The fans can be used in the central air conditioning ventilation system of commercial places to provide sufficient fresh air volume for the places, keep the indoor air fresh, and improve the shopping and consumption experience of customers. At the same time, its low-noise operation characteristics will not affect the quiet atmosphere of commercial places.
(III) Equipment heat dissipation
Some large equipment will generate a lot of heat during operation, such as servers, transformers, etc. G3G160-CU09-11 fans can be used in the heat dissipation system of these equipment. Through forced ventilation, the heat generated by the equipment can be quickly taken away to ensure that the equipment operates within the normal temperature range and extend the service life of the equipment.
G3G160-CU09-11 fans have shown strong competitiveness in the industrial and commercial fields with their excellent parameters and characteristics. Whether it is high efficiency and energy saving, low noise operation, or durability and reliability, easy installation and maintenance, it is an ideal choice for ventilation and gas delivery. With the continuous development of industry and commerce, the requirements for ventilation equipment are getting higher and higher. It is believed that G3G160-CU09-11 fans will provide high-quality ventilation solutions for more users with their excellent performance.
In today's highly competitive industrial equipment market, an excellent fan must not only have powerful performance, but also show unique features and advantages in many aspects. As an outstanding representative of the ebm-papst brand, the G3G160-CU09-11 fan stands out among many fan products.
