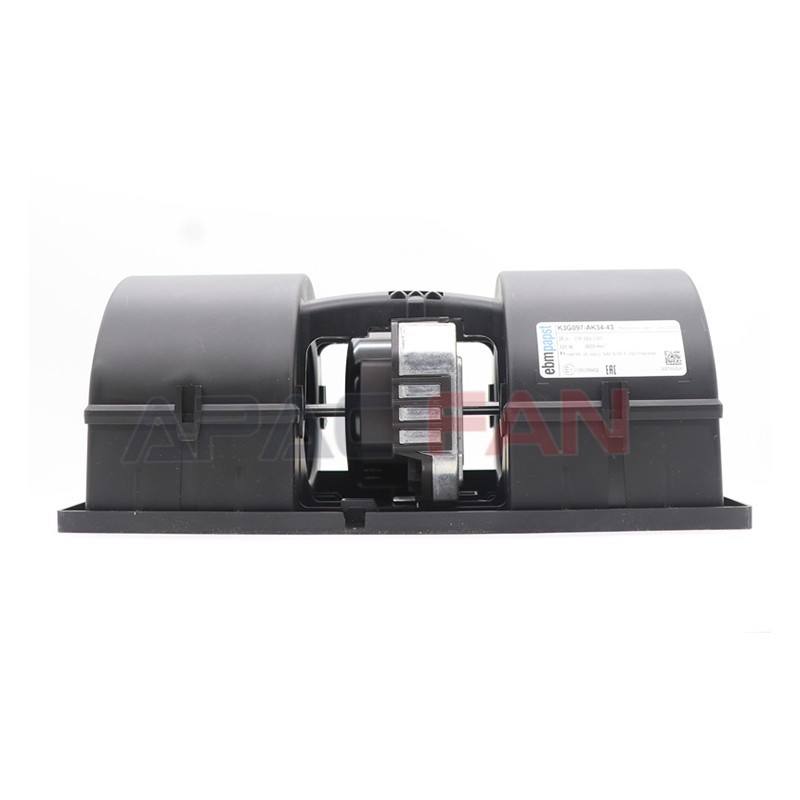

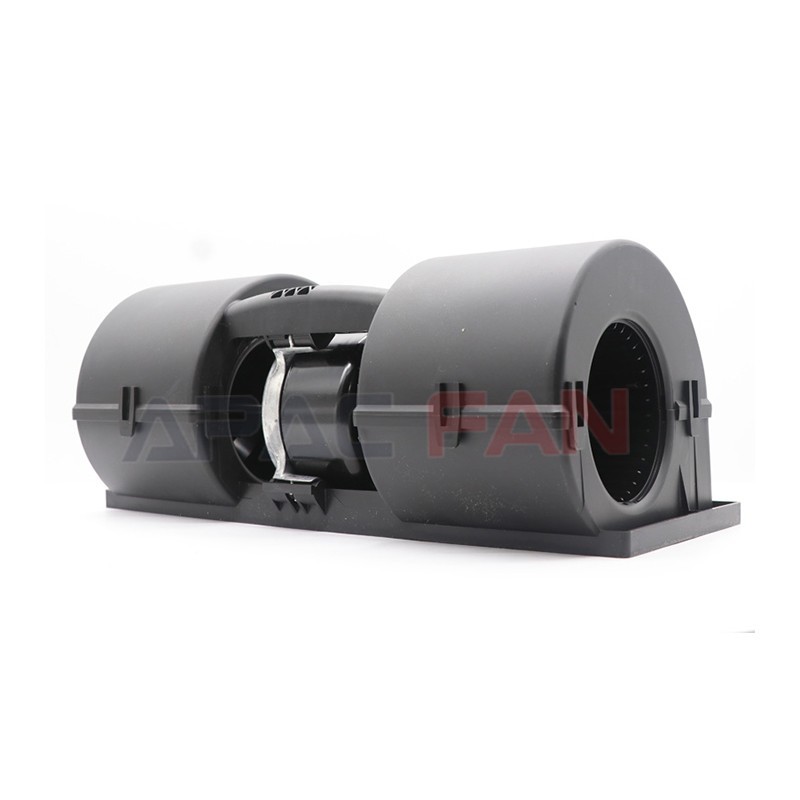

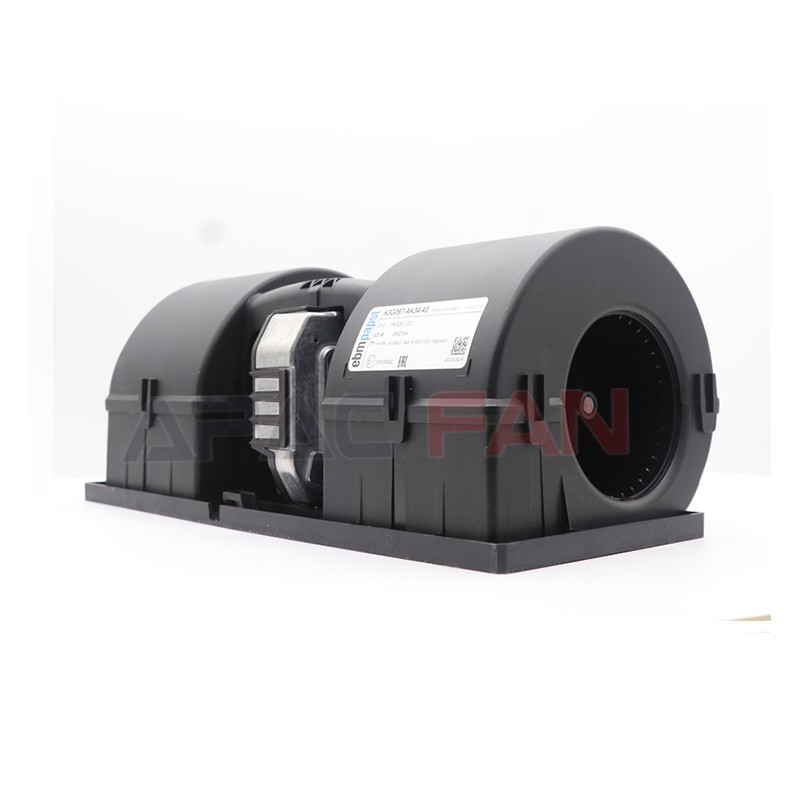

EC dual centrifugal fan,forward curved, dual inlet with housing, Automotive
| Brand: | ebm-papst |
| Part No: | K3G097-AK34-43 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 26 |
| Size(mm): | 97 |

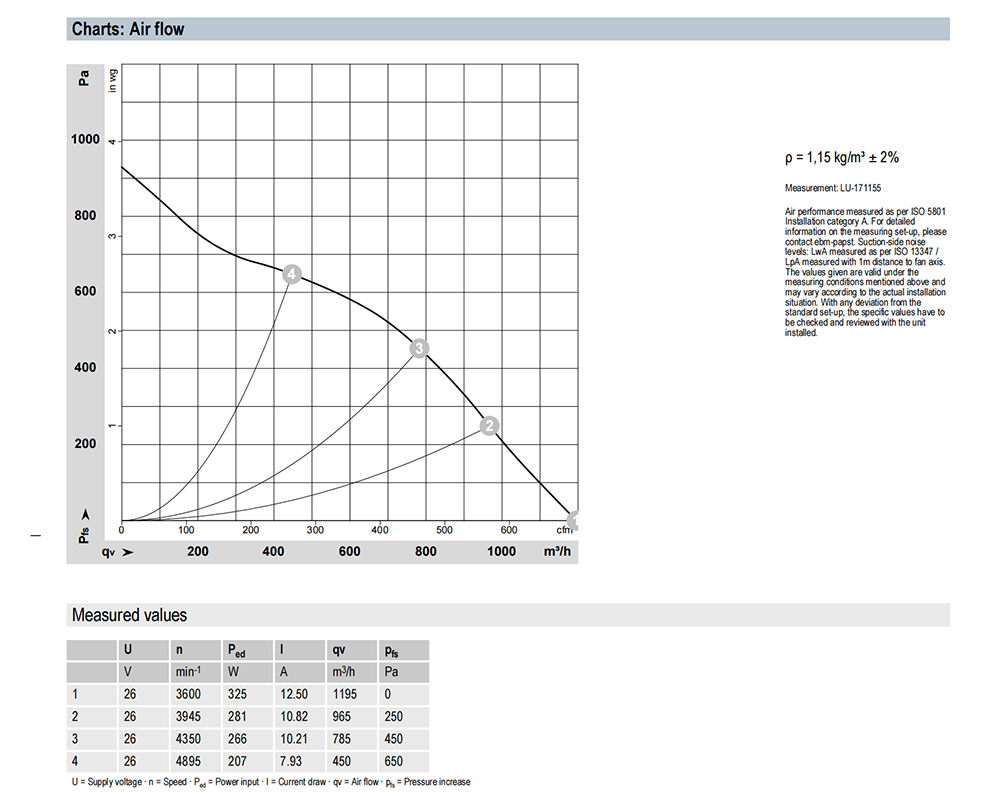

| Max.Air Flow(m³/h): | 1195 |
| Max.Pressure(Pa): | 650 |
| Input Power(W): | 325 |
| Speed(RPM): | 3600 |
| Mass: | 2.3 kg |
| Material Of Impeller: | PA plastic |
| Housing Material: | PP plastic |
| Number Of Blades: | 34 |
| Balance Quality According To DIN ISO 1940-1: | G 2.5 |
| Direction Of Rotation: | Clockwise, seen on rotor |
| Type Of Protection: | IP 24 KM |
| Insulation Class: | "B" |
| Humidity Class: | F3-2 |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | +85 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | -40 °C |
| Mounting Position: | Any |
| Condensate Discharge Holes: | None, open rotor |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing; (sealed) |
| Life Expectancies: | 40,000 h (typical) |

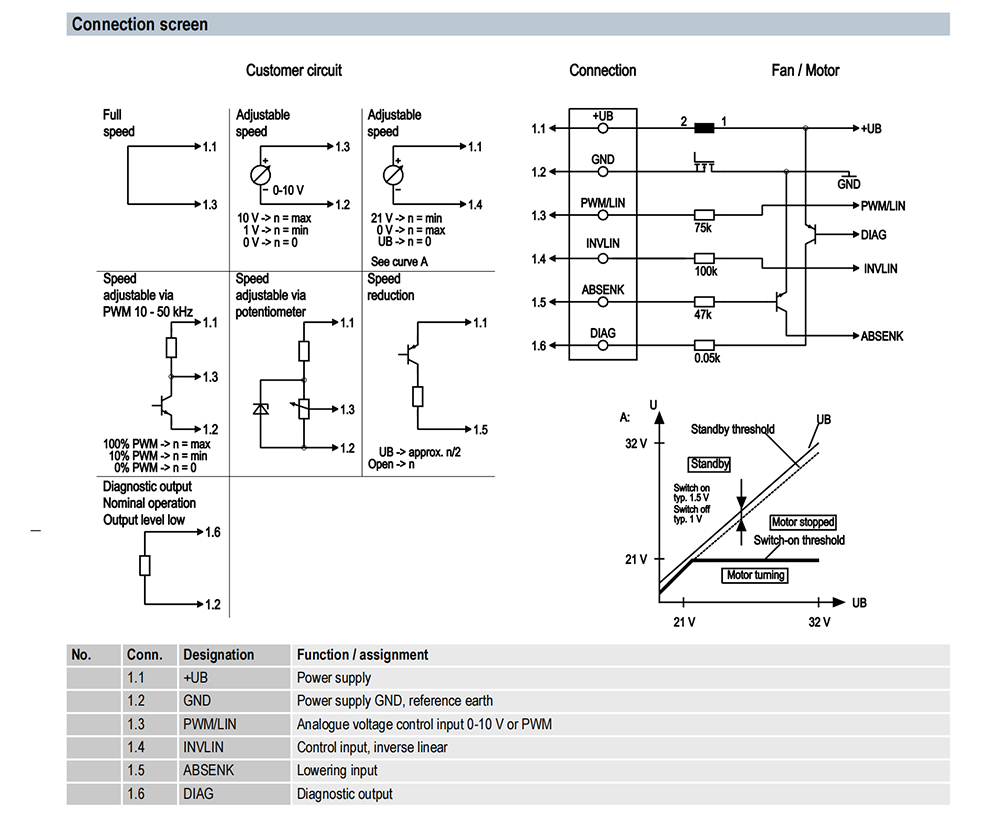

| Technical Features: | - Lowering input - Tach output - Fault output (high-side switch max. 30 mA) - INVLIN (control input, inverse linear) - Output limit - Load dump (58 V) - Motor current limit - Soft start - Control input 0-10 VDC / PWM - Overvoltage detection - Over-temperature protected electronics - Line undervoltage detection |
| EMC Directives: | According to ECE R10 Rev. 3 |
| Electrical Leads: | With plug; Standby current less than 500 µA |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Approval: | EAC; E1 |
| Noise Level: | 76 dB(A), sound power level according to ISO 13347 |
| Remark: | Type approval number – 036432 |
