FAQ
Q1: What does the "3~230/400V" rated voltage mean for the RH28M-2DK.3F.1R 156948 fan, and how does it affect installation?

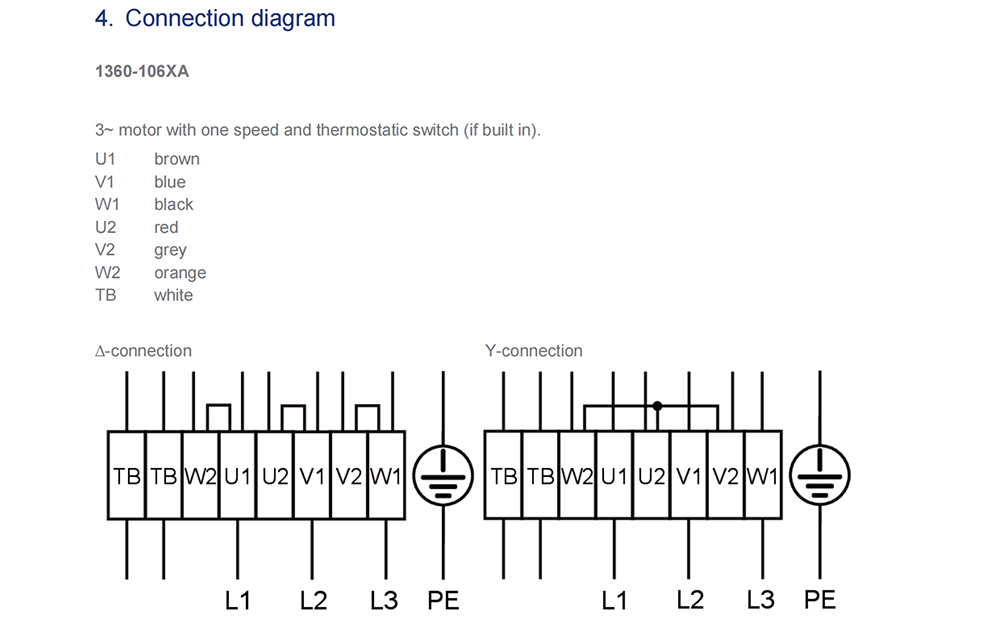

A1: "3~" indicates this is a three-phase fan, while "230/400V" means it’s compatible with two common three-phase voltage systems. It can operate on 230V three-phase (often used in some industrial or regional setups) or 400V three-phase (a standard for most commercial/industrial power grids). This dual-voltage compatibility gives flexibility during installation—users just need to confirm their site’s three-phase voltage and wire the fan accordingly (following ZIEHL-ABEGG’s wiring guidelines) to avoid motor damage and ensure optimal performance.
Q2: The RH28M-2DK.3F.1R 156948 has a 280mm size and 2750m³/h max air flow. How do these two specs work together for its application?

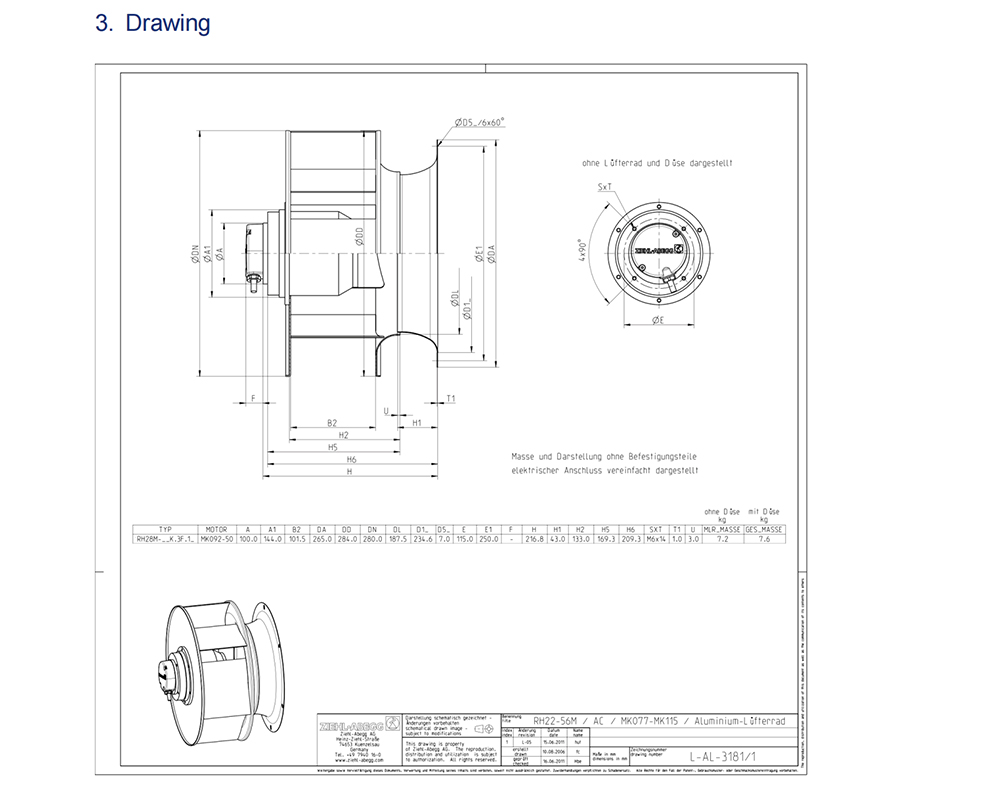

A2: The 280mm size typically refers to the fan’s impeller diameter, a key factor in determining its airflow capacity. A 280mm impeller, paired with the fan’s 2750rpm speed, enables it to deliver 2750m³/h max air flow—this combination balances size and airflow for mid-to-large scale ventilation needs. For example, in industrial workshops, data centers, or large HVAC zones, the 280mm size ensures the fan fits in standard equipment enclosures, while 2750m³/h ensures it can circulate or exhaust enough air to maintain temperature and air quality.
Q3: What makes the 780Pa max pressure of the RH28M-2DK.3F.1R 156948 notable, and which applications benefit most from this?

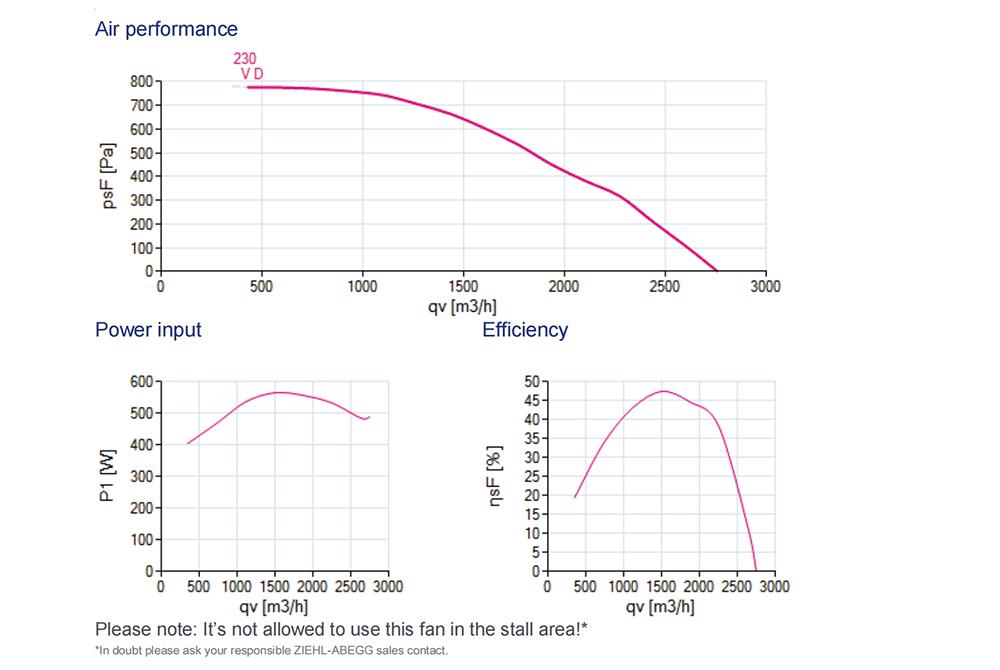

A3: 780Pa is a high max pressure for a centrifugal fan of this size, meaning it can push air through significant resistance without losing airflow. This is critical for applications with complex ductwork (e.g., long runs, multiple bends), high-efficiency air filters (which create airflow resistance), or enclosed machinery (where air needs to penetrate tight spaces). For instance, in cleanrooms (with HEPA filters) or industrial cooling systems (with restricted airflow paths), the 780Pa pressure ensures the fan still delivers its 2750m³/h max air flow, avoiding stagnant air or insufficient cooling.
Q4: How does the 570W input power of the RH28M-2DK.3F.1R 156948 support its speed, airflow, and pressure performance?
A4: The 570W input power is the energy needed to drive the fan’s motor and impeller, directly enabling its core performance metrics. It powers the 2750rpm speed (fast enough to generate strong centrifugal force), which in turn creates both the 2750m³/h max air flow (by moving a large volume of air) and 780Pa max pressure (by overcoming resistance). Unlike lower-power fans that might struggle to maintain speed under resistance, 570W ensures the fan runs consistently—even when pushing air through high-resistance systems—without overheating or dropping airflow/pressure, making it reliable for continuous operation.
Q5: For users replacing an old fan with the RH28M-2DK.3F.1R 156948, what key specs should they cross-check to ensure compatibility?
A5: To ensure compatibility, users should cross-check four key specs: first, the voltage—confirm the site has three-phase 230V or 400V (matching the fan’s rated voltage). Second, the size—ensure the 280mm fan fits the existing mounting space, duct openings, or equipment enclosure (avoid gaps that cause air leakage). Third, airflow and pressure—verify the old fan’s required airflow (needs to be ≤2750m³/h) and system resistance (needs to be ≤780Pa) to ensure the new fan meets or exceeds the application’s needs. Finally, input power—check if the site’s power supply can handle 570W to avoid electrical overloads.
