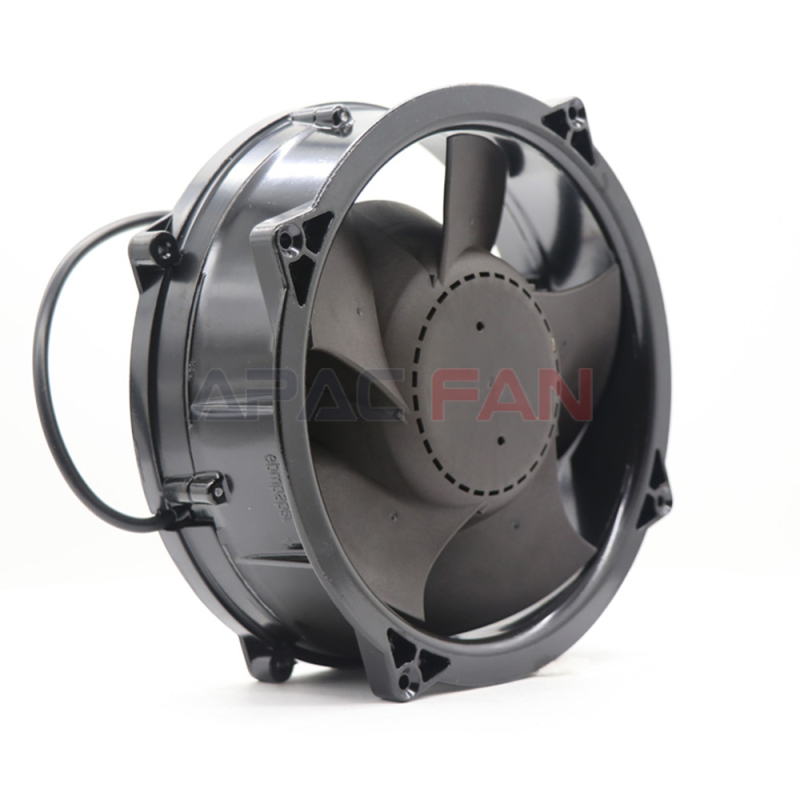

Advanced Engineering and Material Science Behind the ebm-papst W1G180-AB31-01 Axial Fan​​

The ebm-papst W1G180-AB31-01 axial fan is a testament to modern engineering, blending advanced materials, innovative design principles, and meticulous attention to detail. While its compact dimensions of 180 mm and 24V operational rating make it a practical choice for space-constrained applications, the true ingenuity of this fan lies in its ability to balance performance, durability, and adaptability. By examining its structural components, material choices, and operational systems, we gain insight into how it achieves reliability in industrial and commercial environments.

​​Material Innovations: Strength Meets Resilience​​

At the heart of the W1G180-AB31-01 is its five-blade impeller, crafted from glass-fiber-reinforced PA66 plastic. This material selection is deliberate and multifaceted. PA66, or polyamide 66, is a thermoplastic known for its high mechanical strength and resistance to wear. When combined with glass fibers, the composite becomes even more rigid, capable of withstanding centrifugal forces generated at its operating speed of 4550 rpm. This is critical for maintaining blade integrity in high-pressure scenarios, such as exhaust systems where airflow resistance is significant.

The impeller’s counter-clockwise rotation, when viewed from the rotor, is not merely a design choice but a strategic optimization. This directionality ensures smooth airflow transition through the impeller vanes, minimizing turbulence and energy loss. Additionally, the reinforced structure resists deformation under thermal stress—a factor particularly important in applications with fluctuating temperatures, such as HVAC systems during seasonal cycling.

Supporting the impeller is a die-cast aluminum wall ring, coated in black to enhance corrosion resistance. Die-casting produces a dense, uniform structure that retains dimensional stability even under mechanical stress. The black coating, likely an oxidized finish, provides a protective barrier against environmental agents like moisture or chemicals, extending the fan’s lifespan in humid or corrosive settings. This combination of material and surface treatment ensures the fan operates reliably in industrial facilities, marine environments, or agricultural settings where humidity and particulate exposure are common.

The rotor’s galvanized surface adds another layer of protection. Galvanization involves coating steel with a layer of zinc, which sacrificially corrodes to shield the underlying metal. While the rotor itself is not exposed to direct external elements, this treatment safeguards against residual moisture or condensation that might penetrate the housing during operation.

​​Thermal Management and Environmental Adaptability​​

The W1G180-AB31-01 is engineered to function across an extreme temperature range (-40°C to +80°C), a capability rooted in its thermal management systems. The motor’s class B insulation—a standard for industrial motors—prevents overheating by withstanding higher temperatures than typical Class A motors. This is complemented by the ball-bearing motor design, which reduces friction and heat generation during continuous operation. Unlike sleeve bearings, which rely on grease and are prone to wear, ball bearings require minimal maintenance and sustain performance even in high-cycle applications.

The fan’s ability to handle sub-zero temperatures is equally noteworthy. In cold storage facilities or northern climate HVAC systems, materials must remain rigid to avoid cracking. The PA66 impeller, free from plasticizers that could leach out in cold conditions, retains its structural properties down to -40°C. Similarly, the die-cast aluminum housing resists cold-induced brittleness, ensuring consistent performance in refrigeration units or ice rinks.

​​Control Integration and Safety Features​​

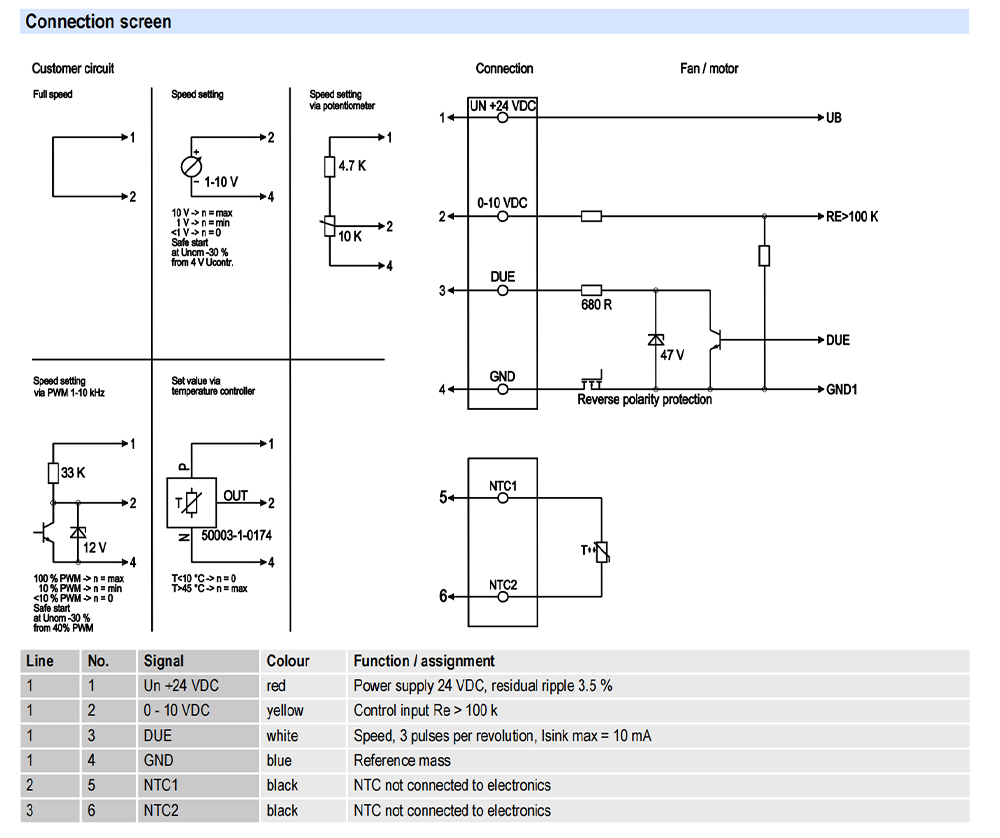

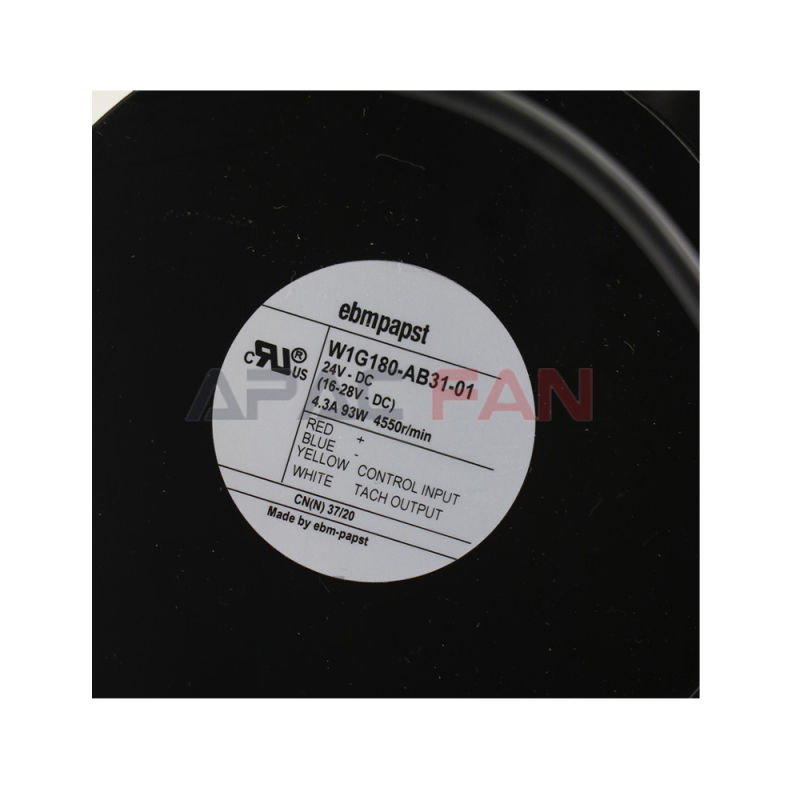

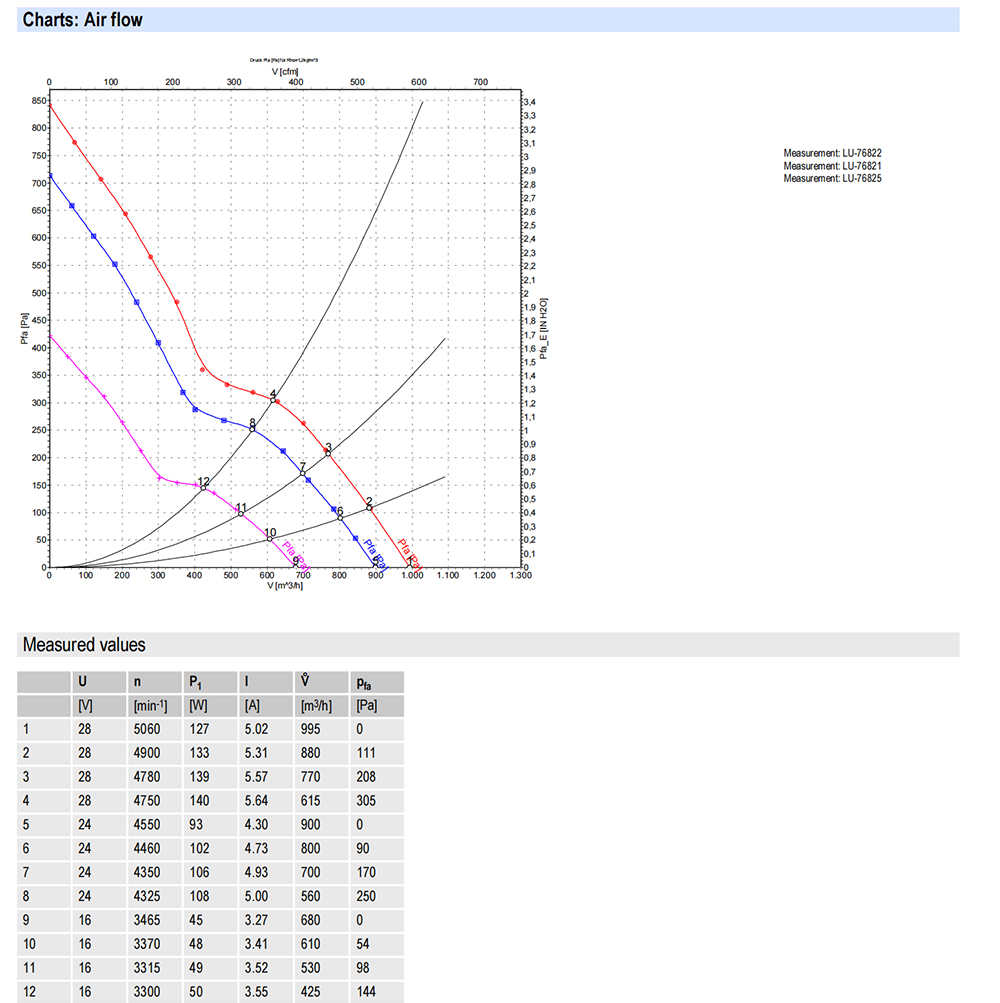

Modern ventilation systems demand adaptability, and the W1G180-AB31-01 meets this need through its 0-10 VDC and PWM control inputs. These interfaces allow integration with building automation systems, enabling dynamic airflow adjustment based on real-time sensor data. For instance, in a greenhouse, the fan’s speed could be modulated to align with temperature thresholds detected by humidity or CO₂ sensors. The soft-start technology further enhances compatibility with sensitive electronics by gradually ramping up rotational speed, eliminating inrush currents that might trip circuit breakers or stress connected devices.

Safety is embedded into the fan’s electrical architecture. Reverse polarity protection prevents damage from incorrect wiring, a common hazard during installation. Locked-rotor protection, a feature often overlooked in lower-tier fans, safeguards the motor from burnout if the impeller becomes obstructed—a scenario plausible in applications like ductwork prone to debris accumulation.

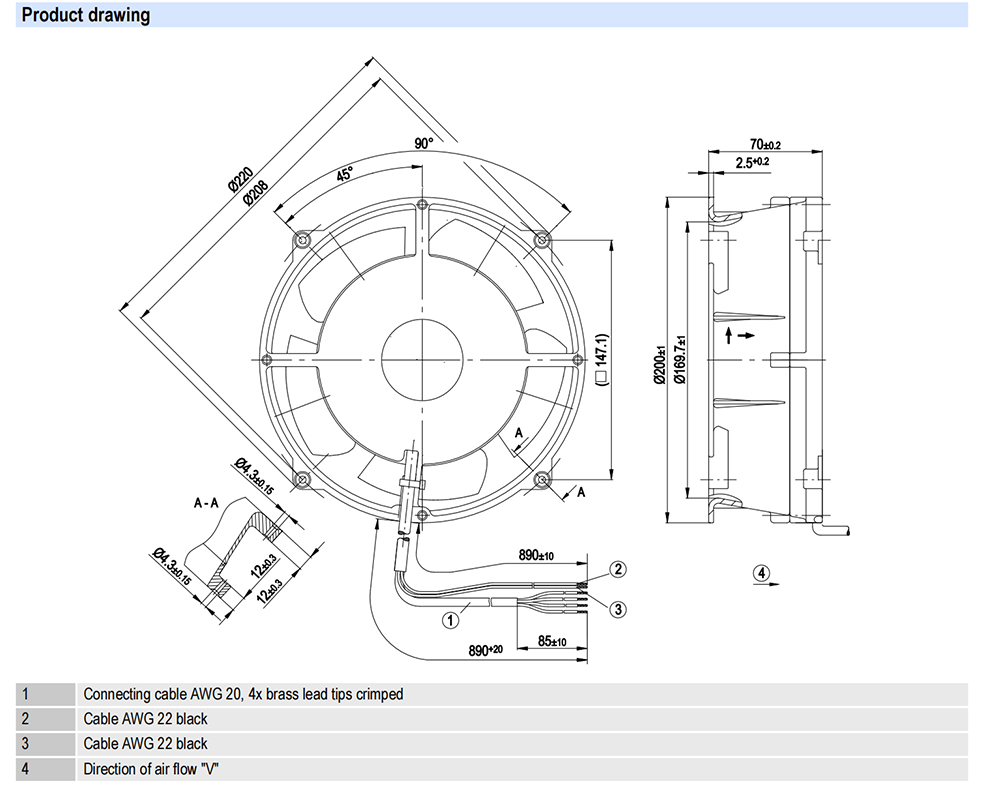

​​Design Philosophy: Simplicity and Modularity​​

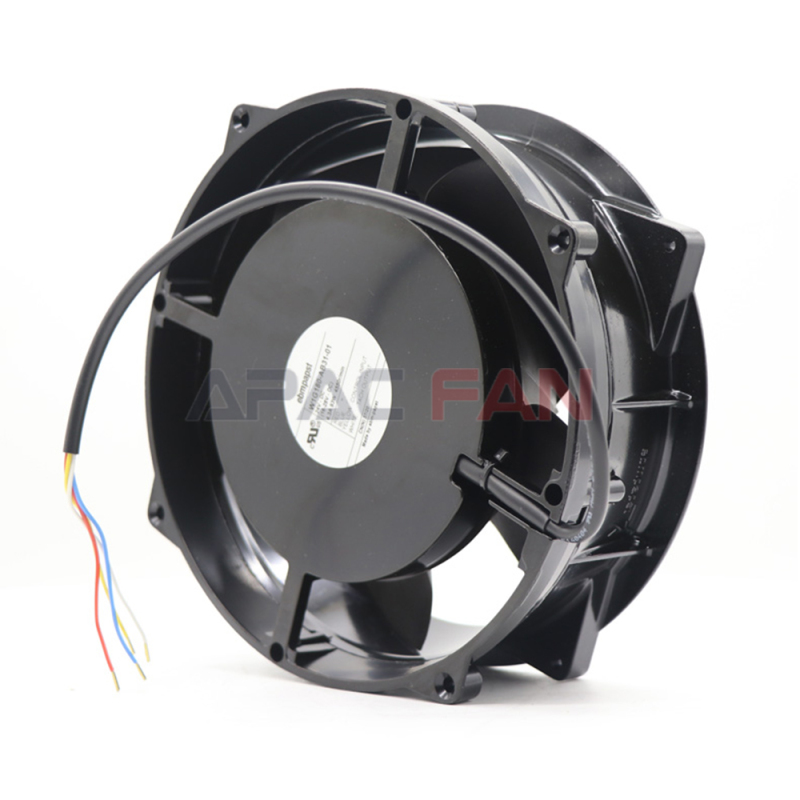

The W1G180-AB31-01’s design prioritizes ease of installation and versatility. Its lateral cable exit simplifies wiring in tight spaces, such as ceiling cavities or rack-mounted systems. The “any-mounting-position” capability allows installers to orient the fan vertically, horizontally, or even upside-down, provided the airflow direction remains consistent. This flexibility is invaluable in retrofit projects where existing ductwork or infrastructure limits positioning options.

The fan’s 1.8 kg mass underscores its portability without compromising structural integrity. Lightweight yet robust, it can be mounted on vibration-prone surfaces like rooftop HVAC units, where anti-vibration mounts further dampen operational noise. While specific decibel ratings are undisclosed, the absence of loose components and the precision-balanced impeller contribute to inherently quieter operation compared to fans with uneven blade weights or subpar bearings.

​​Compliance and Global Standards​​

Adherence to international standards reinforces the fan’s credibility. EN 60950-1 certification ensures compliance with electrical safety requirements for IT equipment, while UL 507 and CSA C22.2 Nr.113 validate its suitability for North American markets. Electromagnetic compatibility (EMC) certifications—EN 61000-6-2 for immunity and EN 55022 Class B for emissions—guarantee minimal interference with nearby electronic devices, a critical consideration in hospitals, laboratories, or office buildings.

​​Conclusion: A Holistic Approach to Ventilation​​

The ebm-papst W1G180-AB31-01 is more than a mere axial fan; it is a synthesis of material science, thermal engineering, and user-centric design. From its corrosion-resistant coatings to its temperature-tolerant internals, every component is selected to address specific operational challenges. Whether deployed in a food processing plant, a telecom server room, or a coastal maritime vessel, the fan delivers consistent performance through intelligent material choices and robust construction. By harmonizing simplicity with sophistication, this model exemplifies how precision engineering can create solutions that are as adaptable as they are dependable.
