W1G200-HH77-52 ebm-papst

Comprehensive analysis of W1G200-HH77-52 axial flow fan

• Introduction

In both industrial and civilian fields, fans play an indispensable role as important ventilation equipment. The W1G200-HH77-52 axial flow fan from ebm-papst brand stands out among numerous fan products for its outstanding performance and stable quality. This article will delve into the various parameters, unique features, and application advantages of this fan in different scenarios, fully showcasing the charm of the W1G200-HH77-52 axial flow fan.

• Basic parameters of fan

Brand and Model: This fan comes from the well-known brand ebm-papst, model W1G200-HH77-52. The brand's reputation and technical accumulation provide solid guarantees for product quality.

Fan type: It belongs to axial flow fan. The working principle of axial flow fan is to push air to flow along the axial direction through the rotation of blades, which has the characteristics of large air volume and high efficiency.

Rated voltage (V): The rated voltage is 24V. This low voltage design not only ensures safety during use, but is also suitable for use in environments with strict voltage requirements, such as the cooling and ventilation systems of some electronic devices.

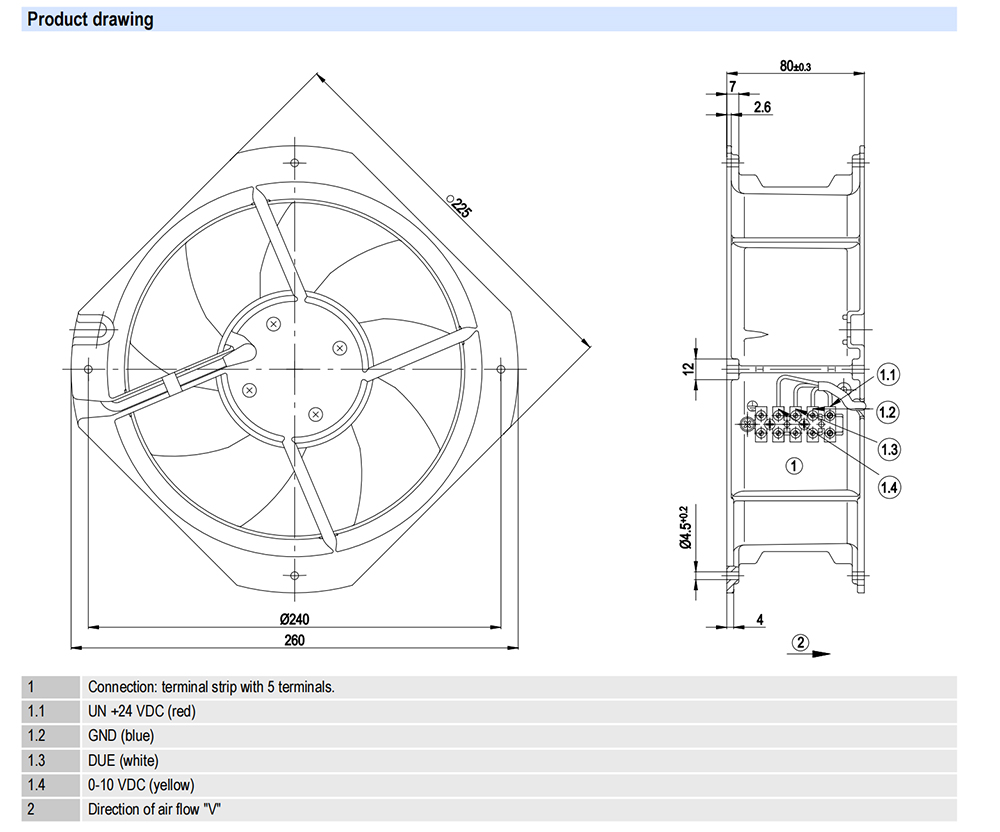

Size (millimeters): The size of the fan is 22522580, which makes it more flexible in space utilization. It does not occupy too much space, but also ensures sufficient ventilation area, suitable for installation needs of various equipment and places.

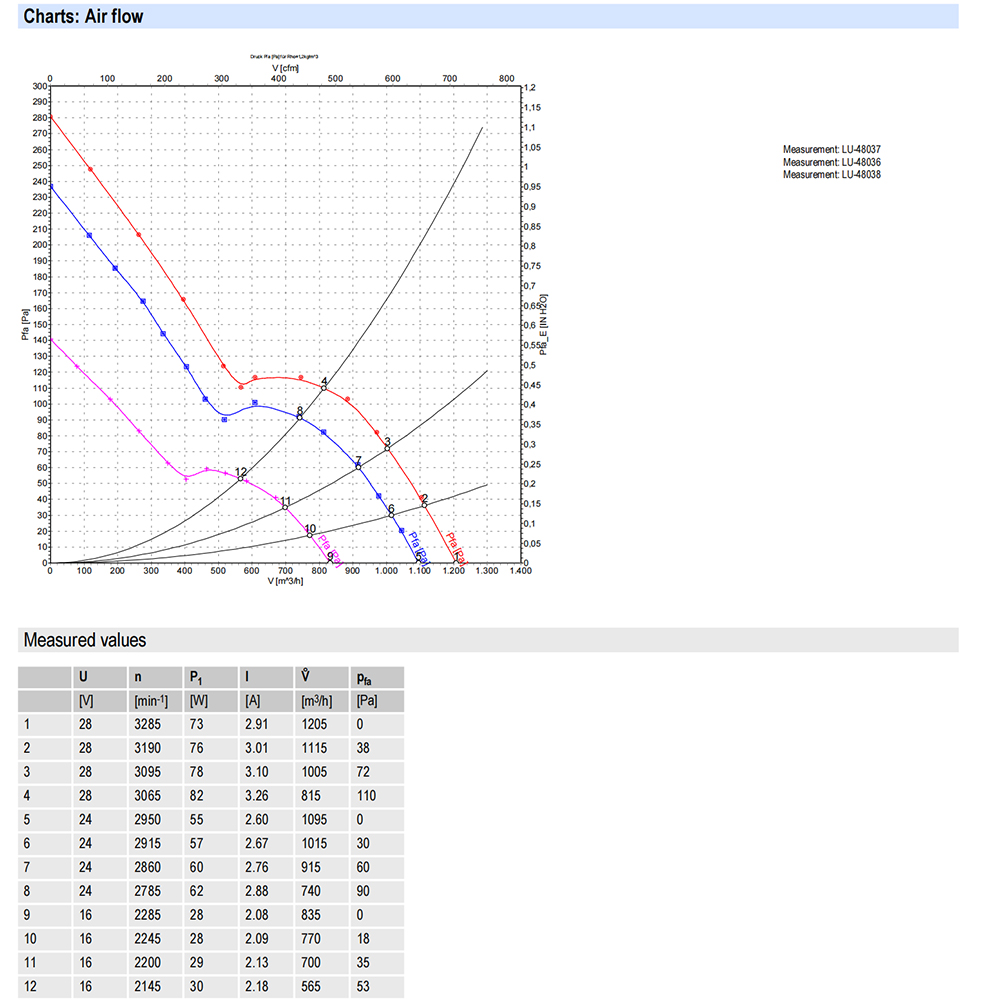

Maximum pressure (Pa): The maximum pressure can reach 110Pa, which can overcome the resistance in the ventilation duct to a certain extent, ensure that the air can be smoothly transported to the designated location, and meet some application scenarios that require ventilation pressure.

Input power (W): The input power is 55W, which ensures efficient ventilation while relatively low power consumption, in line with modern energy-saving concepts, and helps to reduce operating costs.

Rotational speed (rpm): The rotational speed is 2950rpm, which allows the fan to quickly promote air flow and achieve efficient ventilation.

• Fan characteristics

Efficient and energy-saving: Combining advanced motor technology and blade design, it effectively reduces energy consumption while providing sufficient ventilation. Compared to some traditional fans, the W1G200-HH77-52 fan has lower energy consumption under the same ventilation effect, and long-term operation can save users a lot of electricity bills.

Stable and reliable: The exquisite manufacturing process and strict quality inspection process of ebm-papst brand ensure the stability and reliability of the fan. The key components inside the fan have been carefully selected and optimized to adapt to long-term, high-intensity operation, reduce the probability of failure, and lower equipment maintenance costs.

Compact design: The size design of 22522580 makes the fan structure compact and small in size. This compact design not only facilitates installation and layout, but also provides good ventilation in limited spaces, making it suitable for equipment or places with narrow spaces, such as control cabinets, small computer rooms, etc.

Low vibration and low noise: By optimizing the blade shape and motor balance design, the vibration and noise during fan operation have been effectively reduced. Low vibration helps to extend the service life of fans and related equipment, while low noise creates a quieter and more comfortable working and living environment for users, especially suitable for occasions with high noise requirements, such as offices, medical places, etc.

• Application scenarios

Industrial field: In industrial production, many devices generate a large amount of heat during operation, requiring timely ventilation and heat dissipation to ensure the normal operation of the equipment. W1G200-HH77-52 fan can be used for heat dissipation and ventilation of industrial control cabinets, electrical equipment boxes, mechanical equipment, etc., ensuring that the equipment works in a suitable temperature environment, improving the stability and reliability of the equipment, and reducing equipment failures caused by overheating.

In the field of communication, communication equipment such as communication base stations and data centers require good ventilation and heat dissipation conditions to ensure the normal operation of the equipment. These places usually have dense equipment and concentrated heat dissipation. The W1G200-HH77-52 fan, with its efficient ventilation performance and compact design, can be installed in equipment racks, cabinets, and other locations to quickly dissipate the heat generated by the equipment, maintain the normal operating temperature of the equipment, and ensure stable and smooth communication.

In some civil buildings, such as residences, offices, shopping malls, etc., ventilation systems are crucial for improving indoor air quality and creating a comfortable indoor environment. The W1G200-HH77-52 fan can be used in fresh air systems, exhaust fans, and other equipment to provide fresh air indoors, exhaust polluted air, improve indoor air circulation and comfort, and its low noise characteristics will not interfere with residents' lives and work.

• Summary

The W1G200-HH77-52 axial flow fan has a wide range of application prospects in various fields such as industry, communication, and civil use due to its high efficiency, energy saving, stability, reliability, compact design, and low vibration and noise. This fan can play an important role in ensuring the normal operation of equipment and improving indoor air quality. With the continuous advancement of technology and the increasing demand for applications, we believe that the W1G200-HH77-52 fan will demonstrate its unique value in more fields, bringing users better and more efficient ventilation solutions.
