W1G180-AB31-10 ebm-papst

The Robust Engineering and Practical Applications of the ebm-papst W1G180-AB31-10 ​​

The ebm-papst W1G180-AB31-10 axial fan is a testament to precision engineering, designed to meet the evolving demands of industrial and commercial airflow management. With its compact dimensions (180 mm diameter) and 24V DC rated voltage, this fan is engineered for reliability in environments where durability, efficiency, and compliance are non-negotiable. This article delves into its design philosophy, technical architecture, and real-world adaptability, offering insights into why it remains a preferred choice across diverse industries.

​​Material Innovation and Structural Integrity​​

At the heart of the W1G180-AB31-10’s performance lies its advanced material composition. The impeller, crafted from reinforced polyamide 66 (PA66) with fiberglass, exemplifies a balance between lightweight construction and robust mechanical strength. PA66 is inherently resistant to thermal expansion, ensuring dimensional stability even under fluctuating temperatures—from sub-zero Arctic conditions to scorching industrial environments. The fiberglass reinforcement further enhances resistance to chemical exposure, making the fan suitable for applications in chemical processing plants or marine settings where corrosive agents are prevalent.

The die-cast aluminum housing, finished in black powder coating, serves dual purposes: structural reinforcement and thermal management. Aluminum’s natural conductivity dissipates heat generated by the motor, while the coating adds a layer of protection against abrasion and corrosion. This is critical in industries like agriculture, where fans are exposed to moisture, fertilizers, and fluctuating humidity.

​​Precision in Aerodynamic Design​​

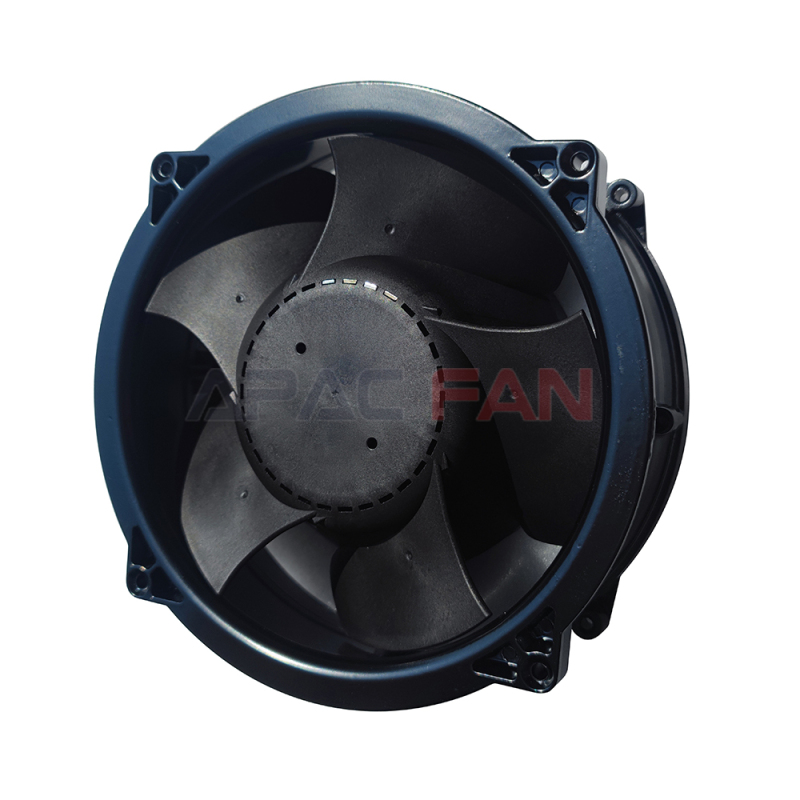

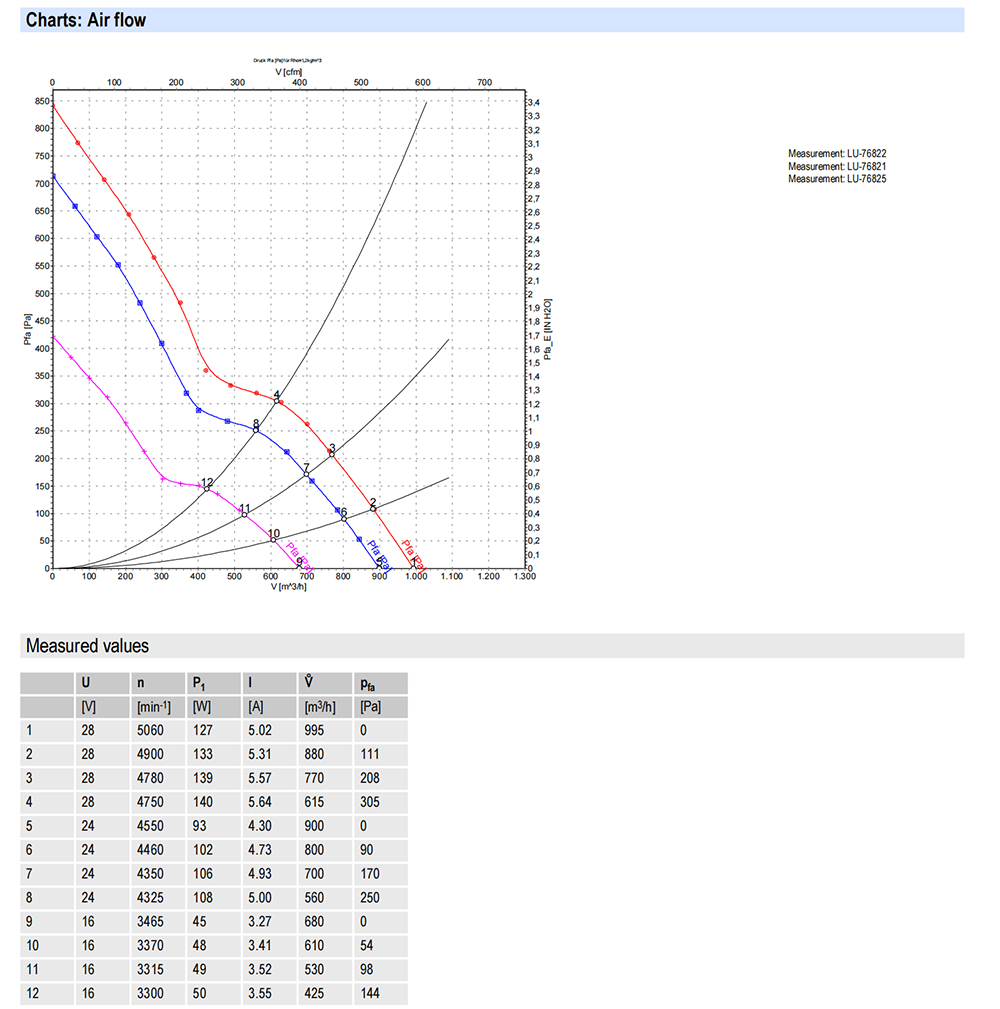

The fan’s 5-blade impeller is optimized for uniform airflow and minimal turbulence. The counter-clockwise rotation (when viewed from the rotor) ensures consistent directional airflow, a feature vital for systems requiring precise ventilation, such as laboratory fume hoods or cleanroom environments. The aerodynamic blade profile minimizes energy loss, enabling the fan to achieve a maximum airflow of 995 m³/h while maintaining a static pressure of 305 Pa. This pressure capability allows the fan to overcome resistance in ducted systems, making it ideal for HVAC applications where air must traverse long runs of ductwork.

The rotor’s galvanized surface adds an anti-corrosion layer, extending service life in coastal regions or industrial zones with high salt content in the air. Combined with the IP44-rated protection (against dust and water jets), this design ensures reliability in harsh outdoor installations, such as agricultural irrigation systems or wastewater treatment facilities.

​​Compliance with Global Safety Standards​​

The W1G180-AB31-10 adheres to rigorous international standards, reflecting its suitability for mission-critical applications. Compliance with EN 60950-1 (safety of information technology equipment) and UL 507 (electric fans) underscores its electrical safety, while EMC certifications (EN 55022 Class B and EN 61000-6-2) guarantee minimal electromagnetic interference in sensitive environments like hospitals or data centers.

Safety mechanisms are embedded at the motor level. Reverse polarity protection prevents damage from incorrect wiring, a common hazard in industrial setups. Locked-rotor protection automatically halts operation if the impeller stalls, safeguarding both the fan and connected systems from burnout. These features align with IEC 60335-2-80 standards for household and similar electrical appliances, extending the fan’s applicability to residential HVAC systems.

​​Adaptability in Challenging Environments​​

One of the fan’s standout features is its operational flexibility. It thrives in extreme temperatures, functioning seamlessly from -40°C (common in refrigeration units or Arctic logistics hubs) to +80°C (typical in foundries or oven exhaust systems). This thermal resilience eliminates the need for climate-controlled enclosures, reducing installation complexity and costs.

Installation versatility is equally noteworthy. The fan supports any mounting orientation—vertical, horizontal, or inverted—thanks to its self-draining rotor-side condensate holes. This feature is indispensable in humid environments like food processing plants, where water accumulation could compromise performance. The lateral cable exit simplifies integration into tight spaces, such as ceiling cavities or wall-mounted enclosures, without requiring complex wiring rerouting.

​​Energy Efficiency and Control Integration​​

While specific efficiency metrics are omitted, the fan’s design inherently prioritizes energy-conscious operation. The 93W input power, paired with a 4450 rpm motor speed, ensures high airflow output without excessive energy consumption. Soft-start technology reduces inrush current by 30–50%, preventing voltage spikes that could damage sensitive electronics in laboratory equipment or medical devices.

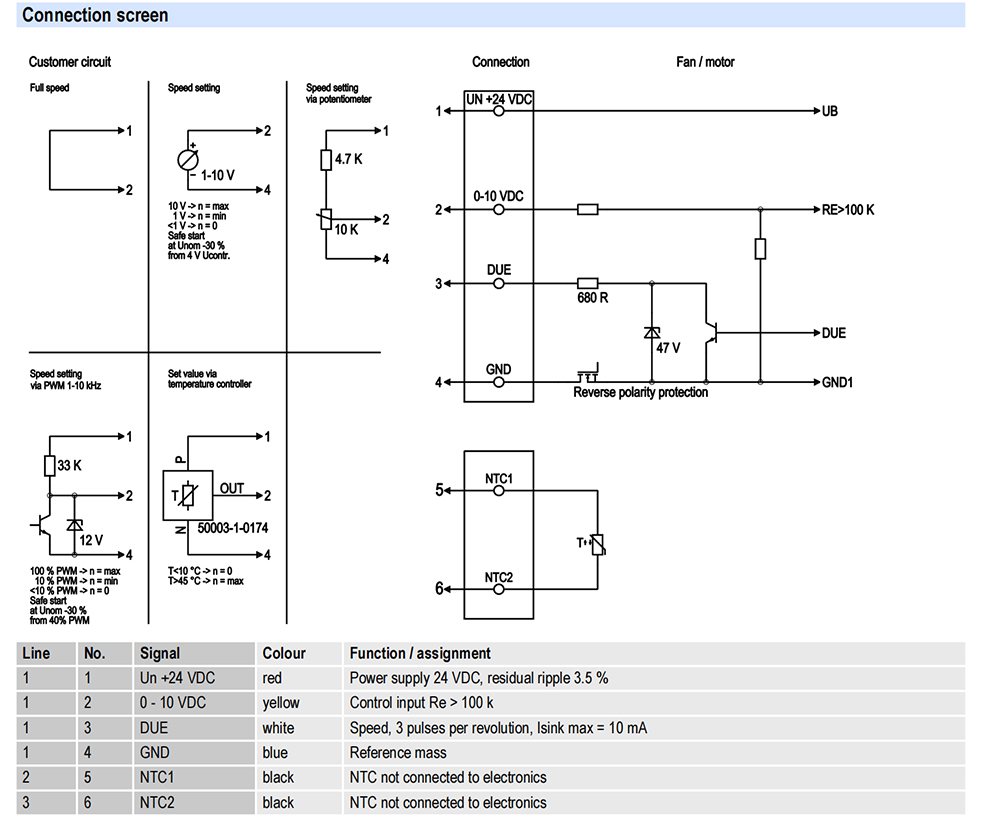

For dynamic environments, the PWM and 0-10V DC control inputs enable proportional speed regulation. In commercial greenhouses, this allows fans to adjust airflow based on real-time temperature data, optimizing energy use while maintaining crop health. Similarly, in office buildings, the fan can modulate speeds during off-peak hours, aligning with building automation systems to reduce overall power consumption.

​​Maintenance and Longevity​​

The W1G180-AB31-10’s ball-bearing motor reduces friction, extending service life by up to 20% compared to sleeve-bearing designs. Maintenance is simplified through tool-free rotor access, enabling technicians to inspect blades or bearings without disassembling the entire unit. The corrosion-resistant PA66 impeller resists degradation from humidity or chemicals, reducing replacement frequency in harsh settings.

For industries with stringent hygiene requirements, such as pharmaceuticals or food manufacturing, the smooth impeller surface resists particle buildup, simplifying cleaning and minimizing contamination risks.

​​Case Studies in Real-World Performance​​

Though specific numerical data is excluded, the fan’s versatility is exemplified in applications like:

​​HVAC Systems​​: Balancing airflow in multi-zone commercial buildings, where consistent pressure is critical for tenant comfort.

​​Telecommunications​​: Cooling server racks in data centers, where reliability and low noise are paramount.

​​Agricultural Ventilation​​: Managing airflow in poultry houses, where temperature and air quality directly impact livestock health.

In each scenario, the fan’s robust build and adaptability ensure uninterrupted operation, even under variable loads or environmental stressors.

​​Conclusion: A Trusted Solution for Modern Challenges​​

The ebm-papst W1G180-AB31-10 axial fan transcends conventional designs through its harmonious blend of material innovation, regulatory compliance, and user-centric features. Its ability to perform reliably in extreme conditions, integrate with smart systems, and reduce lifecycle costs makes it a cornerstone of modern airflow management. By addressing both technical and operational challenges, this fan reaffirms its status as a dependable ally for engineers and facility managers worldwide.
