| Brand： | ebmpapst |
| Part No： | W2D200-HH04-07 |
| Fan Type： | Axial Fan |

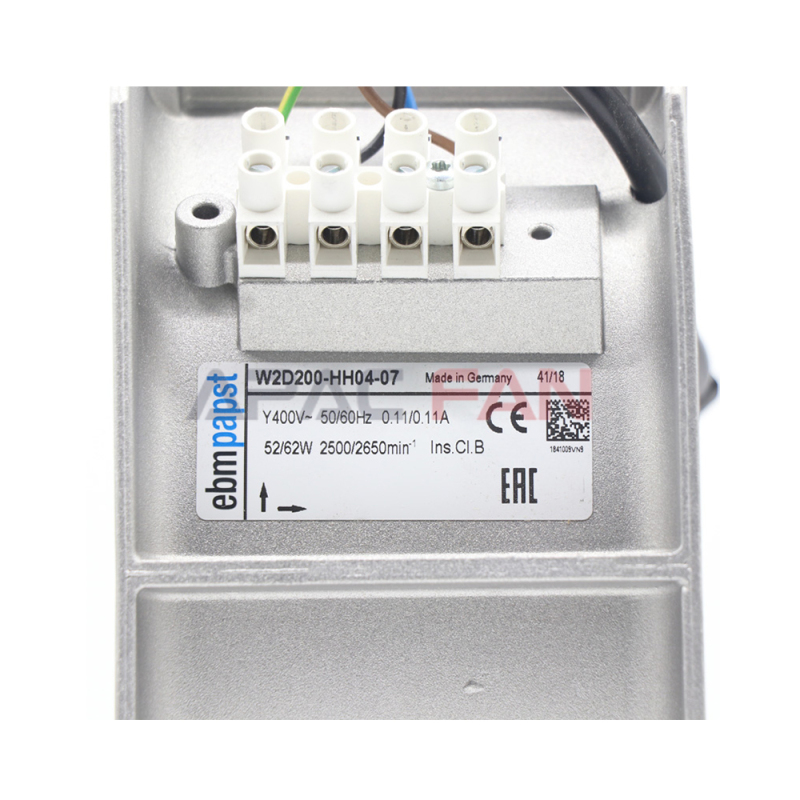

| Rated Voltage(V)： | 400 |
| Size(mm)： | 225*225*80 |

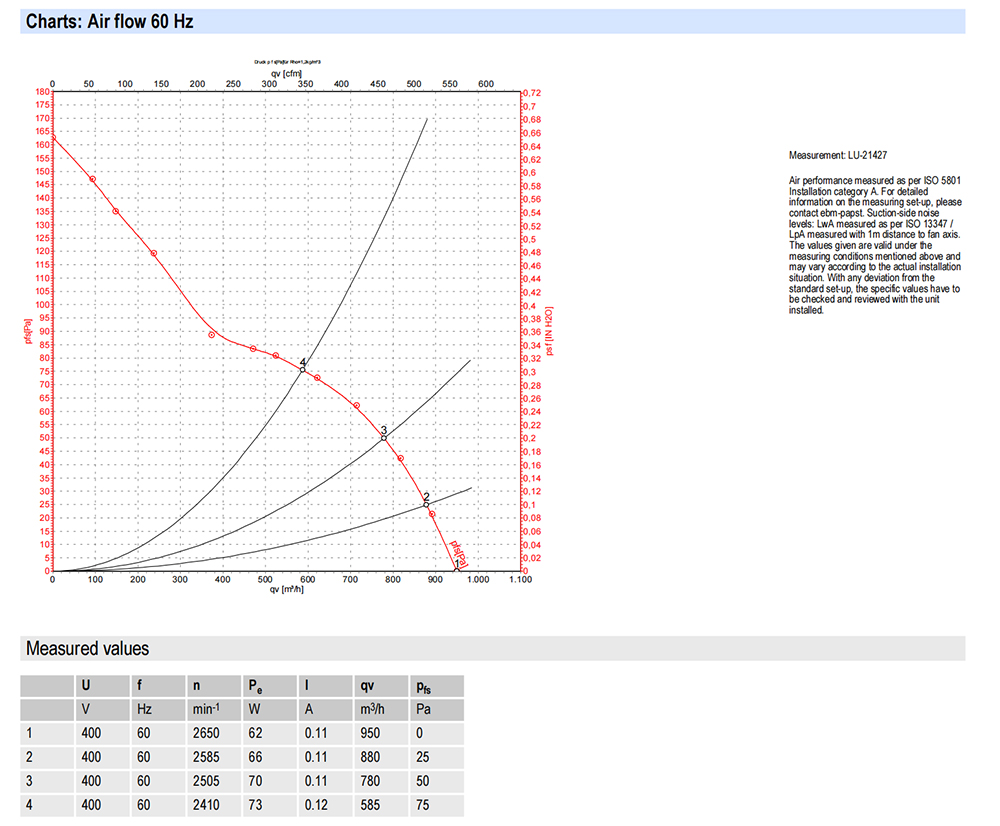

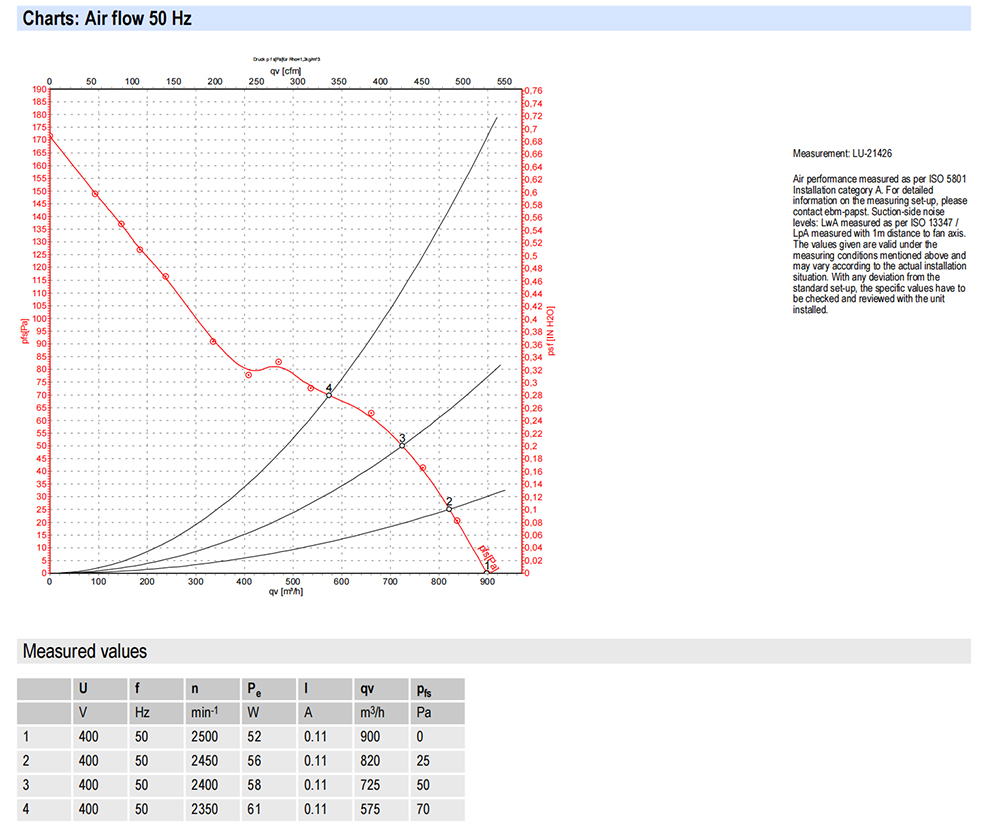

| Max.Air Flow(m³/h)： | 900 |
| Max.Pressure(Pa)： | 70 |
| Input Power(W)： | 52 |
| Speed(rpm)： | 2500 |
| Noise(db)： | N/A |

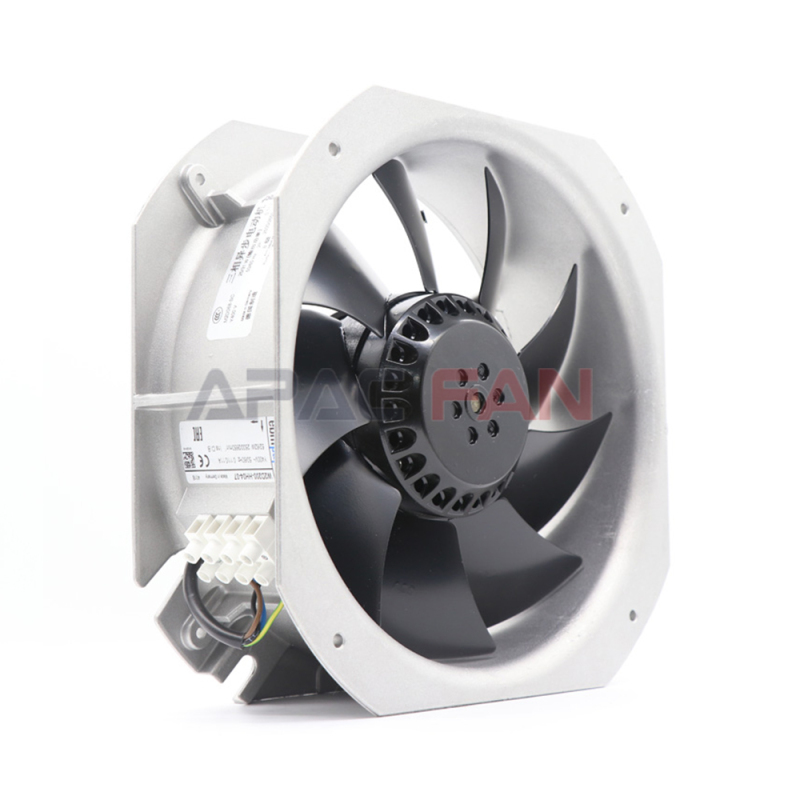

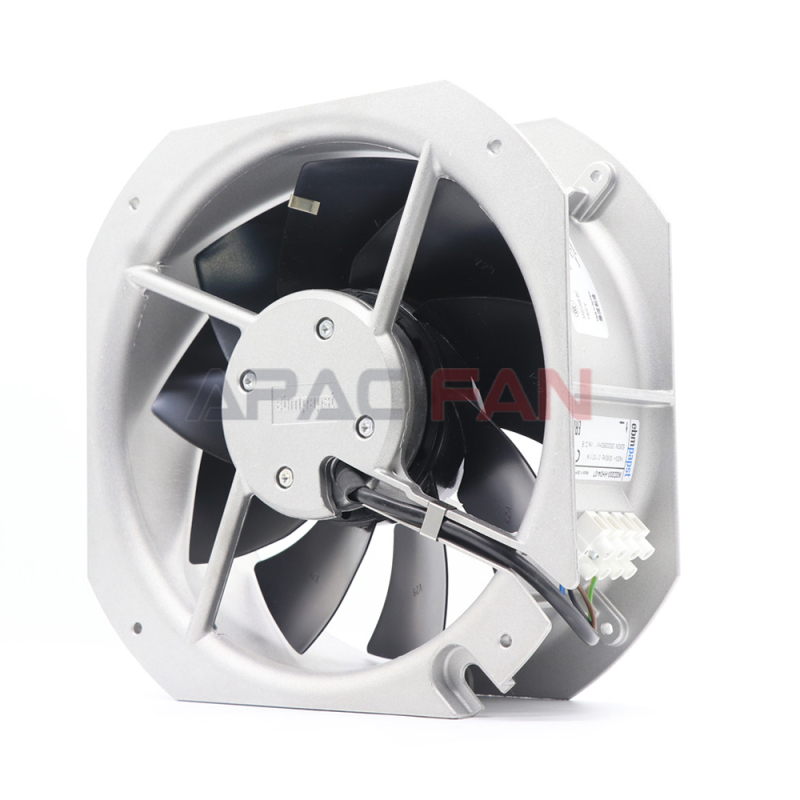

Among the numerous products of ventilation equipment, ebm-papst's W2D200-HH04-07 axial fan occupies an important place in the industrial and commercial fields with its unique design and excellent performance. The working principle of an axial fan is to promote air flow along the axial direction through the high-speed rotation of the blades, thereby achieving functions such as ventilation and heat dissipation. On the basis of this basic principle, W2D200-HH04-07 incorporates advanced technology and high-quality manufacturing processes, becoming an excellent ventilation equipment. Next, we will conduct a deep analysis of this fan from multiple dimensions such as brand background, product parameters, features, and application scenarios.
ebm-papst, as a well-known brand in the fan industry, has many years of research and development and production experience, and its products are known for their high quality and high performance. The brand has always been committed to technological innovation and constantly launches new products that meet market demand. The W2D200-HH04-07 axial fan is one of its many excellent products, reflecting the brand's relentless pursuit of quality and performance.
Rated voltage: 400V rated voltage, making it suitable for most industrial and commercial power environments. This standard voltage configuration ensures the stability and reliability of the fan during operation, reducing the risk of faults caused by voltage mismatch.

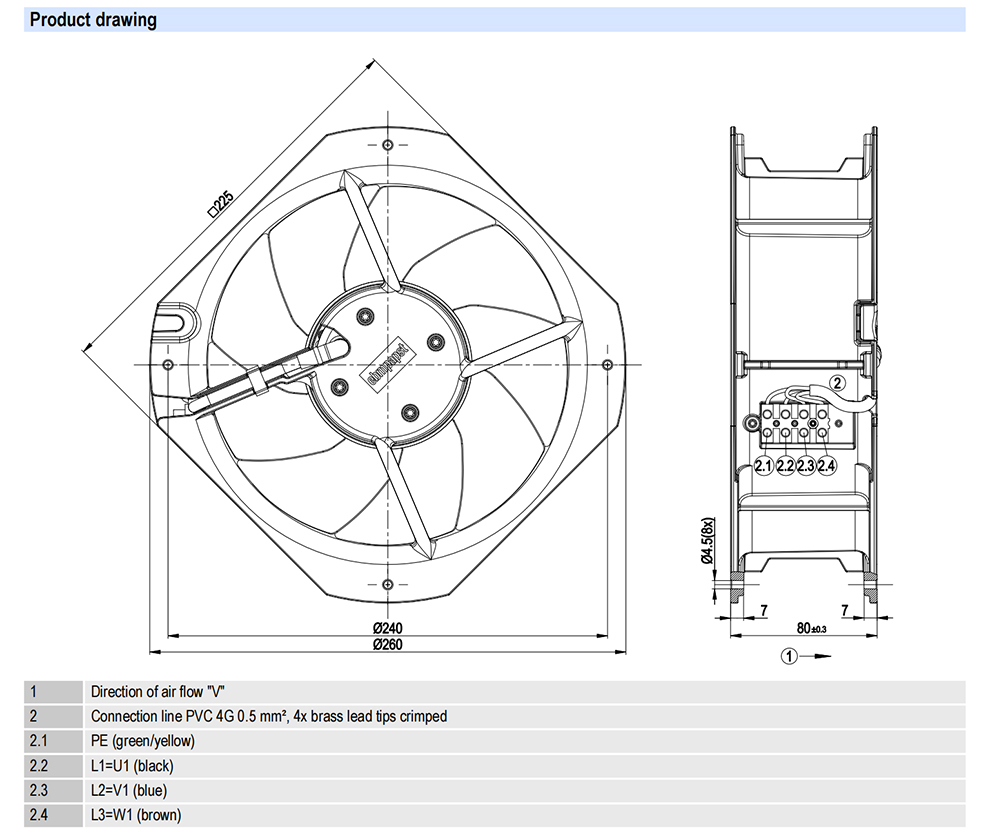

Size specification: Designed with dimensions of 225 × 225 × 80 millimeters, it ensures that the fan has a certain ventilation capacity while also considering installation flexibility. This compact size allows it to be easily installed in various devices or places with limited space, providing users with more application options.
Maximum air volume: 900m ³/h, which performs well among fans of the same type. This means that it can deliver a large amount of air per unit time, effectively achieving the function of ventilation and air exchange. In some small industrial plants or commercial places, such air volume is sufficient to meet basic ventilation needs and provide a good air environment for personnel and equipment.
Maximum pressure: 70Pa maximum pressure, allowing the fan to overcome a certain ventilation resistance and ensure smooth air flow in the ventilation duct. Even in the presence of certain bends or obstacles in the ventilation system, it can work stably to ensure ventilation effectiveness.
Input power: 52W input power, reflecting the energy-saving characteristics of the fan. While ensuring strong ventilation performance, energy consumption is minimized as much as possible, saving users operating costs. This has significant economic implications for long-term operating ventilation equipment.
Speed: A speed of 2500rpm is one of the key factors for achieving high air volume and high pressure. The high-speed rotating blades can quickly promote air flow and improve ventilation efficiency. Meanwhile, a reasonable speed design also ensures the stability and reliability of the fan during operation.
Efficient ventilation: With a high speed of 2500rpm and carefully designed blades, the W2D200-HH04-07 axial fan can achieve efficient ventilation. The shape and angle of its blades have been optimized to effectively reduce air flow resistance, increase air volume and pressure output. In practical applications, it can quickly exhaust indoor polluted air, introduce fresh air, and improve air quality.
Energy saving and low consumption: With a low input power of 52W, this fan consumes less energy during operation. This not only meets the requirements of energy conservation and environmental protection in today's society, but also reduces long-term operating costs for users. By adopting efficient motors and optimized aerodynamic design, the fan minimizes energy waste while ensuring ventilation performance.
Stable and reliable: High quality materials and advanced manufacturing processes are used to ensure the stability and reliability of the fan during long-term operation. The motor has undergone rigorous testing and optimization, and can operate continuously and stably at high speeds, reducing the probability of faults occurring. At the same time, the sturdy casing and reasonable structural design enable it to withstand a certain degree of external vibration and impact, and adapt to various complex working environments.
Easy installation: The installation holes of the fan are designed reasonably, making it convenient for users to install according to their actual needs. Whether it is wall mounted installation, ceiling hoisting, or embedded installation, it can be easily achieved. In addition, its compact size makes the installation process simpler and reduces the occupation of installation space.
In the industrial field, W2D200-HH04-07 axial flow fan can be used for equipment cooling and ventilation in small industrial plants. For example, in an electronic manufacturing workshop, it can help eliminate smoke and exhaust gases generated during the welding process, creating a healthy working environment for workers. In the cooling system of some mechanical equipment, this fan can also play an important role by quickly dissipating heat to ensure the normal operation of the equipment.
In the commercial field, fans can be used to improve indoor air quality in commercial places such as restaurants, cafes, small shopping malls, etc. It can promptly eliminate indoor odors and polluted air, introduce fresh air, and provide customers with a comfortable consumption environment. At the same time, in some commercial kitchens, it can help to remove the oil fumes generated during the cooking process, maintaining the cleanliness and hygiene of the kitchen.
Data center: In a data center, servers and other equipment generate a large amount of heat during operation. The W2D200-HH04-07 axial fan can be installed in the server cabinet to efficiently dissipate heat and ensure stable operation of the server. Its energy-saving and low consumption characteristics also meet the requirements of data centers for energy conservation and emission reduction.
In summary, the W2D200-HH04-07 axial fan has become a highly competitive product in the fan market due to its excellent parameter performance, outstanding features, and wide range of application scenarios. Whether in the industrial or commercial field, it can provide users with efficient and reliable ventilation solutions to meet the needs of different users.
