| Brand： | ebmpapst |
| Part No： | W2E200-HH38-05 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 225*225*80 |
| Max.Air Flow(m³/h)： | 935 |
| Max.Pressure(Pa)： | 120 |
| Input Power(W)： | 85 |
| Speed(rpm)： | 2800 |
| Noise(db)： | 61 |
W2E200-HH38-05 Axial Fan Detailed Introduction
ebm-papst, as a globally renowned fan manufacturer, has always held a leading position in the industry with high-quality and high-performance ventilation and drive solutions. The W2E200-HH38-05 axial fan is a highly representative product under this brand. Axial flow fans, with their unique working mode, allow air to flow along the axial direction, efficiently achieving functions such as ventilation, heat dissipation, etc., and are widely used in many fields such as industry, commerce, and civilian use.
Rated voltage
The rated voltage of the W2E200-HH38-05 axial fan is 230V. This standard voltage is extremely common in industrial and commercial power environments, allowing the fan to be easily connected to various power systems without the need for complex voltage conversion equipment, greatly improving the product's versatility and applicability. The stable 230V voltage input provides a solid guarantee for the stable operation of the fan, reducing the potential performance instability caused by voltage fluctuations.

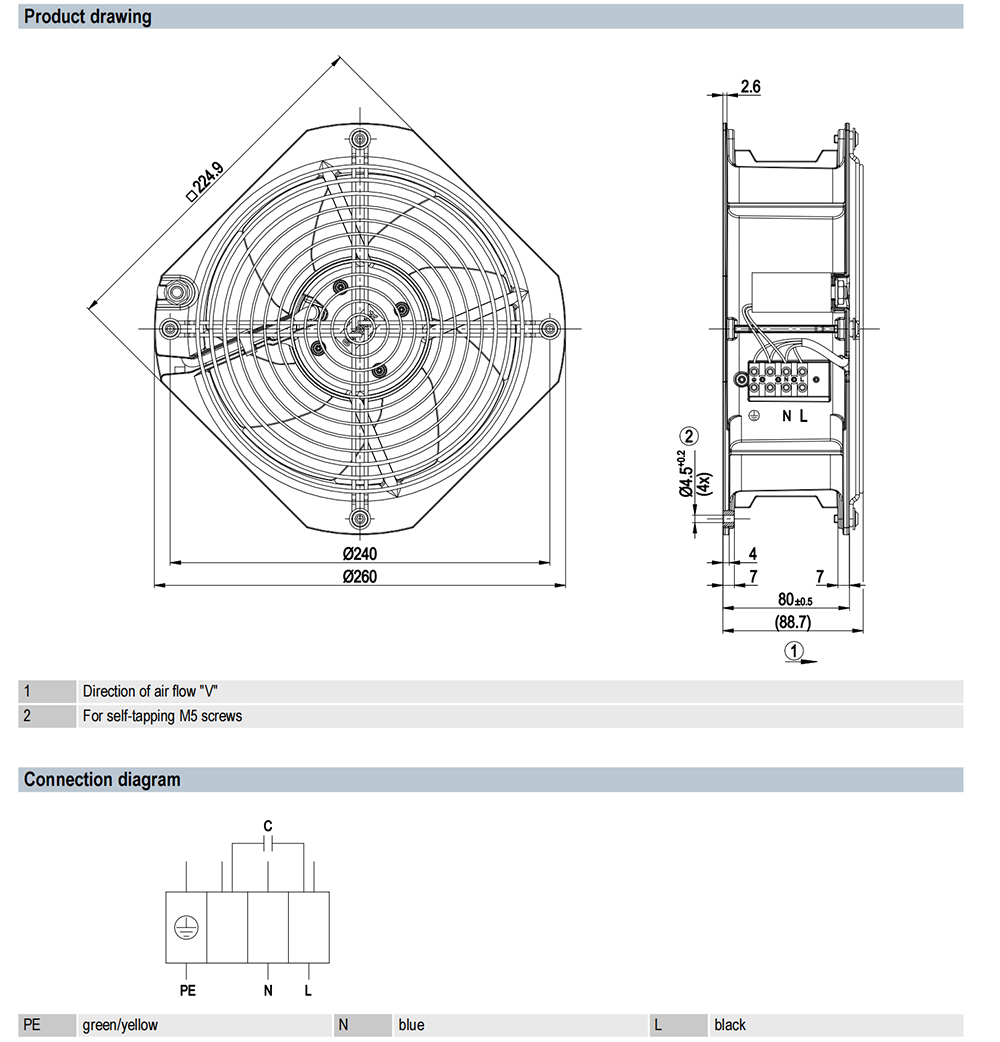

Size specifications
The size of the fan is 225 * 225 * 80 millimeters, and this compact design gives it strong flexibility during installation. Whether installed inside a small cabinet or in ventilation ducts with limited space, it can easily adapt. The compact structure not only saves installation space, but also improves the stability of the fan during operation to a certain extent, reducing the risk of noise and damage caused by vibration.

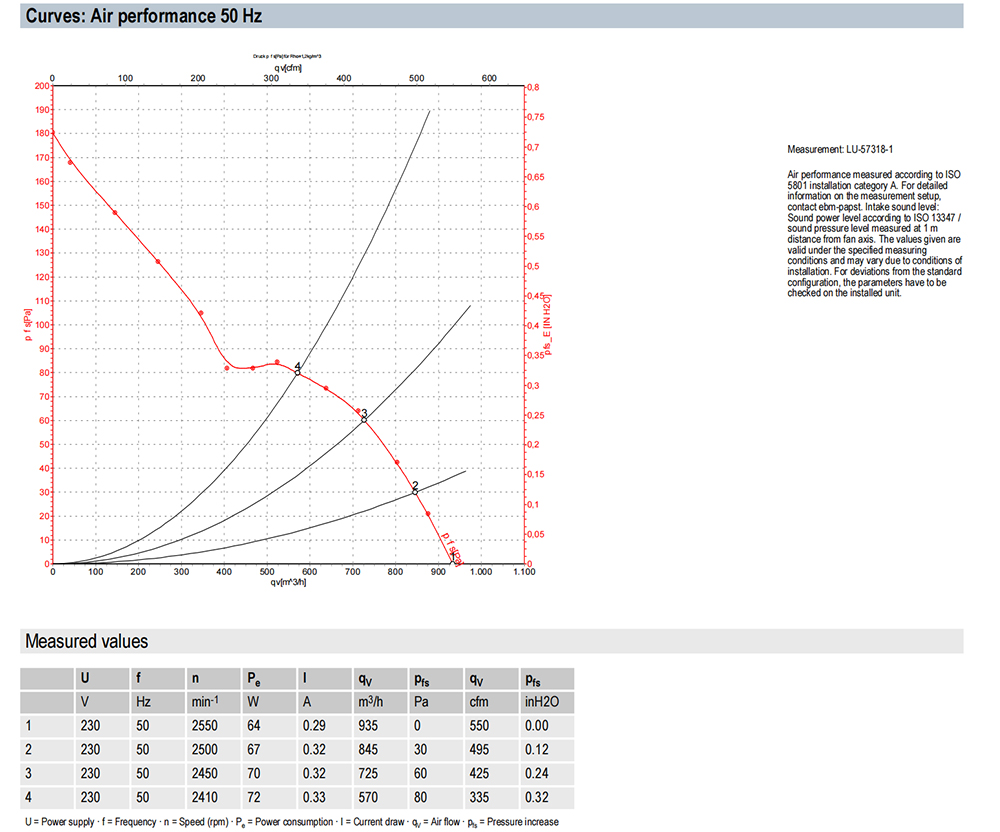

Maximum air volume
The maximum air volume of this fan can reach 935m ³/h. High air volume means that the fan can deliver a large amount of air per unit time, thereby quickly and effectively achieving the purpose of ventilation or heat dissipation. In application scenarios that require rapid removal of indoor polluted air and sufficient cooling air for equipment, this high air volume characteristic can ensure efficient ventilation. For example, in large workshops, the hot air and exhaust gases generated during the production process can be quickly discharged to maintain fresh and suitable indoor air temperature.
Maximum pressure
The maximum pressure of the W2E200-HH38-05 axial fan is 120Pa, which has significant advantages compared to similar products. The higher pressure allows the fan to better overcome the resistance in the ventilation system. In situations where ventilation ducts are long, have multiple bends, or are equipped with filtering devices, the ventilation system will generate significant resistance, affecting the normal flow of air. The maximum pressure of 120Pa of the fan can effectively push the air through these resistances, ensuring the stable operation of the ventilation system.
Input power
The input power is 85W, which not only ensures high air volume and high pressure performance of the fan, but also reflects its relatively high energy consumption. However, considering its excellent ventilation and pressure performance, this energy investment is worthwhile. In practical applications, users can reasonably evaluate the balance between energy consumption and performance based on specific needs and usage scenarios.
Speed
The speed of the fan is 2800rpm, and a higher speed is one of the key factors that enable it to generate high air volume and high pressure. During the operation of a fan, the speed directly affects the volume of air and pressure. The speed of 2800rpm ensures that the fan can quickly draw in and exhaust air, achieving efficient ventilation and heat dissipation.
Noise level
The noise level is 61db, and a certain degree of noise is inevitable during the operation of the fan. The noise level of 61db is within a relatively reasonable range and will not cause excessive interference to the surrounding environment and personnel. However, in application scenarios with high noise requirements, such as hospitals, libraries, etc., some noise reduction measures still need to be considered.
Efficient ventilation and pressure performance
The W2E200-HH38-05 axial fan, with its maximum air volume of 935m ³/h and maximum pressure of 120Pa, can perform well in various ventilation systems. Whether in large-scale industrial plants or complex ventilation duct networks, air transportation and exchange can be quickly and effectively achieved, ensuring the efficiency and stability of ventilation effects.
Compact design and flexibility
The compact size design of 225 * 225 * 80mm provides the fan with extremely high flexibility during installation and use. Suitable installation methods and locations can be selected according to different application scenarios and installation requirements, such as wall mounted, embedded, etc. This flexibility enables the fan to adapt to various complex installation environments and meet the needs of different users.
Stable and reliable operation
The ebm-papst brand has always focused on product quality and reliability, and the W2E200-HH38-05 axial fan is no exception. The use of high-quality materials and advanced manufacturing processes ensures the stability and reliability of the fan during long-term operation. The key components such as motors and blades have been carefully designed and rigorously tested to adapt to various harsh working environments, reduce the probability of failures, and lower the user's operating costs and maintenance workload.
Reasonable noise control
Despite the high speed of the fan, the noise level is controlled at 61db through optimized design and advanced noise reduction technology. While ensuring efficient ventilation and pressure performance, the fan minimizes noise interference to the surrounding environment and personnel, making it suitable for most application scenarios.
Industrial sector
In industrial production, many devices generate a large amount of heat and exhaust gas during operation. For example, in a steel smelting plant, high-temperature furnaces produce a large amount of hot air and harmful gases. The W2E200-HH38-05 axial fan can be installed in the ventilation system of the workshop to quickly exhaust these hot air and harmful gases outdoors while introducing fresh air, improving the working environment of the workshop, ensuring the health of workers and the normal operation of equipment. In the electronic manufacturing workshop, electronic devices generate heat during operation. If they cannot dissipate heat in a timely manner, it will affect the performance and lifespan of the equipment. This fan can be installed on the casing of the equipment or in the ventilation duct to provide sufficient cooling air for the equipment and ensure its stable operation.
Business field
In commercial places such as shopping malls, supermarkets, hotels, etc., where people are dense, the air is prone to pollution. The W2E200-HH38-05 axial fan can be installed in ventilation systems to enhance indoor air circulation and improve air quality. Its high air volume and high pressure performance can quickly and effectively remove indoor polluted air, introduce fresh air, and provide a comfortable environment for customers and employees. In underground parking lots, car exhaust can accumulate, and this fan can be used to exhaust the exhaust, reduce air pollution, and ensure the health of personnel.
Data Center
The servers and other equipment in the data center generate a large amount of heat during operation. If they cannot dissipate heat in a timely manner, it can lead to a decrease in server performance or even damage. The W2E200-HH38-05 axial fan can be installed in the server cabinet to provide sufficient cooling air for the server. Its compact size and efficient ventilation performance can adapt to the limited space inside server cabinets, ensuring stable operation of servers in suitable temperature environments and improving the efficiency and reliability of data processing.
The W2E200-HH38-05 axial fan has a wide range of application prospects in various fields such as industry, commerce, and data centers due to its excellent parameter performance and product characteristics. Its efficient ventilation and pressure performance, compact design, stable and reliable operation, and reasonable noise control can meet the needs of different users and provide high-quality ventilation and heat dissipation solutions for them. It can play an important role in improving the working environment and ensuring equipment operation.
