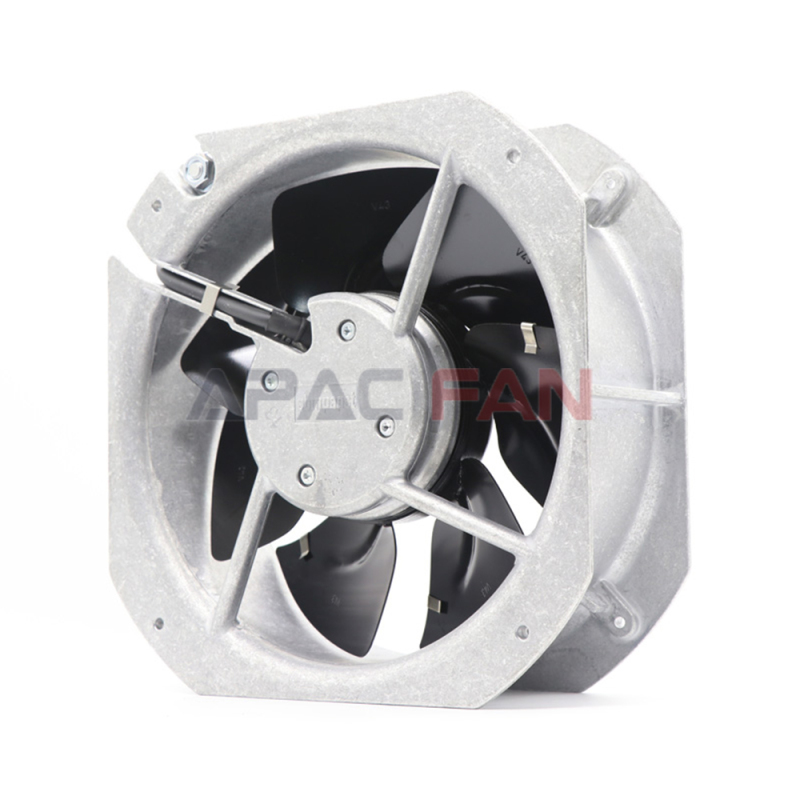

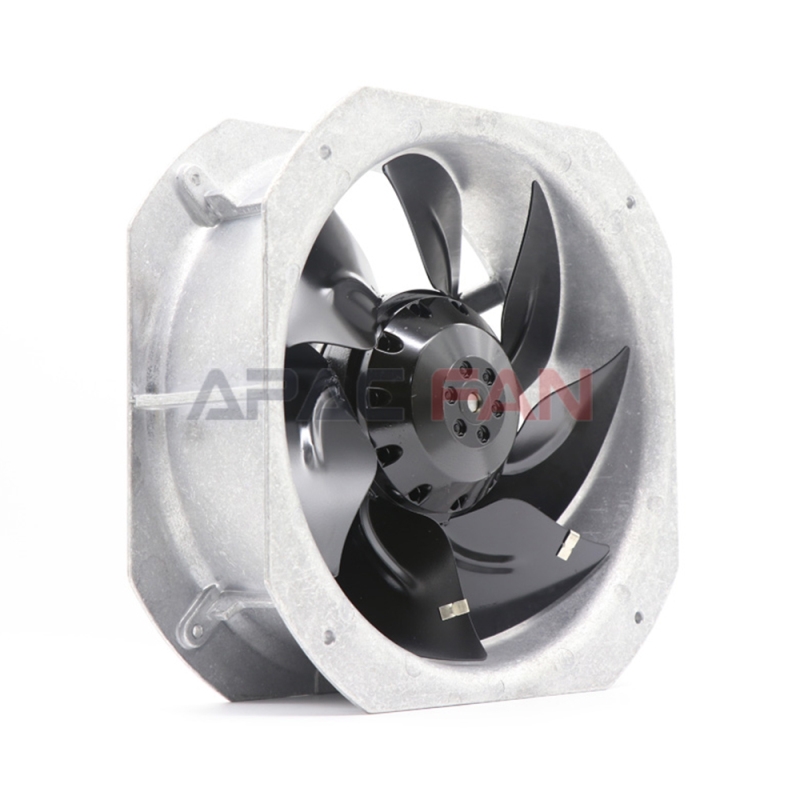

AC axial compact fan sickled blades (S series)
| Brand： | ebm-papst |
| Part No： | W2E200-HK38-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 225*225*80 |
| Max.Air Flow(m³/h)： | 880 |
| Max.Pressure(Pa)： | 95 |
| Input Power(W)： | 80 |
| Speed(RPM)： | 2800 |
| Noise(dB)： | 61 |
| Max. ambient temperature (°C): | 60 |
| Direction of air flow | V |
| Direction of rotation: | Counter-clockwise, seen on rotor |
| Type of protection: | IP 44 |
| Insulation class: | B |
| Motor bearing: | Ball bearing |
| Approval: | CCC; CSA C22.2 Nr.77; GOST; UL 2111; VDE |
The W2E200-HK38-01 axial fan is manufactured by the well-known brand ebm-papst. ebm-papst has an excellent reputation and profound technical accumulation in the field of wind turbine manufacturing, renowned for its innovative design, exquisite craftsmanship, and strict quality control. This axial fan is a classic product under the brand, designed to meet various ventilation and heat dissipation needs. It adopts the principle of axial flow ventilation, which drives the blades to rotate through the motor, making the air flow along the axial direction. It has the characteristics of high efficiency, stability, and reliability, and is widely used in various fields such as industry, commerce, and civil use.
Rated voltage
The rated voltage of this fan is 230V, which enables it to adapt to most common power systems. A stable 230V voltage input is the foundation for the normal and efficient operation of the fan. In practical use, as long as the power supply voltage remains within a reasonable fluctuation range, the fan can operate at stable power and speed, ensuring consistency in ventilation and heat dissipation effects. At the same time, the 230V voltage design also makes it more convenient for fans to integrate with other electrical equipment and better integrate into various electrical systems.

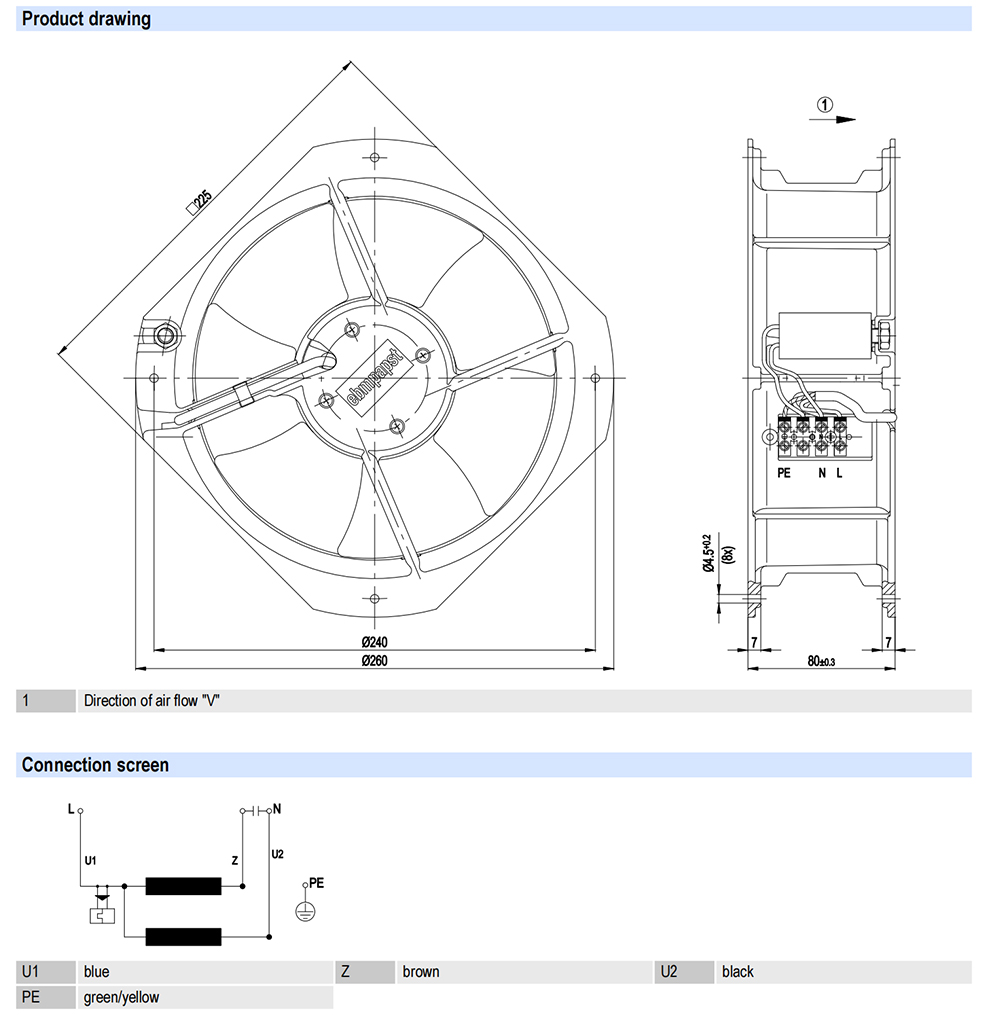

Size specifications
The size of the fan is 22522580 millimeters, and this compact design gives it high installation flexibility. The smaller size means it can be easily installed in devices or places with limited space, such as electronic device cases, small ventilation ducts, etc. At the same time, reasonable size design also ensures the optimized layout of the internal structure of the fan, which is conducive to smooth air circulation and thus improves ventilation and heat dissipation efficiency. In addition, the compact size also facilitates the transportation and storage of fans, reducing logistics costs and storage space requirements.

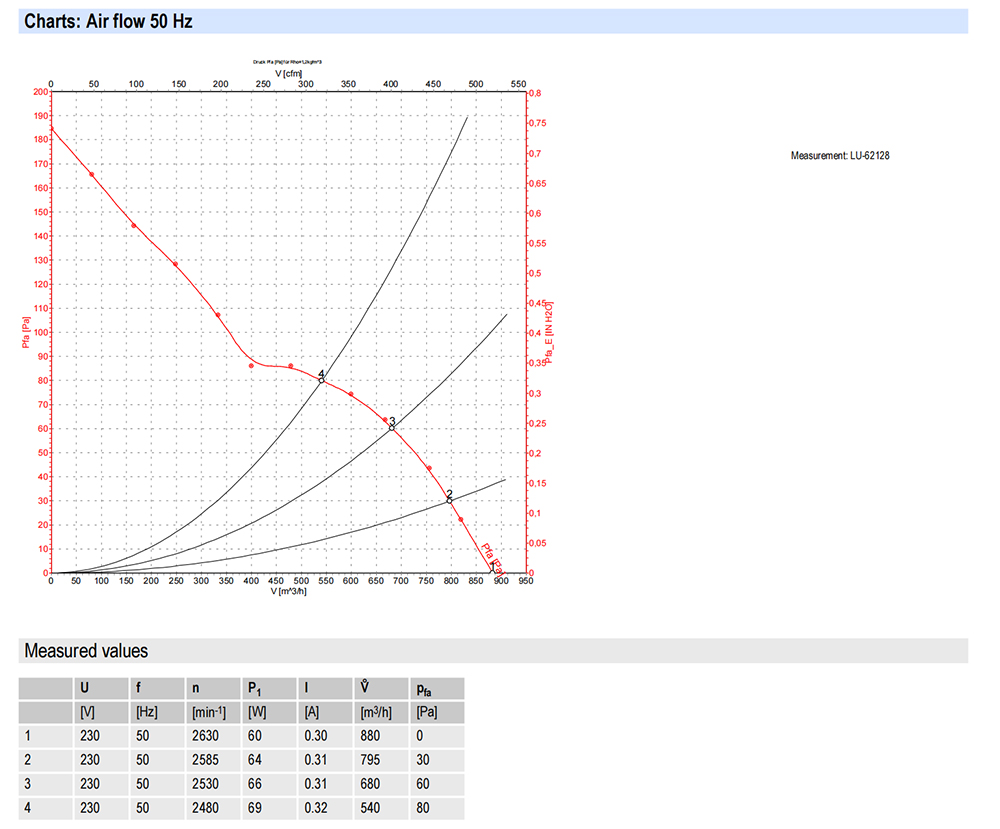

Maximum air volume
The maximum air volume can reach 880m ³/h, indicating that the fan has strong air conveying capacity. In ventilation and heat dissipation applications, a larger air volume can quickly remove indoor polluted air, introduce fresh air, or take away the heat generated by equipment, achieving efficient air exchange and heat dissipation. For example, in a small industrial workshop, the fan can achieve comprehensive air renewal in the workshop in a short period of time, improving the working environment; In electronic device heat dissipation, the heat generated by the device can be dissipated in a timely manner to ensure the normal operation of the device.
Maximum pressure
The maximum pressure is 95Pa, which means that the fan has a strong ability to overcome resistance. In ventilation systems, if there are long ventilation ducts, many pipe bends, or filtering devices, air flow will be hindered to some extent. With its maximum pressure of 95Pa, this fan can overcome these resistances to a certain extent, ensuring that air can be smoothly delivered to the designated location and ensuring the normal operation of the ventilation system. For example, in some complex ventilation duct networks, fans can provide sufficient pressure to evenly distribute air throughout the system.
Input power
The input power is 80W, which is relatively reasonable compared to its larger air volume and pressure. The lower input power reflects the energy-saving characteristics of the fan, which can save users a lot of electricity costs during long-term operation. At the same time, lower power also means that the fan generates less heat during operation, which helps improve the reliability and service life of the fan, and reduces failures and damage caused by overheating.
Speed
The speed is 2800rpm, and a higher speed is one of the key factors for the fan to generate large flow and high pressure. During high-speed rotation, the blades of the fan can quickly push air, forming a strong airflow. This high-speed design enables the fan to achieve rapid air exchange in a short period of time, meeting the urgent needs of ventilation and heat dissipation. For example, when the device suddenly overheats, a high-speed fan can quickly increase the airflow and lower the device temperature.
Noise level
The noise level is 61dB, which is relatively low during operation. The lower noise level ensures that the fan does not cause significant interference to the surrounding environment and personnel during use. Whether in an office, home, or industrial production environment, users can use fans in a quiet atmosphere without being affected by fan noise during work, study, and rest. This feature gives fans a great advantage in places with high noise requirements.
Efficient ventilation and heat dissipation
Combined with its maximum airflow of 880m ³/h and maximum pressure of 95Pa, this fan performs excellently in terms of ventilation and heat dissipation. Being able to quickly and effectively deliver air to where it is needed, whether it is for equipment cooling or space ventilation, can achieve ideal results in a short period of time. In the field of electronic devices, it can promptly remove the heat generated by electronic components, ensuring the stability of device performance; In ventilation scenarios, it can quickly update indoor air and improve air quality.
Energy saving and low-noise design
The input power of 80W reflects its energy-saving advantages and meets the modern society's demand for energy-saving and environmentally friendly products. Meanwhile, the 61dB noise level ensures that the fan does not generate excessive noise interference during operation. This energy-saving and low-noise design enables the fan to save costs for users and provide a quiet and comfortable environment during long-term use, with high cost-effectiveness.
Stable and reliable operation
The high-quality manufacturing standards of ebm-papst ensure the stability and reliability of the fan. The key components of the fan, such as the motor and blades, are made of high-quality materials and advanced manufacturing processes, and have undergone strict quality inspection and reliability testing. During long-term operation, it can maintain stable performance and is less prone to malfunctions. Even in harsh working environments such as high temperature, high humidity, and high dust, fans can still operate normally, reducing downtime and maintenance costs caused by equipment failures.
Compact structural design
The size design of 22522580 millimeters makes the fan structure compact, easy to install and use. It can be easily installed in various devices and places without taking up too much space. The compact structure also makes the fan more convenient for transportation and storage, reducing logistics costs and storage space requirements. Meanwhile, this design also facilitates the integration of fans with other devices, improving the overall space utilization of the system.
Good compatibility
The rated voltage of this fan is 230V and it is compatible with most common power systems. This makes it easy to connect to the power supply in different application scenarios without the need for complex power conversion. In addition, its compact size and standard installation interface also enable it to be well matched with various ventilation ducts, equipment chassis, etc., improving the versatility and applicability of the fan.
Industrial sector
In industrial production, this fan can be used for heat dissipation and ventilation of various equipment. For example, in an electronic device manufacturing workshop, it can dissipate heat from electronic components and equipment on the production line, prevent equipment from being damaged due to overheating, and improve production efficiency and product quality. In small industrial plants, it can be used as part of the ventilation system to exhaust polluted indoor air and introduce fresh air, improving the working environment. In addition, in some mechanical equipment such as machine tools, welding machines, etc., this fan can also be used for heat dissipation to ensure the normal operation of the equipment.
Business field
In commercial places such as shopping malls, supermarkets, hotels, etc., this fan can be used for ventilation and circulation of air conditioning systems. It can improve the cooling and heating effects of air conditioning, make the indoor temperature more uniform, and provide customers with a comfortable shopping and resting environment. In data centers and server rooms, fans can dissipate heat from servers, ensuring their stable operation and preventing data loss and system failures caused by overheating. In some small commercial kitchens, it can exhaust fumes and odors from the kitchen, keeping the air fresh.
Household field
In households, this fan can be used for ventilation and air exchange in places such as bedrooms, living rooms, kitchens, etc. In the bedroom, it can provide natural ventilation at night, helping people fall asleep and improve sleep quality. In the kitchen, it can promptly remove the oil fumes and odors generated during the cooking process, keeping the kitchen air fresh. In some small family workshops or studios, fans can also be used for ventilation and heat dissipation, improving the comfort of the working environment.
The W2E200-HK38-01 axial fan, with its reasonable parameter design, excellent product features, and wide range of applications, has become a reliable ventilation and cooling device. It can play an important role in industrial production, commercial operations, and household life, providing users with efficient, stable, and quiet air flow solutions. When choosing ventilation and cooling equipment, users can fully consider the advantages of the fan and make reasonable choices and applications based on actual needs.
