sickled blades (S series)
| Brand： | ebm-papst |
| Part No： | W2E200-HK38-C01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |

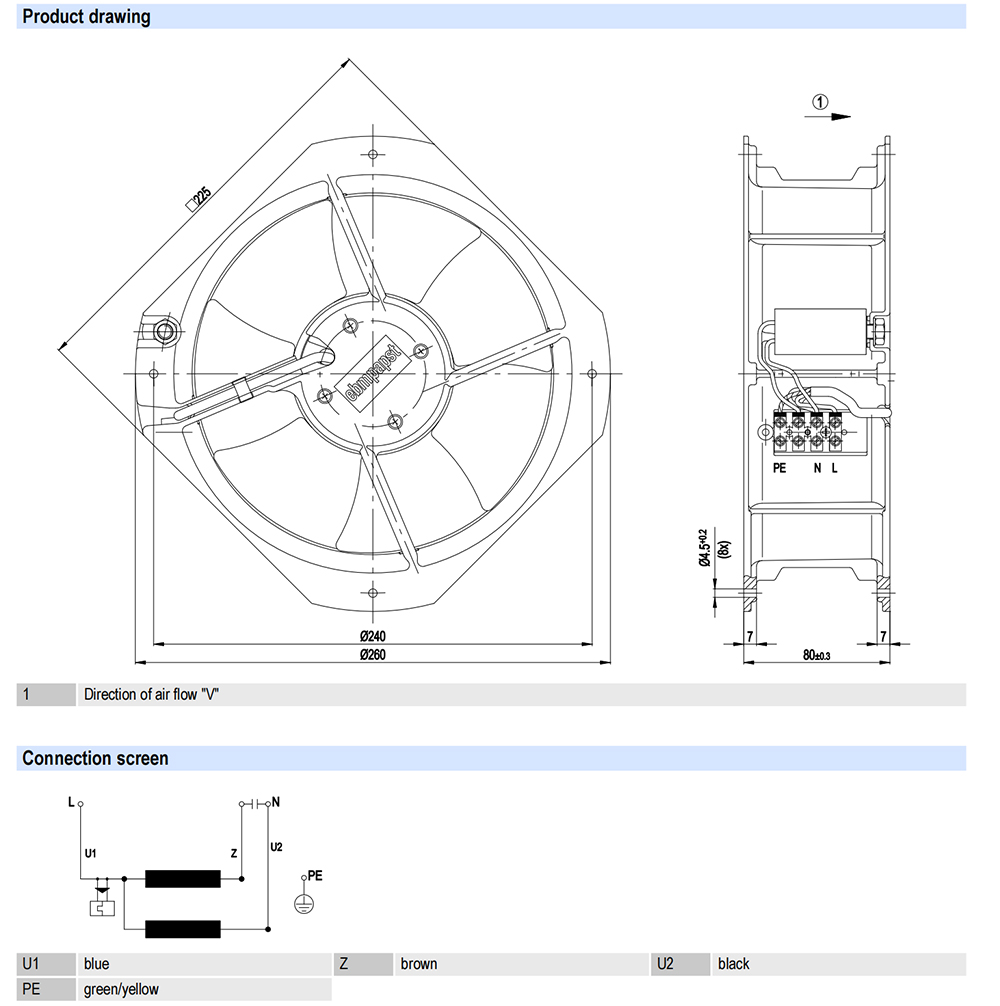

| Size(mm)： | 225*225*80 |

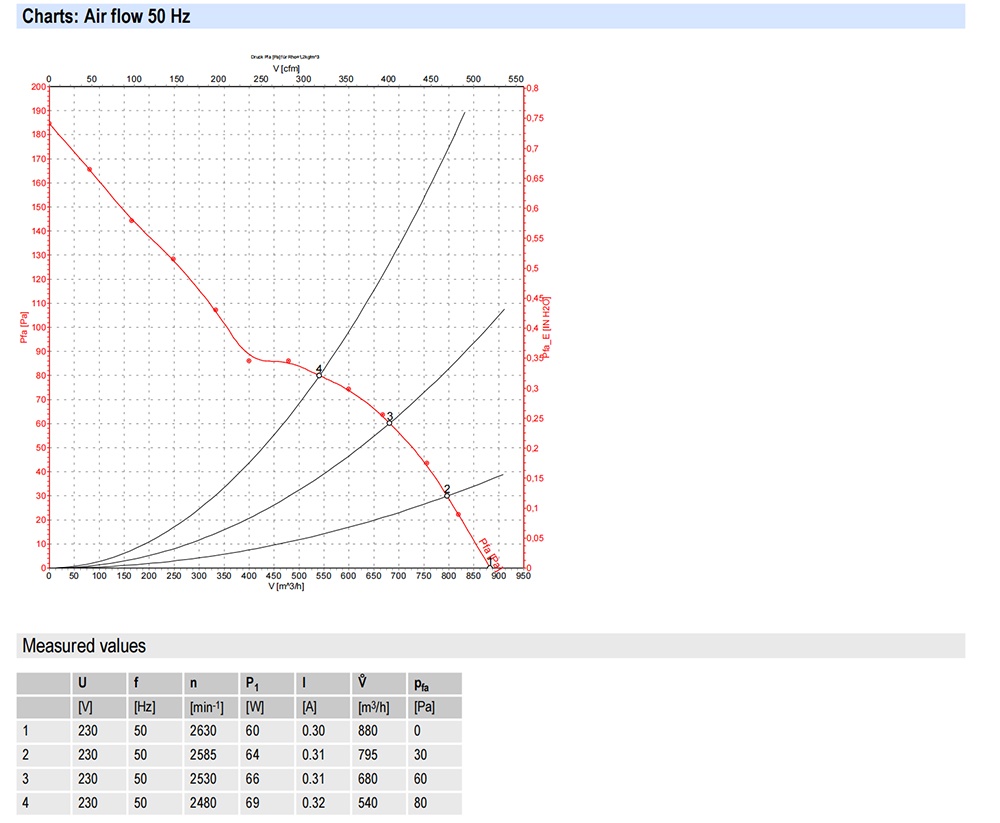

| Max.Air Flow(m³/h)： | 880 |
| Max.Pressure(Pa)： | 80 |
| Input Power(W)： | 69 |
| Speed(RPM)： | 2630 |
| Noise(dB)： | N/A |
| Leakage Current: | < 0.75 mA |
| Size: | 200 mm |
| Operation Mode: | S1 |
| Direction of Rotation: | Counter-clockwise, seen on rotor |
| Mounting Position: | Any |
| Electrical Leads: | Via terminal strips, integrated capacitor connected via terminal strips |
| Humidity Class: | F0 |
| Direction of Air Flow: | "V" |
| Insulation Class: | "B" |
| Cable Exit: | Variable |
| Condensate Discharge Holes: | None |
| Motor Bearing: | Ball bearing |
| Mass: | 2.1 kg |
| Material of Blades: | Sheet steel, coated in black |
| Material of Wall Ring: | Die-cast aluminium |
| Motor Protection: | Thermal overload protector (TOP) wired internally |
| Product Conforming to Standard: | EN 60335-1 |
| Surface of Rotor: | Coated in black |
| Number of Blades: | 7 |
| Type of Protection: | IP 44; Depending on installation and position |
| Protection Class: | I |
| Max. Permissible Ambient Motor Temp. (Transp./ Storage): | + 80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | - 40 °C |
| Approval: | CCC; UL; VDE |
Ventilation equipment plays a crucial role in modern industry and daily life. Among them, axial flow fans are widely used in various scenarios due to their high efficiency and practicality. The W2E200-HK38-C01 axial fan under ebm-papst has become a high-quality choice for many users in terms of ventilation needs due to its excellent performance and advanced technology. This article will provide a comprehensive and detailed introduction to the fan, covering multiple aspects such as brand background, product parameters, features, and application scenarios, aiming to help readers gain a deeper understanding of this product.
ebm-papst is a well-known global enterprise in the field of ventilation technology, with a long history and excellent reputation. For many years, the company has been committed to the research and production of ventilation equipment, and has won wide recognition in the global market with innovative design concepts, strict quality control systems, and a comprehensive after-sales service network. As an important member of its product line, the W2E200-HK38-C01 axial fan fully embodies the technical strength and quality pursuit of ebm-papst.
Rated voltage
The rated voltage of W2E200-HK38-C01 axial fan is 230V, which is a common voltage specification that allows it to be easily connected to most power systems. Whether it is a standard power supply in industrial settings or a conventional socket in commercial buildings and home environments, it can easily meet the power needs of this fan. This universality greatly reduces the adaptation cost and installation difficulty for users during use.
Size specifications
The size of the fan is 225 * 225 * 80 millimeters, and its compact design gives it a significant advantage in space utilization. Compared to some large ventilation equipment, this fan is compact in size and does not take up too much space, making it suitable for various installation environments. Whether it is inside a small cabinet or in equipment with strict space layout requirements, it can be easily installed and play its ventilation role.
Maximum air volume
The maximum air volume can reach 880m ³/h. Although this value is relatively small compared to some large axial fans, it is sufficient to meet the demand in small and medium-sized ventilation scenarios where it is suitable. For example, in a small electronic equipment cabinet, it can quickly and effectively dissipate the heat generated by the equipment, maintaining a stable temperature inside the cabinet; In some small indoor spaces, rapid air circulation can also be achieved to improve air quality.
Maximum pressure
The maximum pressure is 80Pa, which allows the fan to ensure effective air circulation even when facing a certain ventilation resistance. In some systems with short ventilation ducts and low resistance, this fan can easily overcome resistance and deliver air to where it is needed. For example, in some simple ventilation systems, such as local ventilation devices in small laboratories, it can ensure that air flows along a predetermined path, achieving the purpose of ventilation and air exchange.
Input power
The input power is only 69W, indicating that the fan has excellent energy-saving performance. In the current era of pursuing energy conservation and environmental protection, low-power operation not only meets environmental requirements, but also saves users a lot of operating costs. Compared with some traditional ventilation equipment, the W2E200-HK38-C01 axial fan can significantly reduce energy consumption and have higher energy utilization efficiency while achieving the same ventilation effect.
Speed
The speed is 2630rpm, which allows the fan to generate a large amount of air in a short period of time. At the same time, this also ensures the response speed of the fan, which can quickly respond to changes in ventilation requirements. For example, when the heat generation of the device suddenly increases, the fan can quickly increase the air flow speed, timely remove heat, and protect the normal operation of the device.
Noise situation
The noise label in the product parameters is not applicable, but ebm-papst has always focused on noise control of the product. With advanced design and manufacturing processes, the noise generated by this fan during operation is usually at a low level and does not cause significant interference to the surrounding environment. This makes it highly advantageous in applications that are sensitive to noise, such as offices, laboratories, medical equipment, etc.
Efficient ventilation
Despite its compact size, the W2E200-HK38-C01 axial fan has efficient ventilation capabilities. Its unique blade design and aerodynamic optimization make the flow of air inside the fan smoother, achieving maximum air output with minimal energy loss. In some electronic device cooling applications, it can quickly dissipate the heat generated by the device, ensuring that the device operates in a suitable temperature environment and extending its service life.
Energy saving design
As mentioned earlier, the low input power of the fan reflects its energy-saving characteristics. In addition to efficient motor design, the overall structure of the fan has also been carefully optimized to reduce unnecessary energy loss. For example, the casing of the fan is made of special materials and processes, which can effectively reduce air leakage and improve ventilation efficiency. This energy-saving design not only reduces the operating costs for users, but also conforms to the concept of sustainable development and contributes to environmental protection.
Compact and portable
The compact size is a major highlight of this fan. It can be easily installed in various devices and places with limited space, without the need for large-scale renovation and adjustment. For example, in the ventilation system of some small industrial equipment, fans can be directly integrated into the interior of the equipment without affecting the overall layout and appearance of the equipment. In addition, its lightweight design makes installation and maintenance more convenient, reducing labor costs and operational difficulties.
Stable and reliable
ebm-papst's strict quality control and exquisite manufacturing process ensure the stable and reliable operation of the W2E200-HK38-C01 axial fan. Each component of the fan has undergone strict testing and screening, and has good wear resistance, corrosion resistance, and fatigue resistance. During long-term continuous operation, the fan can maintain stable air volume and pressure output, reduce the probability of faults, lower maintenance costs and downtime losses for users.
Flexible installation
This fan offers multiple installation methods, and users can choose the appropriate installation method according to their actual needs. It can be fixed to the outer shell of the equipment with bolts, or it can be installed in an embedded manner to integrate with the overall structure of the equipment. In addition, the interface design of the fan is also universal, making it easy to connect with various ventilation ducts and systems. This flexible installation method enables the fan to adapt to different application scenarios and installation requirements.
Electronic device heat dissipation
In the field of electronic devices, the W2E200-HK38-C01 axial fan is widely used for heat dissipation in various small electronic devices. For example, computer servers, network switches, industrial control equipment, etc. These devices generate a large amount of heat during operation. If they cannot dissipate heat in a timely manner, it will affect the performance and stability of the devices, and even lead to device damage. This fan, with its efficient ventilation capacity and compact design, can effectively dissipate the heat inside the equipment, ensuring its normal operation.
Ventilation for small industrial equipment
In some small industrial equipment, such as small machine tools and local control boxes in automated production lines, a good ventilation environment is also required to ensure the normal operation of the equipment. The W2E200-HK38-C01 axial flow fan can provide ventilation and air exchange services for these devices, exhaust the heat, moisture, and harmful gases generated during the operation of the equipment, extend the service life of the equipment, and improve production efficiency.
Local ventilation in commercial premises
In commercial places such as small shops, local areas of offices, etc., this fan can be used to improve air quality and regulate temperature. For example, in some shops with smaller spaces, due to dense personnel and the use of electrical equipment, indoor air pollution and temperature rise may occur. Installing this fan can achieve rapid air circulation, introduce fresh air, and exhaust polluted air, providing a comfortable environment for customers and employees.
Laboratory ventilation
In laboratory environments, it is often necessary to ventilate small experimental equipment to eliminate harmful gases and odors generated during the experimental process. W2E200-HK38-C01 axial flow fan can be used as part of the laboratory's local ventilation system to provide a safe and healthy working environment for laboratory personnel. Its low-noise operation characteristics will not interfere with experimental operations and data acquisition.
The ebm-papst W2E200-HK38-C01 axial fan has become a highly competitive product in the field of ventilation due to its excellent parameter indicators, unique product features, and wide range of application scenarios. It can play an important role in heat dissipation of electronic devices, ventilation of small industrial equipment, local ventilation of commercial places, and laboratory ventilation, providing users with efficient, energy-saving, stable, and reliable ventilation solutions.
