| Brand： | ebmpapst |
| Part No： | W2E208-BA20-01 |
| Fan Type： | Axial Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 260φ*80 |
| Max.Air Flow(m³/h)： | 810 |
| Max.Pressure(Pa)： | 130 |
| Input Power(W)： | 67 |
| Speed(rpm)： | 2750 |
| Noise(db)： | N/A |
With the continuous development of fan technology, axial flow fans play an important role in many fields due to their unique gas flow mode and application advantages. The W2E208-BA20-01 axial fan from Yibiput has become a highly anticipated product in the market due to its precise parameter settings, outstanding features, and advanced technology. Next, let's delve into the various parameters, characteristics, and technical principles behind this fan.
Rated voltage: The rated voltage of W2E208-BA20-01 fan is 230V, which is a common standard voltage and can be widely used in various conventional power environments. In industrial plants, commercial buildings, and residential areas, 230V power supply systems are quite common. This fan can be easily adapted without the need for additional voltage conversion equipment, reducing usage costs and equipment complexity. In ordinary factory workshops, fans can be directly connected to a 230V power supply to provide stable power support for ventilation and heat dissipation in the workshop.

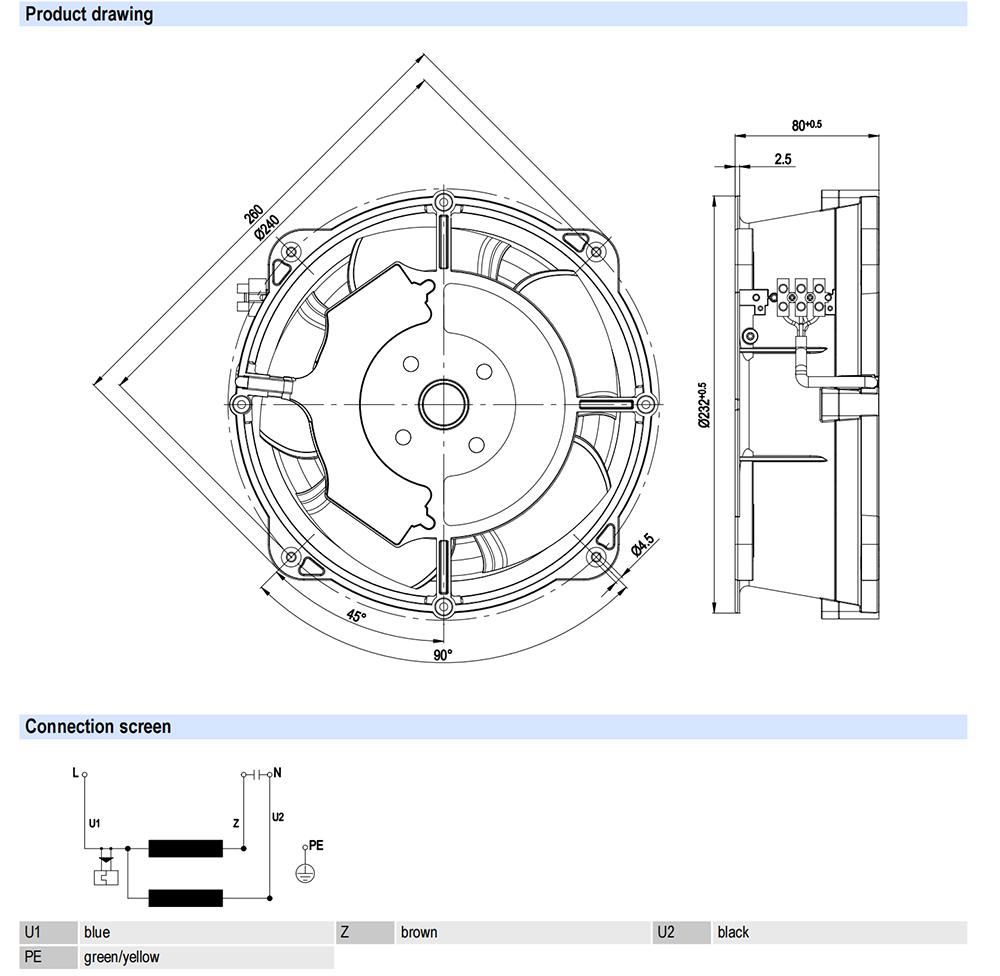

Size specifications: The fan size is 260 φ * 80 millimeters, and this larger design gives the fan a greater advantage in gas delivery. A larger diameter and a certain thickness can increase the flow rate and pressure of gas, making it suitable for scenarios with high ventilation requirements. In the ventilation system of large warehouses, the larger W2E208-BA20-01 fan can quickly exhaust the polluted air inside the warehouse, introduce fresh air, and improve the air quality inside the warehouse.

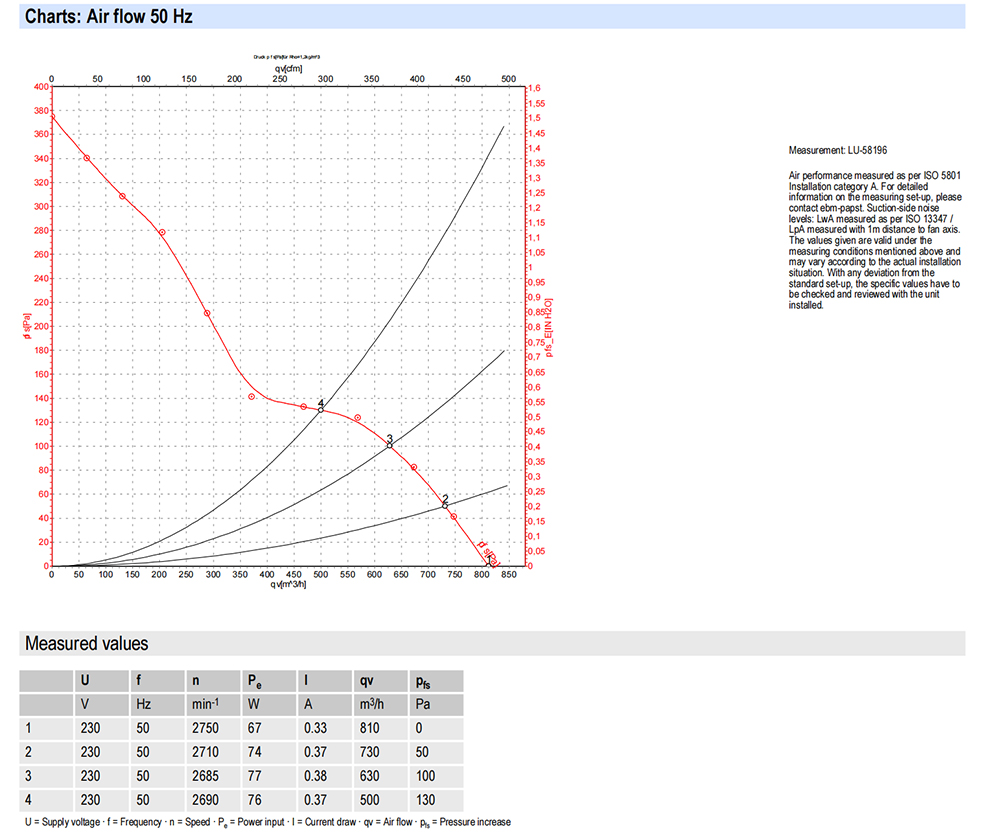

Air volume and pressure: The maximum air volume can reach 810 cubic meters per hour, and the maximum pressure is 130Pa. This combination of air volume and pressure gives the fan strong capabilities in ventilation and gas delivery. In places that require rapid ventilation and air exchange, such as workshops, conference rooms, etc., it can quickly exhaust polluted indoor air and introduce fresh air to improve air quality. In some ventilation systems that require overcoming certain pipeline resistance, a maximum pressure of 130Pa can ensure smooth gas delivery to all corners and meet ventilation requirements. In the ventilation system of some small commercial stores, fans can transport air to various areas of the store through ventilation ducts, ensuring fresh air inside the store.
Speed and power: The speed is 2750rpm and the input power is 67W. High speed ensures that the fan can generate sufficient wind power, while reasonable power settings achieve good energy efficiency while ensuring performance. In some places where high ventilation efficiency is required, such as laboratory fume hoods, high-speed W2E208-BA20-01 fans can quickly exhaust harmful gases generated during the experimental process, ensuring the safety of experimental personnel. The input power of 67W is relatively low, which can effectively reduce energy consumption and save operating costs for devices that operate for a long time.
Efficient axial gas flow method: As an axial fan, the gas flow method of W2E208-BA20-01 is different from traditional fans. The special design of its impeller allows gas to flow along the axis direction of the fan, which can generate a large air volume and perform well in terms of airflow uniformity. In some places that require large and uniform ventilation, such as large sports halls, exhibition halls, etc., the characteristic of axial flow fans can provide good ventilation for the entire space, keeping indoor air fresh.
Stable and reliable operating performance: Yibiput's exquisite technology in fan manufacturing ensures the stability and reliability of the W2E208-BA20-01 fan. The structural design of the fan has been optimized, using high-strength materials and precise manufacturing processes, which can withstand the enormous stress generated during high-speed operation. The impeller has undergone strict dynamic balance testing and can maintain stability during high-speed rotation, reducing the generation of vibration and noise and extending the service life of the equipment. In some industries that require extremely high stability in equipment operation, such as medical equipment manufacturing, aerospace, etc., the W2E208-BA20-01 fan can operate stably for a long time, providing reliable guarantee for the normal operation of the equipment.
Good adaptability: This fan has good adaptability to different working environments and conditions. Its rated voltage of 230V and moderate power enable it to operate normally under different power conditions. Although larger sizes may not be suitable in some spaces with limited space, their size is not a limiting factor in most industrial and commercial scenarios. In some special working environments, such as high temperature, high humidity, and high dust, the W2E208-BA20-01 fan can still operate stably and meet ventilation requirements by adopting special protective measures and materials. In some mining ventilation systems, fans need to work in dusty environments. The W2E208-BA20-01 fan, with its dust-proof design and wear-resistant materials, can effectively resist the erosion of dust and ensure the normal operation of the ventilation system.
Working principle of axial flow fan: The working principle of W2E208-BA20-01 fan is based on the axial flow effect. When the motor drives the impeller to rotate, gas is sucked into the center of the impeller. Under the push of the impeller blades, the gas flows along the axis direction of the fan, increasing in speed, and finally discharged from the outlet of the fan. The blade shape and angle design of the impeller are key factors affecting the performance of the fan. Reasonable blade design can enable gas to gain greater kinetic energy during the flow process, thereby increasing the air volume and pressure of the fan.
Motor and transmission technology: The fan adopts an efficient motor that can efficiently convert electrical energy into mechanical energy, driving the impeller to rotate at high speed. The design of the motor has been optimized to have high efficiency and stability, and can maintain good performance during long-term operation. The transmission system adopts precision bearings and reliable couplings to ensure that the power of the motor can be stably transmitted to the impeller, reducing energy loss and mechanical failures. In terms of motor control, advanced speed regulation technology may be used to accurately adjust the fan speed according to actual needs, achieving energy conservation, consumption reduction, and precise control.
In summary, the W2E208-BA20-01 axial fan occupies an important position in the fan market due to its unique parameter advantages, excellent characteristics, and advanced technical principles. Whether it is ventilation and gas delivery in the industrial field, or air conditioning in commercial and residential buildings, it can exert its powerful performance and provide users with efficient and reliable ventilation solutions. With the continuous advancement of technology and the increasing demand for applications, we believe that the W2E208-BA20-01 fan will demonstrate greater potential in future development.
