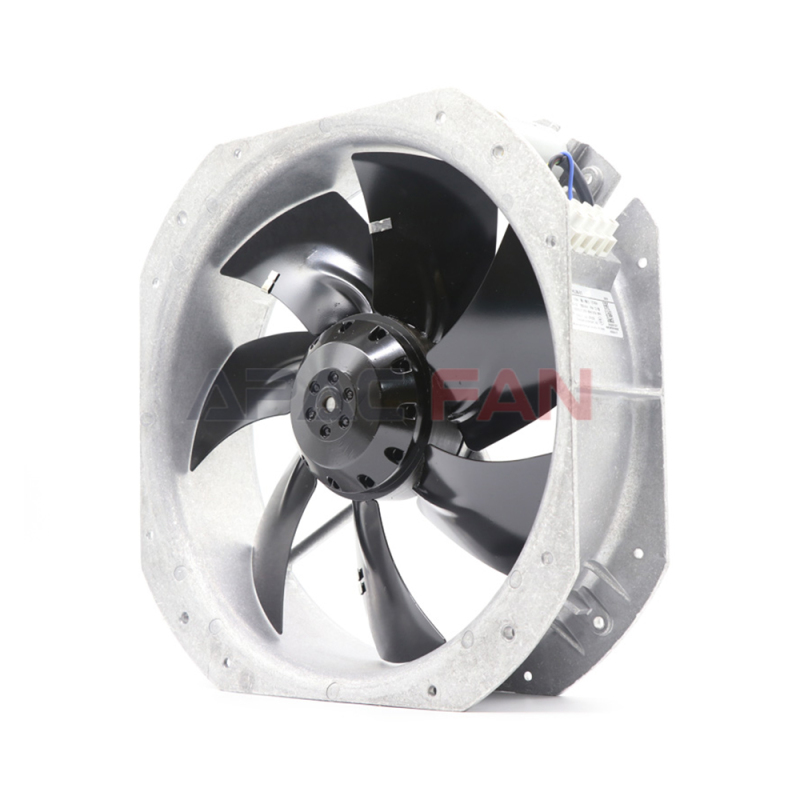

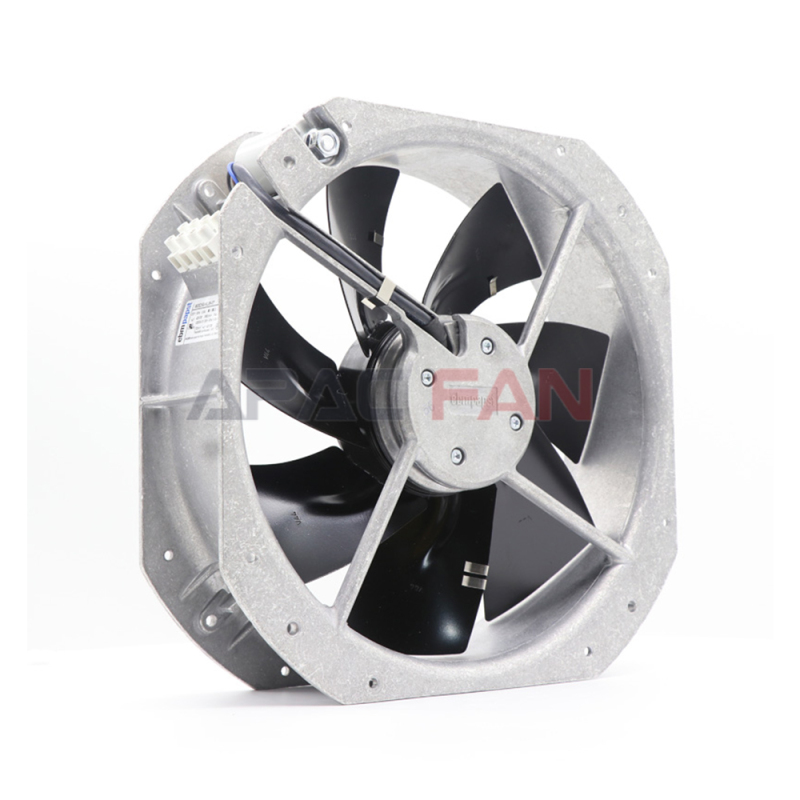

W2E250-HL06-01 ebm-papst

• Brand and Product Overview

In the global ventilation equipment market, ebm-papst is undoubtedly a shining star. As a long-standing and renowned enterprise, ebm-papst has always been known for its innovative technology and excellent quality. As an outstanding representative of the brand, the W2E250-HL06-01 axial fan stands out among numerous ventilation applications due to its outstanding performance and reliable stability.

• Product parameter analysis

Rated voltage

The rated voltage of this fan is 230V, which is widely used in industrial and commercial fields. The stable 230V power supply ensures that the fan can operate continuously and efficiently, and is easy to connect with common power systems without the need for additional complex conversion equipment, reducing installation and usage costs. Whether in factory workshops, commercial buildings, or other places, as long as there is a standard 230V power interface, this fan can be easily used.

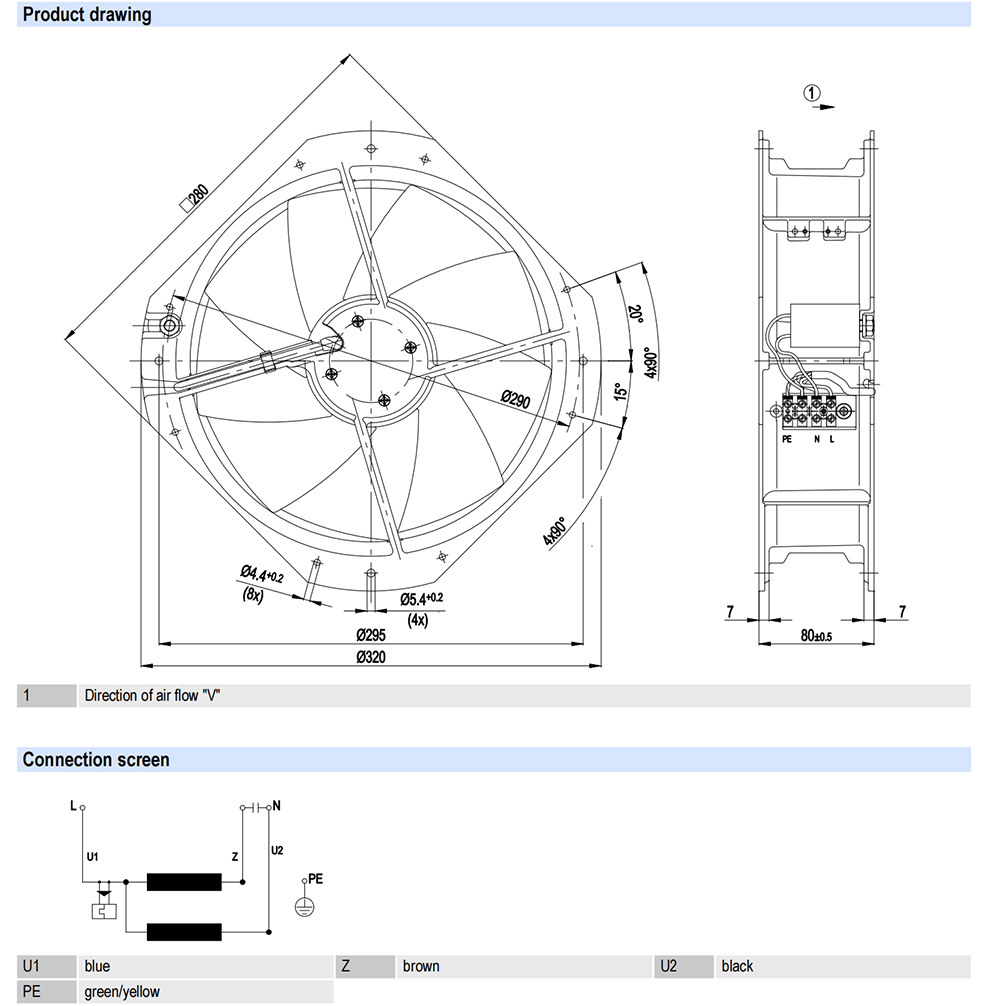

Size specifications

The size of the fan is 28028080 millimeters, and this compact and reasonable design gives it higher flexibility during installation. Compared to some large fans, it takes up less space and is suitable for various places with limited space. At the same time, this size design is also beneficial for optimizing the internal air duct structure and improving air flow efficiency.

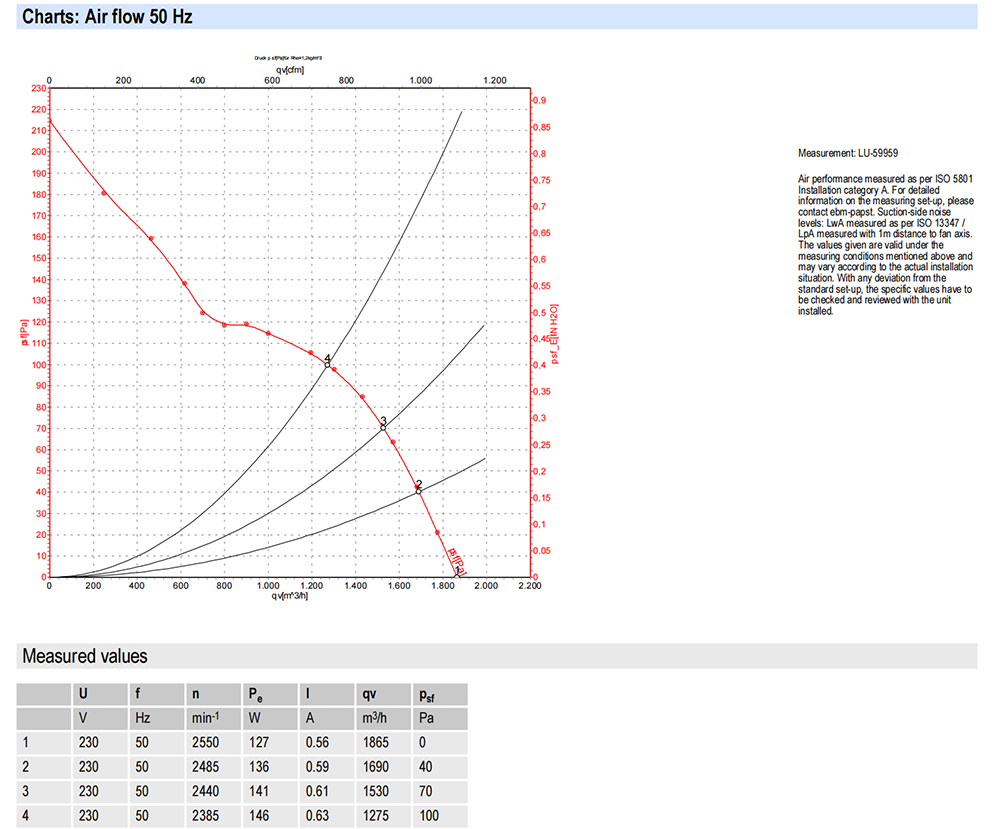

Maximum air volume

The maximum air volume can reach 1865m ³/h, indicating that the fan has strong air conveying capacity. In scenarios that require rapid ventilation, such as small workshops, warehouses, or computer rooms, it can quickly remove a large amount of polluted air and introduce fresh air, effectively improving indoor air quality and ambient temperature.

Maximum pressure

The maximum pressure is 100Pa, which means that the fan can overcome a certain resistance during operation, ensuring smooth air flow in the ventilation system. Even if there are certain bends in the ventilation duct or filtering devices are installed, the fan can still provide sufficient pressure to ensure the stability of the ventilation effect.

Input power

The input power is 127W, and combined with its air volume and pressure performance, the fan performs excellently in terms of energy utilization efficiency. Lower power consumption means that it can save users a lot of electricity expenses during long-term operation, which is in line with the current trend of energy conservation and emission reduction.

Speed

The stable speed of 2550rpm is a key factor in ensuring the stable ventilation performance of the fan. Uniform rotational speed ensures smoother air flow, avoiding issues such as unstable airflow and increased noise caused by speed fluctuations.

• Product feature analysis

Efficient Aerodynamic Design

The blades of the fan adopt advanced aerodynamic design concepts. The shape and angle of the blades have been carefully optimized to generate maximum lift during high-speed rotation, thereby achieving efficient air transport. This design not only increases air volume and pressure, but also reduces resistance during air flow and energy consumption. At the same time, the material of the blades has good strength and toughness, which can maintain a stable shape during high-speed rotation, ensuring the long-term stability of ventilation performance.

The use of high-quality materials

To ensure the reliability and durability of the fan, W2E250-HL06-01 uses high-quality materials. Blades are usually made of high-strength engineering plastics or aluminum alloy materials, which have the advantages of light weight, high strength, and corrosion resistance. A lighter blade weight can reduce the load on the motor, lower energy consumption, and improve the starting speed and operational stability of the fan. High strength blades can maintain good shape and structure during high-speed rotation, and are not easily deformed or damaged. The casing of the fan is made of sturdy metal materials such as galvanized steel or stainless steel, which have excellent protection and heat dissipation performance. The metal casing can effectively protect the components inside the fan from external collisions, dust, and moisture, extending the service life of the fan.

Advanced motor technology

The motor is the core component of the fan, and W2E250-HL06-01 is equipped with advanced motor technology. The motor has the characteristics of high efficiency and stability, and can operate stably at rated voltage, outputting stable power. At the same time, the motor adopts a low-noise design, reducing the noise generated during operation and creating a quiet usage environment for users. In addition, the motor also has good heat dissipation performance, which can timely dissipate the heat generated during operation, ensuring the normal working temperature of the motor and extending its service life.

Easy to install and maintain

The design of this fan fully considers the convenience of installation and maintenance. It offers multiple installation methods, such as wall mounted, suspended, floor standing, etc. Users can choose the appropriate installation method according to their actual needs. At the same time, the structural design of the fan is reasonable, and the connections between various components are tight but easy to disassemble, making it convenient for daily cleaning and maintenance work. During the maintenance process, users can easily replace vulnerable parts such as blades and motors, reducing maintenance costs and time.

• Introduction to Applicable Scenarios

Industrial sector

In industrial production, W2E250-HL06-01 axial fan can be used for ventilation and air exchange in various small workshops. For example, in an electronic manufacturing workshop, harmful gases and heat are generated during the production process. This fan can quickly exhaust these polluted air, improving the air quality and working environment in the workshop. In some small machining workshops, fans can be used for equipment cooling, ensuring that the equipment operates in a suitable temperature environment and extending its service life.

Business field

In commercial places such as small supermarkets, restaurants, cafes, etc., where personnel are relatively dense, the air can easily become polluted. W2E250-HL06-01 axial flow fan can be an important component of the ventilation system, improving indoor air quality through rapid air exchange and providing customers with a comfortable shopping and dining environment. In some small offices, fans can also be used to regulate indoor air circulation and improve employee productivity.

In the field of agriculture

In agricultural production, this fan can be used for ventilation in small greenhouses. By ventilating and adjusting the temperature and humidity inside the greenhouse, a favorable environment is created for the growth of crops. At the same time, fans can also release harmful gases from the greenhouse, reduce the occurrence of pests and diseases, and improve crop yield and quality. In some small farms, fans can improve the breeding environment, reduce the concentration of harmful gases such as ammonia and hydrogen sulfide, and improve the health and growth rate of animals.

• Summary

The W2E250-HL06-01 axial fan has become a reliable ventilation device with its reasonable parameter design, excellent technical features, and wide range of applicable scenarios. It can play an important role in industrial production, commercial operation, and agricultural development, providing users with efficient and stable ventilation solutions. In the future, users can fully utilize the performance advantages of the fan according to their actual needs, achieving better ventilation and economic benefits.
