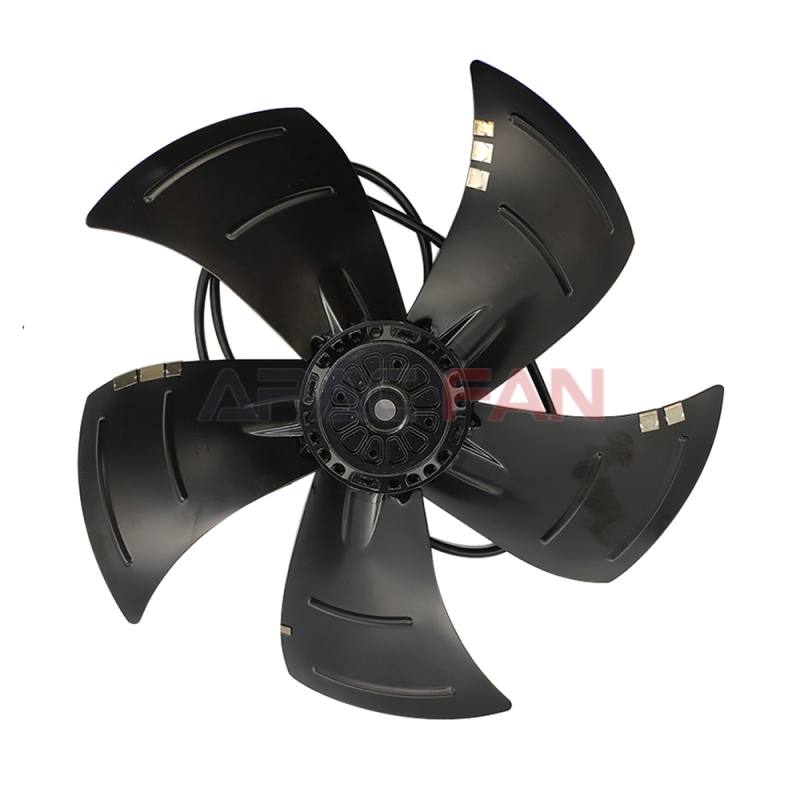

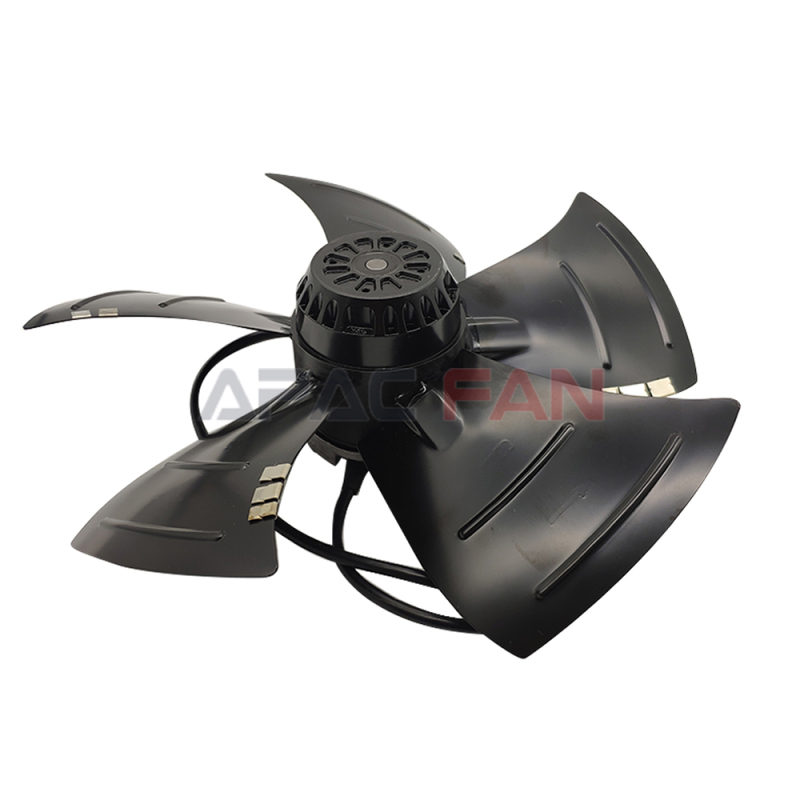

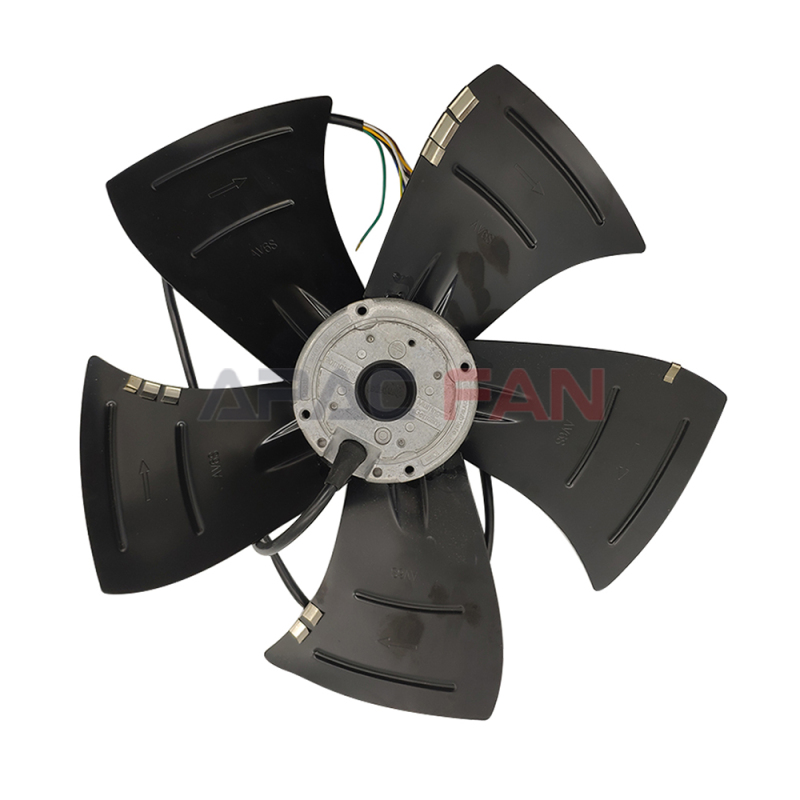

A4D400-AP12-15 ebm-papst

In today's ventilation equipment market, the A4D400-AP12-15 axial flow fan of the ebm-papst brand stands out for its excellent performance and reliable quality. The following will give a comprehensive and detailed introduction to the fan.

Brand Background

ebm-papst is a company with a long history and excellent reputation in the field of fan manufacturing. Over the years, the company has always been committed to technological innovation and product quality improvement, and has provided high-quality ventilation solutions to customers around the world with advanced R&D capabilities and strict production processes. The A4D400-AP12-15 axial flow fan is one of its many excellent products.

Basic parameters

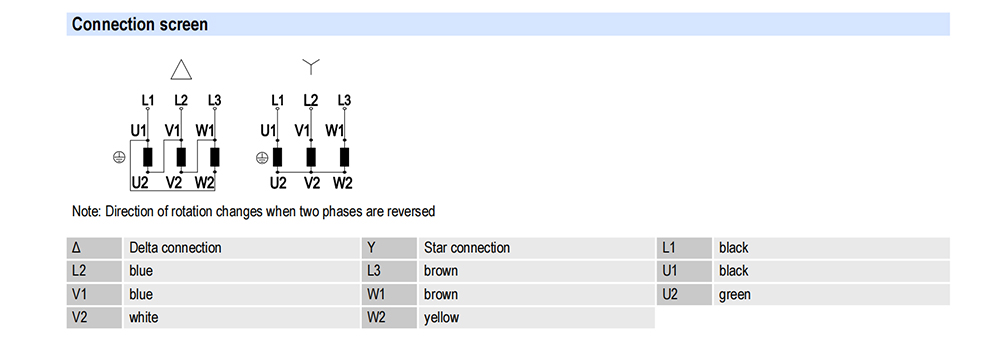

Rated voltage: The rated voltage is 230V. This common voltage specification enables the fan to be easily connected to various conventional power supply systems. Whether in industrial sites or commercial and civil environments, it can be easily adapted, providing great convenience for users.

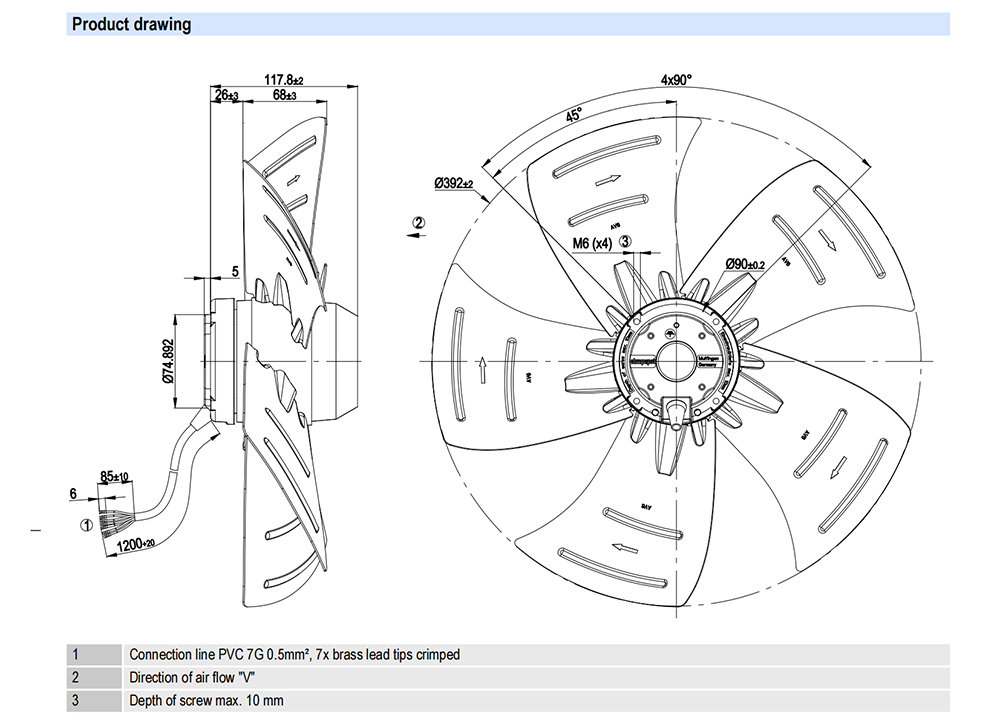

Dimensions: The size of the fan is 400 mm. This moderate size makes it highly flexible in installation and use. It can be installed inside equipment with limited space to provide effective heat dissipation and ventilation; it can also be used in some small ventilation systems to meet the air circulation needs of local areas.

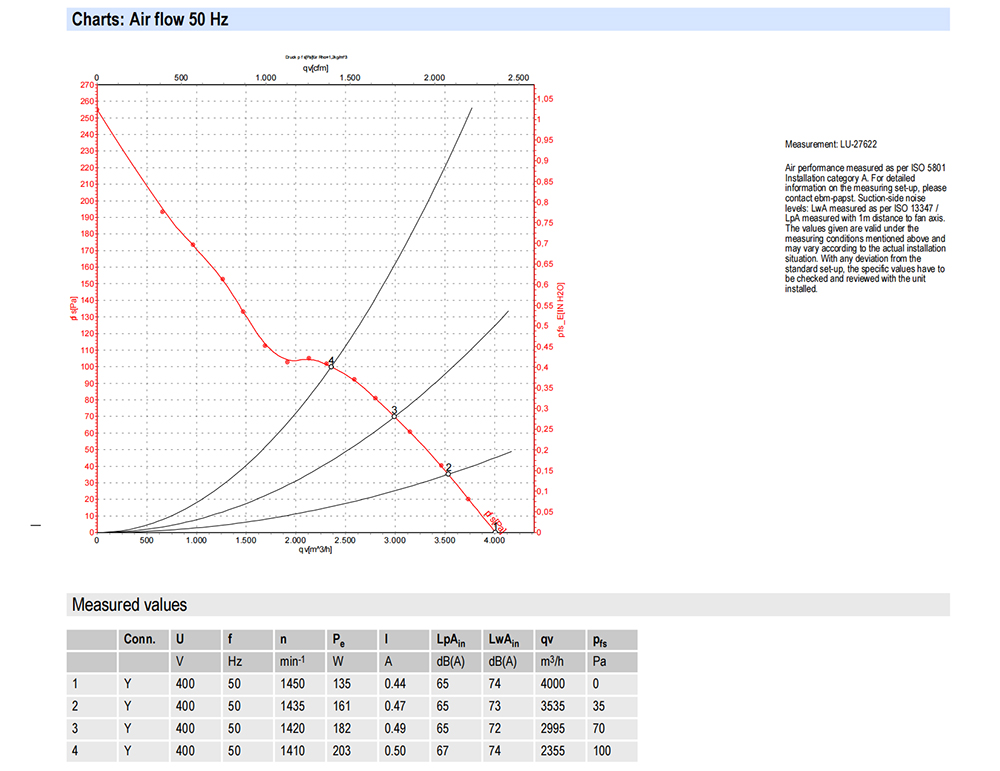

Maximum air volume: The maximum air volume can reach 4000m³/h. This parameter indicates that the fan has a strong air delivery capacity. In scenarios where rapid ventilation or ventilation is required, such as small workshops, warehouses, offices, etc., it can quickly discharge the dirty air in the room and introduce fresh air to effectively improve the indoor air quality.

Maximum pressure: It has a maximum pressure of 100Pa, which means that the fan can work normally under certain resistance conditions. When the ventilation duct has a certain length or a small number of obstacles, it can still overcome the resistance, ensure the stable flow of air, and maintain the normal operation of the ventilation system.

Input power: The input power is 135W. The relatively low power consumption enables the fan to save energy costs during operation. At the same time, combined with its large air volume output, it reflects a high energy utilization efficiency, which meets the needs of modern society for energy-saving and environmentally friendly products.

Speed: The speed is 1450rpm. Stable speed is one of the key factors to ensure stable fan performance. At this speed, the fan can deliver air continuously and efficiently, and through reasonable design and optimization, the vibration and noise caused by excessive speed are reduced.

Noise level: The noise is 65dB. Although some sound will be generated during operation, it is at a relatively reasonable level among similar products. In general use environments, this noise will not cause obvious interference to people's normal work and life.

Design features

Aerodynamic optimization: The fan blades adopt advanced aerodynamic design, and their shapes and angles are carefully calculated and optimized to maximize the efficiency of air intake and exhaust. This design not only reduces energy loss and improves the overall performance of the fan, but also reduces the noise generated during operation.

Selection of high-quality materials: Both the impeller and the casing are made of high-strength and corrosion-resistant materials. The impeller will be subjected to greater centrifugal force and friction during high-speed rotation. The use of high-quality materials ensures the wear resistance and fatigue resistance of the impeller and prolongs its service life. The casing can effectively protect the internal components from erosion and damage by the external environment, and also has good sound insulation and heat dissipation performance.

Excellent motor performance: Equipped with a high-performance motor, the motor is efficient, stable and reliable. It can operate stably at rated voltage and provide continuous power support for the fan. The motor adopts advanced heat dissipation technology, which can dissipate the heat generated during operation in time, ensure the normal operating temperature of the motor, and further improve the reliability and service life of the motor.

Application scenario

Industrial field: In some small industrial production workshops, machinery and equipment will generate heat and exhaust gas during operation. A4D400-AP12-15 axial flow fan can be installed on the wall or ceiling of the workshop. Through forced ventilation, heat and exhaust gas can be discharged to the outside, lower the indoor temperature, protect the normal operation of machinery and equipment, and improve the working environment of workers. In the electronic manufacturing workshop, it can also be used to discharge harmful gases and dust generated by electronic equipment to ensure the cleanliness of the production environment.

Commercial field: In small shopping malls, supermarkets, restaurants and other places, there are dense crowds and the air is easy to be polluted. The fan can be installed in the ventilation duct or in a suitable position indoors as part of the ventilation system to accelerate the circulation and circulation of air, keep the indoor air fresh, and provide customers with a comfortable shopping and dining environment. In some hotel guest rooms and public areas, the fan can also be used to improve ventilation conditions and improve guest satisfaction.

Civilian field: In the home, the fan can be used in places where odor and moisture are easily generated, such as kitchens and bathrooms. Installed at windows or vents, it can promptly discharge odor and moisture, keeping the indoor air dry and fresh. In some small studios or study rooms, it can also provide users with a good ventilation environment and improve work and study efficiency.
