FAQ

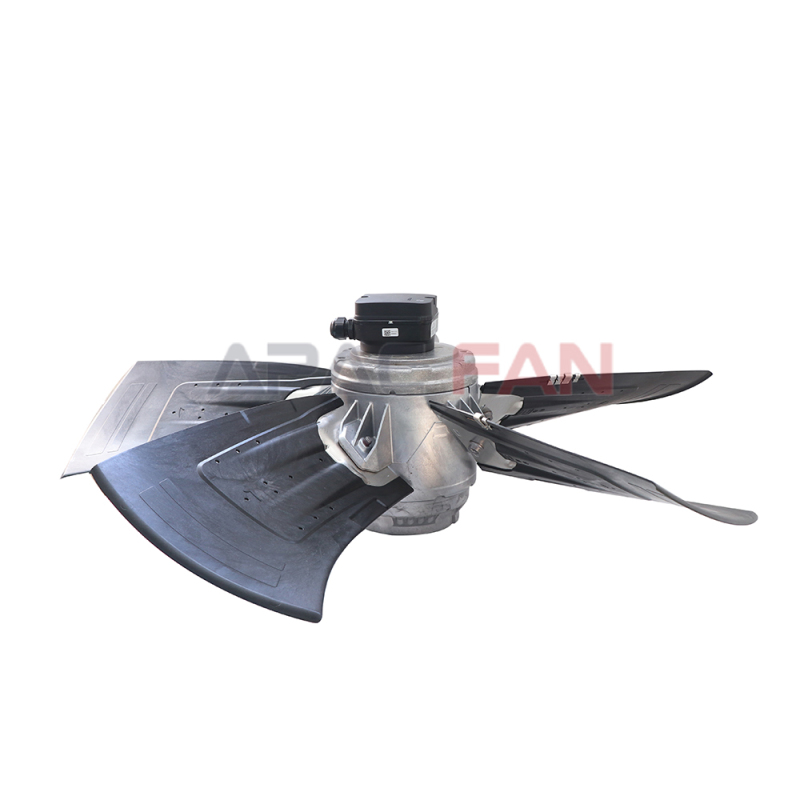

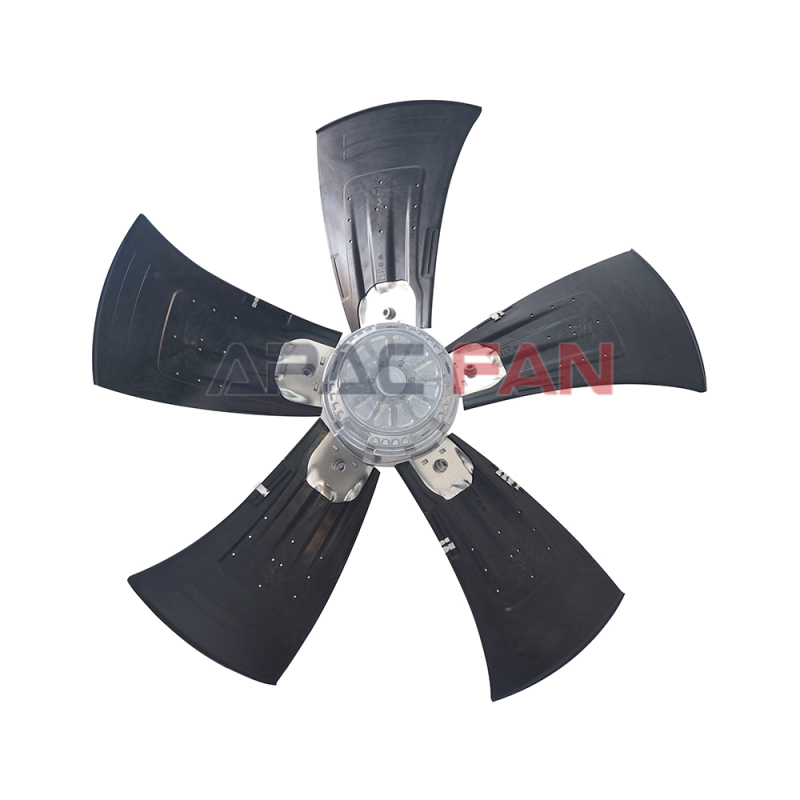

Q1: What are the key operational specifications of the A6D910-AA01-01, and how do they support industrial ventilation needs?

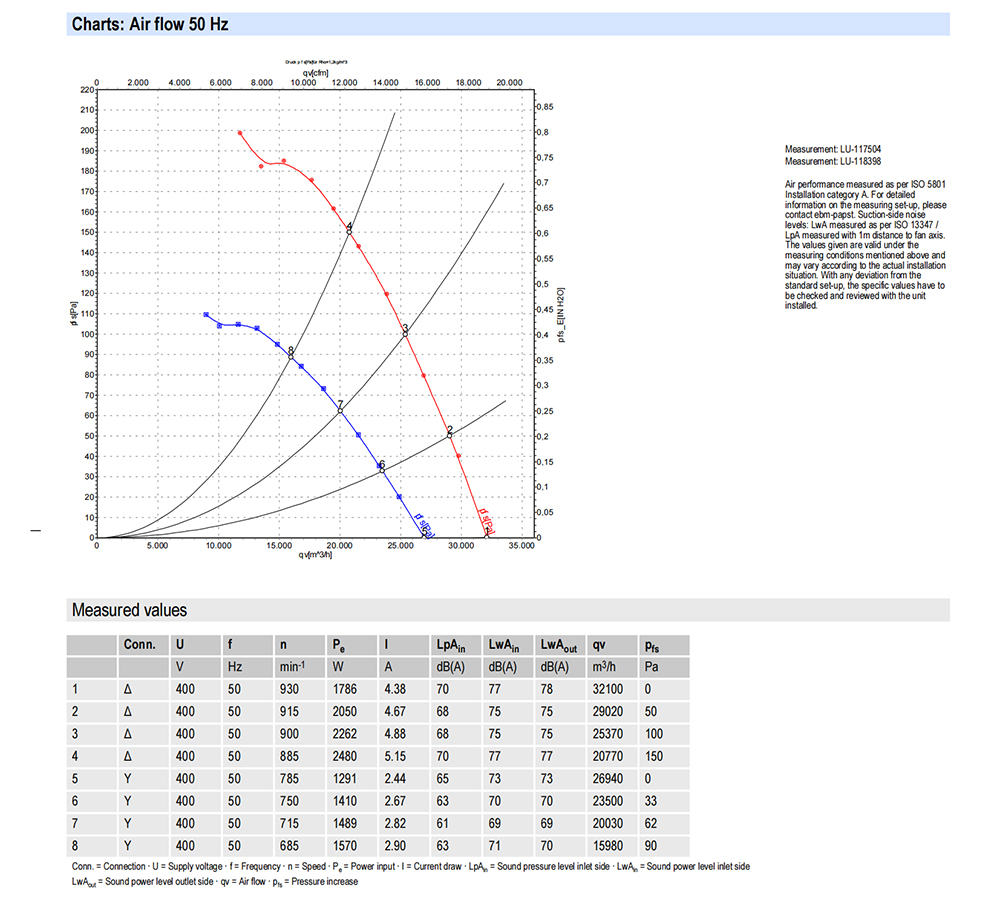

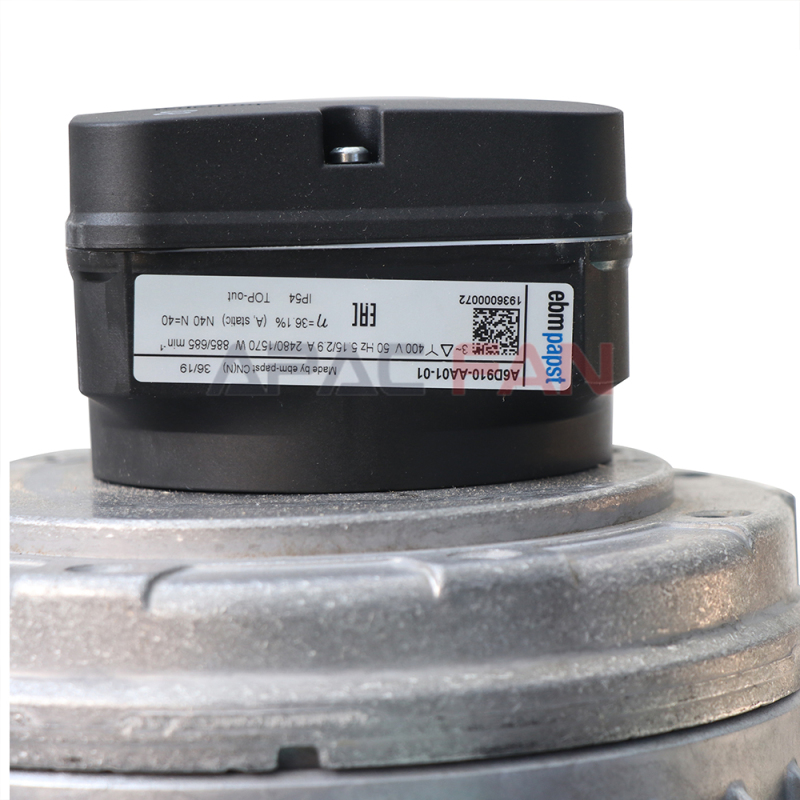

A1: The A6D910-AA01-01 operates at 400V with an 885 rpm speed, delivering 21,770 m³/h airflow and 142 Pa max pressure. Its 2480W input power and S1 continuous duty mode enable 24/7 operation in large-scale systems like industrial exhaust networks or commercial HVAC ducts. The IP54 protection (dust-tight and splash-proof) and -40°C to +80°C ambient tolerance ensure reliability in harsh environments.
Q2: How should the condensate discharge holes on the A6D910-AA01-01 be maintained to prevent system damage?
A2: The A6D910-AA01-01 features condensate discharge holes on both rotor and stator sides to drain moisture. During installation, ensure these holes face downward or remain unobstructed to avoid water accumulation, which could corrode the aluminium rotor/blades or compromise the PP plastic terminal box. Regular checks in high-humidity environments (e.g., food processing) are essential to keep the holes clear.

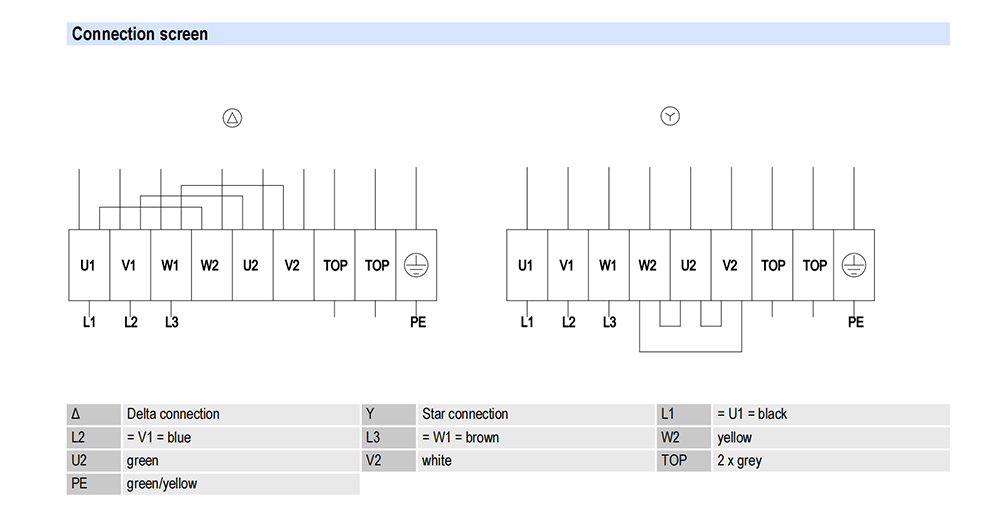

Q3: What safety features does the A6D910-AA01-01 incorporate to comply with industrial electrical standards?
A3: The A6D910-AA01-01 meets VDE, CE, EN 60034, and EN 61800-5-1 standards, with a Class I protection (requires customer-connected protective earth) and touch current ≤3.5 mA per IEC 60990. Its thermal overload protector (TOP) prevents motor overheating, while the IP54 rating safeguards against dust and water ingress, making it suitable for factories with strict safety codes.

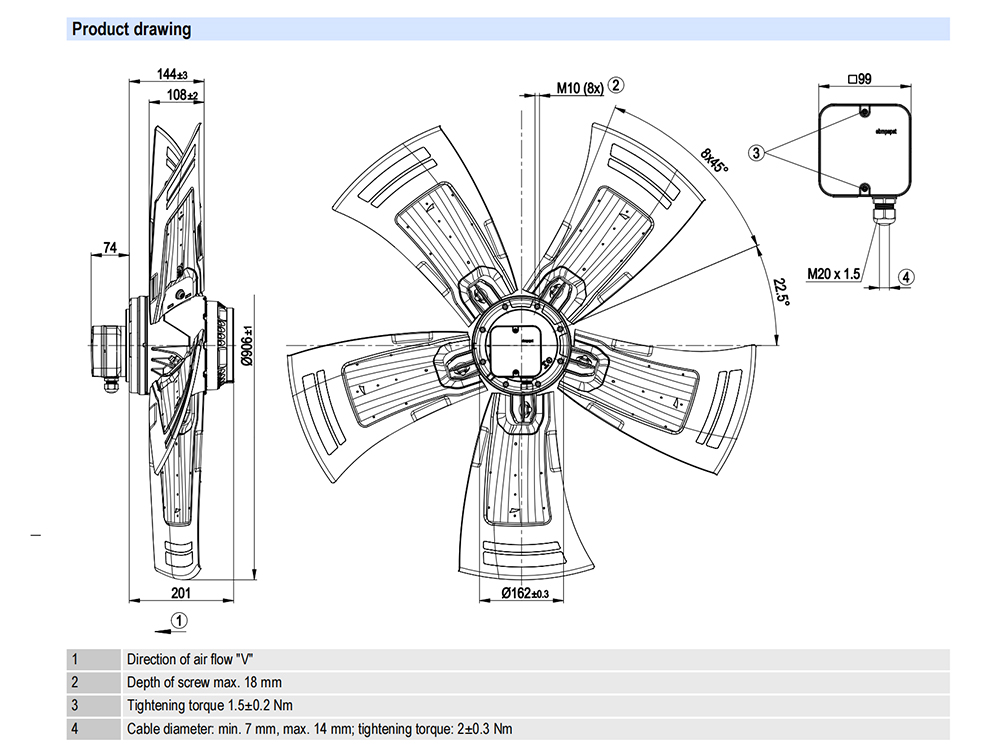

Q4: How does the mounting flexibility of the A6D910-AA01-01 impact its installation, and what considerations apply to airflow direction?
A4: The A6D910-AA01-01 can be mounted in any position, but the "V"-direction airflow must align with the system’s design (e.g., horizontal for cross-ventilation or vertical for exhaust). The clockwise rotation (from the rotor side) optimizes air dispersion in the "V" pattern, so ensure the airflow path is unobstructed to maintain the 142 Pa pressure rating. Misalignment may reduce efficiency.
Q5: What material specifications make the A6D910-AA01-01 suitable for corrosive industrial environments?
A5: The A6D910-AA01-01 features a pre-galvanised steel wall ring coated in black plastic (RAL 9005), combining rust resistance with durability. The aluminium rotor/blades (sprayed with PP plastic) and steel guard grille (RAL9005 coating) further protect against corrosion. This construction is ideal for applications like automotive paint booths or coastal facilities, where exposure to moisture or mild chemicals is common.
