| Brand： | ebmpapst |
| Part No： | G1G160-BH29-52 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 24 |

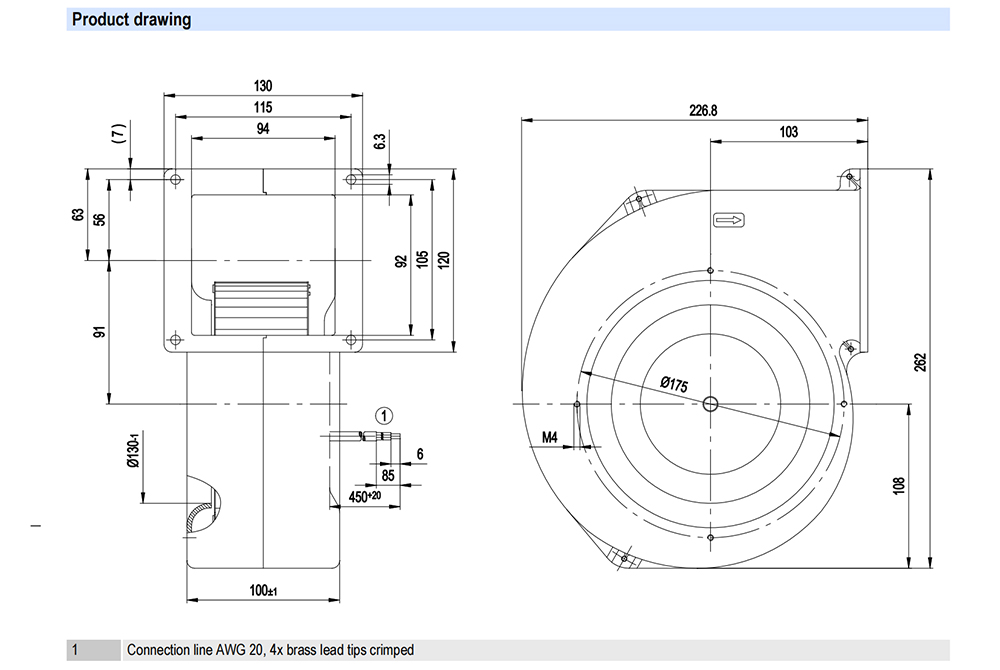

| Size(mm)： | 160 |

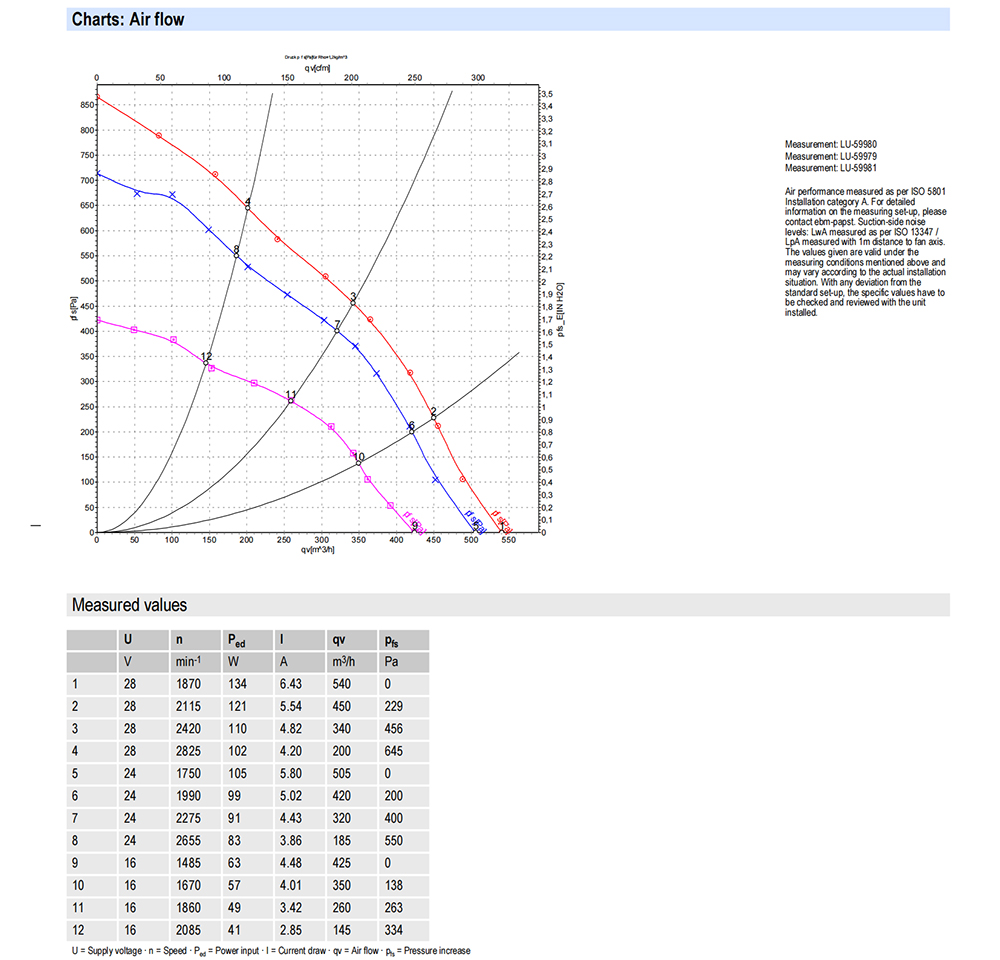

| Max.Air Flow(m³/h)： | 540 |
| Max.Pressure(Pa)： | 645 |
| Input Power(W)： | 134 |
| Speed(rpm)： | 1870 |
| Noise(db)： | N/A |
Core parameter interpretation
G1G160-BH29-52 belongs to the centrifugal fan type. Its working principle is to rely on the input mechanical energy to increase the gas pressure and discharge the gas. The rated voltage is 24V. This lower voltage specification makes the fan safer during use and is suitable for some places with strict voltage requirements, such as internal ventilation of electronic equipment, small laboratories, etc. At the same time, the lower voltage also helps to reduce energy consumption and reduce operating costs.
The size of the fan is 160 mm, and its relatively small appearance design makes it very flexible and adaptable. It can be easily installed in places with limited space without taking up too much space. Whether in a compact cabinet or in a narrow ventilation duct, you can find a suitable installation location.
The maximum air volume can reach 540m³/h. Although this air volume value is not particularly large compared to some large fans, it is already an excellent performance for its small size. In the ventilation and air exchange of some small spaces, it can quickly and effectively replace the air to ensure the freshness of the air. For example, in a small communication base station, electronic equipment will generate a lot of heat. The G1G160-BH29-52 centrifugal fan can discharge the heat in time and create a good operating environment for the equipment.
The maximum pressure is 645Pa. The higher pressure enables the fan to overcome certain resistance in the ventilation system and ensure that the air can pass through the air duct and various obstacles smoothly. In the case of some long ventilation ducts or certain resistance in the ducts, the fan can still maintain a stable air volume output to ensure the ventilation effect.
The input power is 134W. Combined with its air volume and pressure output, its ventilation efficiency per unit power is relatively high. Lower input power means less power consumption during operation, which can save energy costs for users. At the same time, it also reduces the heat generated by power consumption, further improving the stability and reliability of the equipment.
The speed is 1870rpm. The relatively high speed enables the fan to generate a large air volume and pressure in a short time. But at the same time, EBM-PAPST has adopted advanced technology and materials in the design and manufacturing process, effectively reducing the noise and vibration problems caused by high speed and ensuring the smooth operation of the fan.
Analysis of design features
From the design point of view, the G1G160-BH29-52 centrifugal fan has many unique features. Its impeller adopts a special design, which is precisely calculated and optimized to maximize the air intake and exhaust efficiency when the impeller rotates. The material of the impeller is a high-strength, lightweight alloy material, which not only ensures the strength and durability of the impeller, but also reduces the weight of the impeller, reduces the load of the motor, and improves the overall efficiency of the fan.
The shell of the fan is made of high-quality plastic material with good insulation and corrosion resistance. The design of the plastic shell not only reduces the weight of the fan, facilitates installation and transportation, but also effectively resists the erosion of harsh environments such as moisture and dust, and extends the service life of the fan. The surface of the shell has been smoothed to reduce the friction resistance of the air on the surface of the shell and improve the ventilation efficiency.
The motor is the core component of the fan. The G1G160-BH29-52 centrifugal fan is equipped with a high-performance DC motor. The motor is efficient, stable and reliable, and can maintain good performance under long-term continuous operation. The motor adopts advanced heat dissipation technology, which can dissipate the heat generated during operation in time, ensure that the temperature of the motor is within the normal range, and avoid damage to the motor due to overheating.
Performance Advantages
The performance advantages of the G1G160-BH29-52 centrifugal fan are reflected in many aspects. First of all, it achieves a high air volume and pressure output in a small volume, which makes it very competitive in some places that require space and ventilation effects. For example, in some small medical equipment, it is necessary to ensure good ventilation inside the equipment without taking up too much space. This fan can meet these needs well.
Energy-saving characteristics are also a highlight of this fan. The lower input power and higher ventilation efficiency enable it to consume less electricity during operation, saving energy costs for users. In the current environment of advocating energy conservation and emission reduction, this energy-saving fan has broad market prospects.
Stability and reliability are one of the important advantages of this fan. After strict quality inspection and performance testing, the fan can operate stably under various harsh environmental conditions. Whether it is a high temperature, low temperature, humid or dusty environment, it can work normally and provide users with reliable ventilation guarantee.
Application field expansion
Based on its excellent performance and characteristics, the G1G160-BH29-52 centrifugal fan has a wide range of application prospects in many fields. In the field of electronic equipment, it can be used for heat dissipation and ventilation of computers, servers, communication equipment, etc. to ensure the normal operation of the equipment. In the field of medical equipment, it can be used for small medical instruments, operating room ventilation, etc. to provide good air quality for the medical environment. In the field of industrial automation, it can be used for ventilation and air exchange of small automation equipment, control cabinets, etc. to protect the electronic components inside the equipment from damage. In the commercial field, it can be used for ventilation of small display cabinets, refrigerators, etc. to keep the temperature and humidity in the cabinet stable.
The G1G160-BH29-52 centrifugal fan has become an excellent product in the field of ventilation with its excellent parameters, unique design features and wide application potential. Whether in terms of performance, energy saving or stability, it can meet the needs of users and provide efficient and reliable ventilation solutions for various places.
