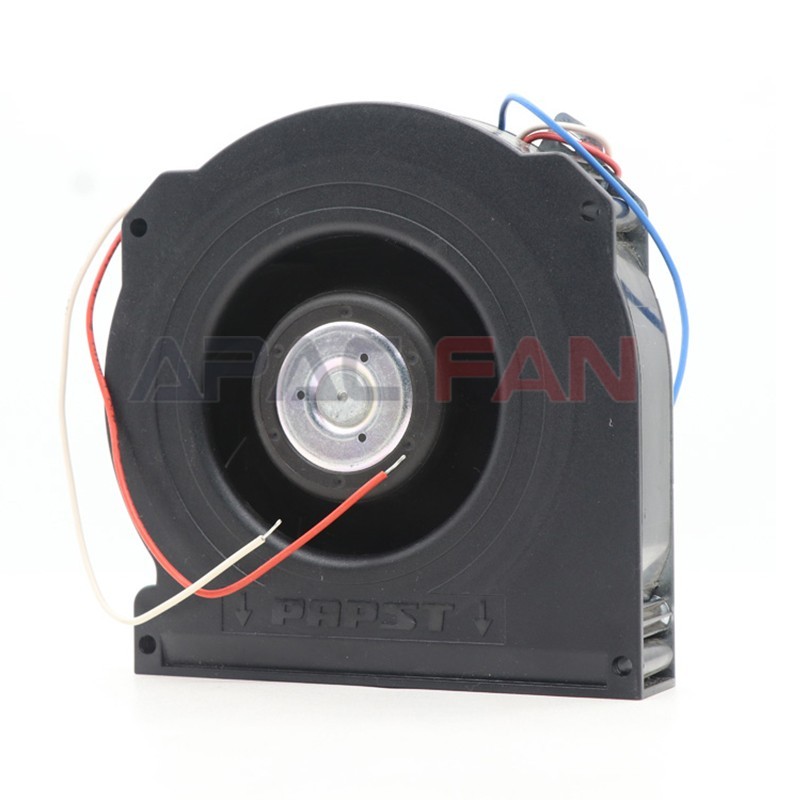

RLF 100-11/14R-061 ebm-papst

Name: RLF 100-11/14R-061 ebm-papst
Brand: APAC FAN
SKU: RLF 100-11/14R-061
Availability: OutOfStock

No.RLF 100-11/14R-061

4.8 (11)

51 Sold

$0.00

RLF 100-11/14R-061,ebm-papst,Centrifugal Fan,64m³/h,7.7W,5100RPM,415Pa,24V

Received successfully

Coupon Code

1/1

Brand：	ebmpapst
Part No：	RLF 100-11/14R-061
Fan Type：	Centrifugal Fan
Rated Voltage(V)：	24
Max.Air Flow(m³/h)：	64
Max.Pressure(Pa)：	415
Input Power(W)：	7.7
Speed(RPM)：	5100
Rotational Direction Looking At Rotor:	Clockwise
Airflow Direction:	Air in axially, Air out radially
Bearing System:	Ball bearing
Mounting Position:	Any
Weight:	0,300 kg
Housing Material:	Mixed
Impeller Material:	Plastic
Max. Torque When Mounted Across Both Mounting Flanges:	Wire outlet corner: 190 Ncm; Remaining corners: 190 Ncm
Screw Size:	ISO 4762 - M4 degreased, without an additional brace and without washer
