W2S130-AB03-21 ebm-papst

In the vast market of ventilation equipment, ebmpapst's W21301-AB03-21 axial fan has become an ideal choice for many industries due to its excellent performance, reliable quality, and wide applicability. This compact axial fan for communication plays a key role in many fields, providing stable and efficient ventilation solutions for various application scenarios.

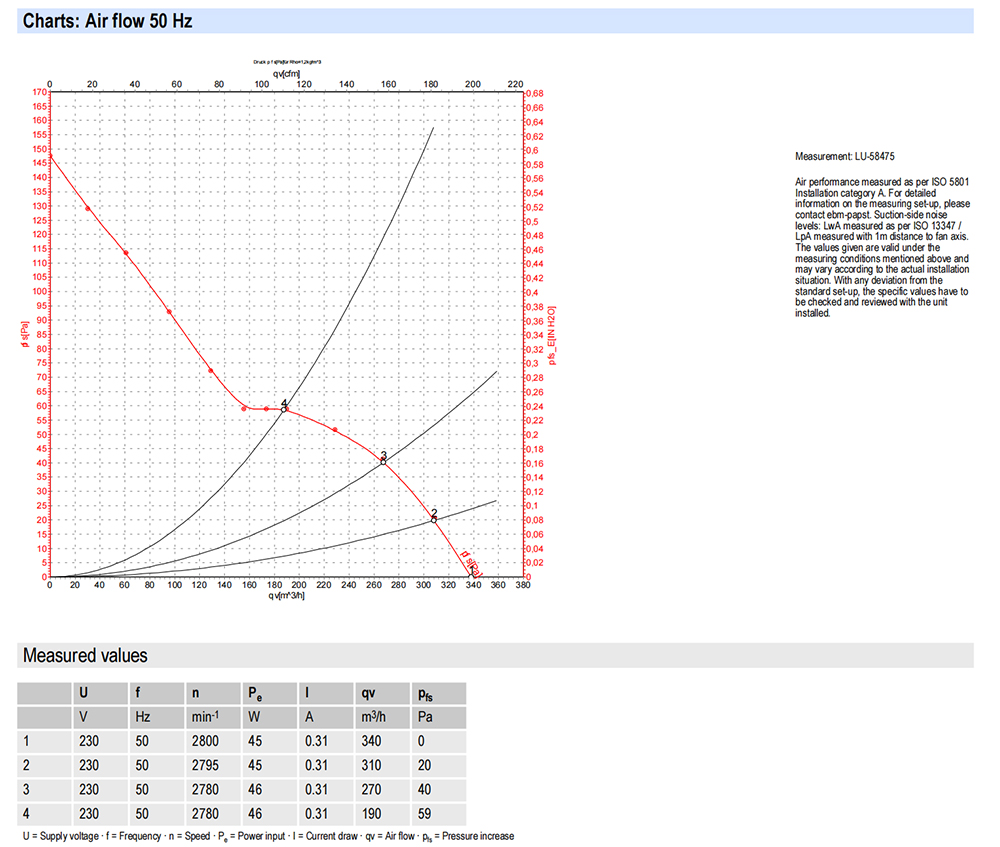

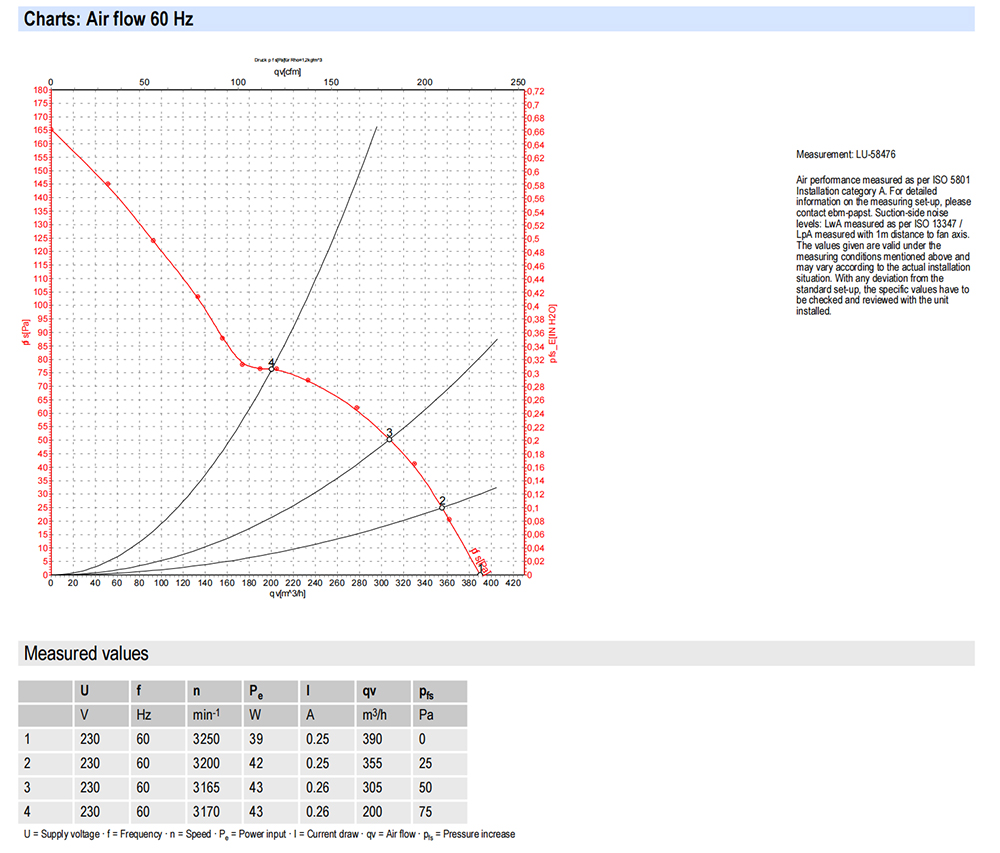

From the basic parameters, the W21301-AB03-21 axial fan exhibits good performance indicators. Its rated voltage is 230V, which is suitable for common power supply environments, making it suitable for use in different places without the need for complex voltage conversion equipment. Whether it is the power supply system in industrial plants or the conventional mains power lines in commercial buildings, this fan can be easily connected and operate stably. Its frequency supports 50Hz and 60Hz, and this dual frequency adaptability greatly expands the application range of fans. At a frequency of 50Hz, the speed can reach 2800min-1, the power input is 45W, and the current consumption is 0.31A; At a frequency of 60Hz, the speed can reach 3250min-1, the power input is 39W, and the current consumption is 0.25A. The parameter changes at different frequencies provide users with more choices under different power conditions and usage needs. For example, in areas with different power supply frequencies or devices with specific requirements for fan speed and power, users can flexibly adjust the operating frequency of the fan according to the actual situation to achieve the best operating effect.

The maximum back pressure of the fan is 80Pa at 50Hz and 120Pa at 60Hz, which enables it to overcome certain resistance in the ventilation system and ensure smooth air circulation. In practical ventilation applications, ventilation ducts inevitably have components such as bends and filters that obstruct air flow. However, the W21301-AB03-21 axial fan, with its excellent maximum back pressure capacity, can maintain stable ventilation even in the face of these obstacles. In places that require ventilation through longer ducts, such as branch ducts in large shopping malls, this fan can effectively overcome duct resistance and deliver fresh air to designated areas, ensuring indoor air quality.

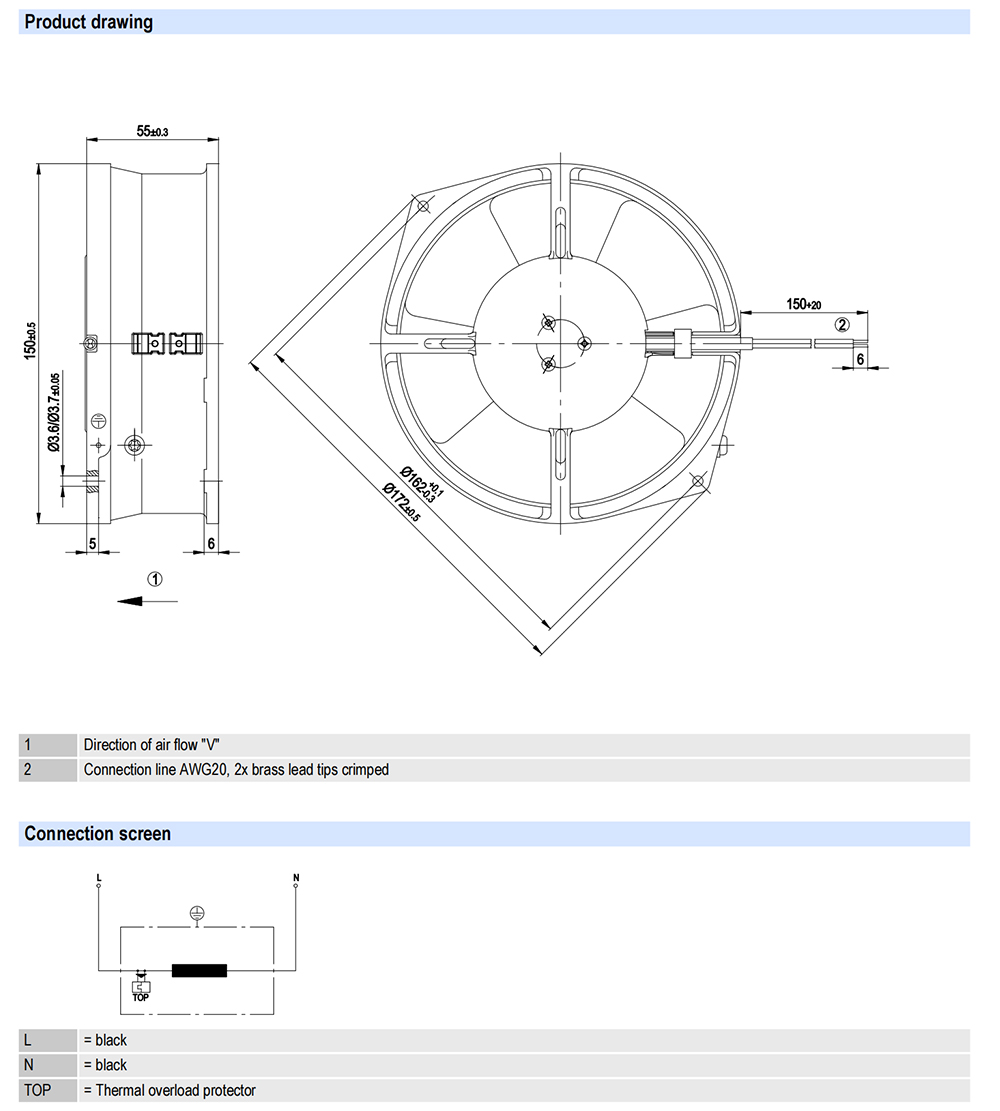

There are many highlights in the technical design of the W21301-AB03-21 axial fan. Its size is 130mm (which may be a key dimension stated in the document, combined with the previous speculation that it may be a key dimension such as fan blade diameter, the overall product size is 17215055mm), with a mass of 1.08kg. The overall design is compact and lightweight, easy to install and layout. In the trend of pursuing miniaturization and integration in modern devices, the compact size of this fan makes it easy to adapt to various devices and places with limited space. In the chassis of some small electronic devices, space is very precious. The W21301-AB03-21 axial fan can be cleverly installed inside it, without occupying too much internal space, while providing necessary ventilation and heat dissipation functions for the device. Its lightweight quality also reduces the difficulty and complexity of the installation process, making it more convenient to operate whether installing at heights or frequently moving installation positions.

The blades are made of black coated steel plate material, which has many advantages in material selection. The steel plate itself has high strength and can withstand the centrifugal force caused by high-speed rotation, ensuring that the blades will not deform or be damaged during long-term high-speed operation. The black coating not only serves the purpose of aesthetics, but more importantly, enhances the corrosion resistance of the blades. In some environments where corrosive gases or high humidity may exist, black coating can effectively prevent blade corrosion, extend the service life of the blades, and ensure the long-term stable operation of the fan. The wall ring is made of black coated die cast aluminum material, which has good heat dissipation performance and helps the motor dissipate heat quickly during operation. The motor generates a large amount of heat during operation. If it cannot be dissipated in a timely manner, it will cause the motor temperature to be too high, affecting its performance and lifespan. Die cast aluminum wall ring is like an efficient heat sink, which can quickly dissipate the heat generated by the motor, ensuring the stability of the motor and thereby improving the reliability of the entire fan.

The fan has 7 blades and a unique "V" - shaped airflow direction design, combined with counterclockwise rotation (viewed from the rotor end), which can effectively guide air flow and improve ventilation efficiency. The "V" - shaped airflow direction design allows air to form a relatively regular airflow path when entering and exiting the fan, reducing air turbulence and energy loss. The counterclockwise rotation direction is carefully designed to match the shape of the blades and the "V" - shaped airflow direction, maximizing the blade's pushing effect on the air and enabling the fan to deliver more air per unit time, achieving efficient ventilation.

In terms of protection and safety performance, the W21301-AB03-21 axial fan performs excellently. Its protection level is IP20, which means it can prevent objects with a diameter greater than 12mm from entering. In a typical indoor environment, there may be some dust, small particles, debris, or accidentally dropped small objects. The IP20 protection level can effectively prevent these objects from entering the interior of the fan, providing certain protection for the motor and other key components inside, avoiding short circuits, wear and tear caused by external intrusion, and ensuring that the fan can operate normally in complex indoor environments. The insulation level has reached "F" level, which is a high recognition of its electrical safety performance. The "F" level insulation indicates that it can withstand high temperatures, even in relatively harsh working environments such as poor ventilation causing motor temperature to rise, or when used in places with high ambient temperatures. This fan can effectively prevent electrical failures and ensure safety during use. Users do not need to worry about safety hazards such as leakage and short circuits caused by poor insulation performance, and can use it with confidence in various environments.

The built-in thermal overload protector (TOP) provides additional safety protection for the fan, which is another important manifestation of the fan's safety design. When the fan experiences overload, such as a blocked ventilation duct causing excessive load on the fan, or an internal fault in the motor causing abnormal current increase, the thermal overload protector will automatically cut off the circuit to prevent damage to the motor due to overheating. This self-protection mechanism greatly extends the service life of the fan, reducing the cost and time of replacing or repairing the fan due to motor damage. For some ventilation systems that require long-term continuous operation, the presence of a thermal overload protector ensures that the fan can work stably and reliably, without frequent failures due to accidental overload, and improves the operational efficiency and reliability of the entire ventilation system.

The application scenarios of W21301-AB03-21 axial flow fan are very extensive. In the field of electronic devices, small servers, network switches, and other devices generate a large amount of heat during operation. If they cannot dissipate heat in a timely manner, it will seriously affect the performance and stability of the devices. Taking small servers as an example, the electronic components inside the server are highly integrated and release a large amount of heat during high-speed computing. If this heat accumulates inside the server, it will cause the temperature of electronic components to continuously rise, thereby affecting their operating speed and data processing accuracy, and may even cause hardware failures. W21301-AB03-21 axial flow fan can quickly exhaust hot air inside the equipment and introduce cold air with its efficient ventilation capacity, forming a good heat dissipation cycle. By properly installing the fan on the server chassis, the internal temperature of the server can be controlled within a reasonable range, ensuring stable operation of electronic devices in a suitable temperature environment, safeguarding data security and normal device operation.

In the industrial field, the electrical components inside the control cabinet generate heat during operation. If this heat is not dissipated in a timely manner, it can affect the performance and lifespan of the electrical components, and may even cause safety accidents. W21301-AB03-21 axial fan can be installed on the control cabinet to maintain stable temperature inside the control cabinet through ventilation and heat dissipation. In some control cabinets on automated production lines, a large number of electrical components such as controllers, relays, and frequency converters are integrated inside, and the heat generated by these components during operation cannot be ignored. This fan continuously exhausts hot air from the control cabinet and introduces fresh cold air, effectively reducing the temperature inside the control cabinet, protecting electrical components, ensuring the normal operation of industrial production, and reducing the risk of production interruption and equipment damage caused by overheating of the control cabinet.

In commercial places such as small shops, offices, etc., ventilation directly affects people's comfort and health. In small shops, personnel movement and the operation of various equipment can cause indoor air to become polluted, carbon dioxide concentration to increase, and odors to increase. W21301-AB03-21 axial fan can improve indoor air quality by expelling polluted air and introducing fresh air. By installing the fan on the walls or ceilings of the store, effective air circulation can be created, creating a comfortable shopping and working environment for customers and employees, enhancing their shopping experience and work efficiency. In office environments, where personnel spend long periods of time in relatively enclosed spaces, good ventilation is crucial for maintaining fresh air and reducing the spread of bacteria. This fan can be installed in the ventilation system of an office or used as a local ventilation device to ensure that the air in the office remains fresh and provides a healthy and comfortable working environment for employees.

In addition, in some special places with high ventilation requirements, such as medical equipment rooms, laboratories, etc., W21301-AB03-21 axial flow fans can also play an important role. In the medical equipment room, some precision medical equipment generates heat during operation and has strict requirements for environmental cleanliness and temperature and humidity. This fan can be used in conjunction with air purification equipment and temperature and humidity control equipment to dissipate heat from the equipment while ensuring the cleanliness and stability of indoor air temperature and humidity, providing a guarantee for the normal operation of medical equipment. In the laboratory, harmful gases or odors may be generated during the experimental process. The W21301-AB03-21 axial flow fan can promptly exhaust these harmful gases, maintain the freshness of the laboratory air, and protect the health of experimental personnel.

The W21301-AB03-21 axial fan has demonstrated significant advantages in performance, design, safety protection, and application. Its emergence meets the diverse needs of different industries for ventilation equipment, playing an important role in ensuring the normal operation of equipment and improving environmental comfort. With the continuous advancement of technology and the increasing demand for ventilation equipment in various industries, the W21301-AB03-21 axial fan, with its excellent comprehensive performance, will be widely used in more fields and become a highly competitive product in the ventilation equipment market, contributing to the development of various industries.
