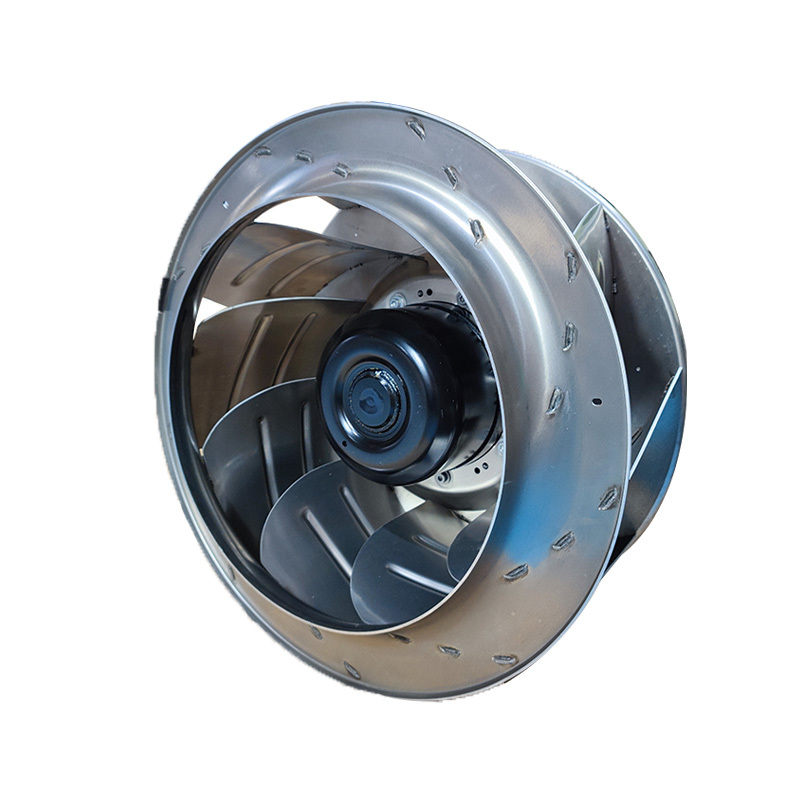

| Brand: | ebm-papst |
| Part No.: | R3G560-PB31-71 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage (V): | 400 |

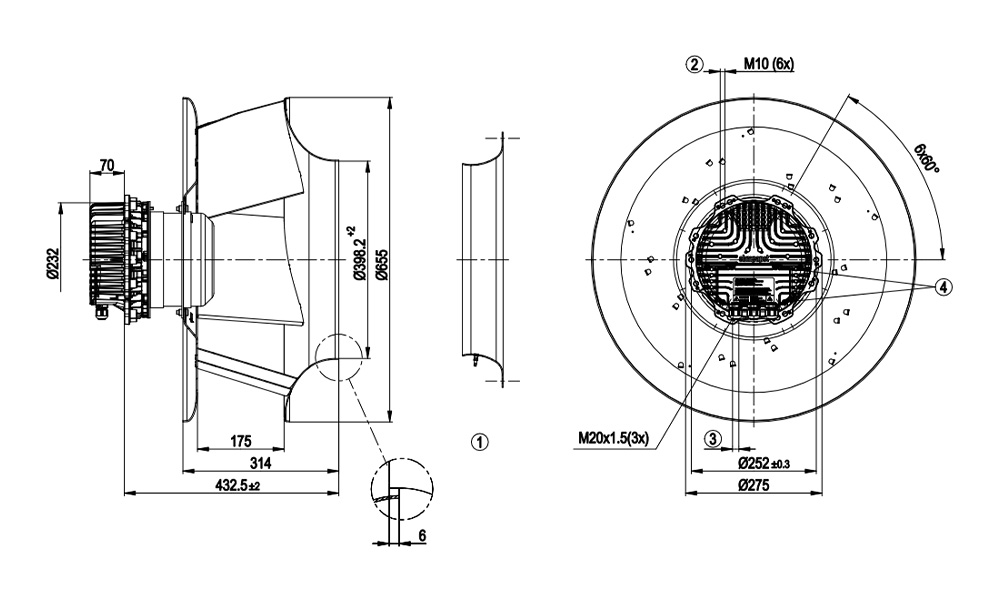

| Size (mm): | 560 |

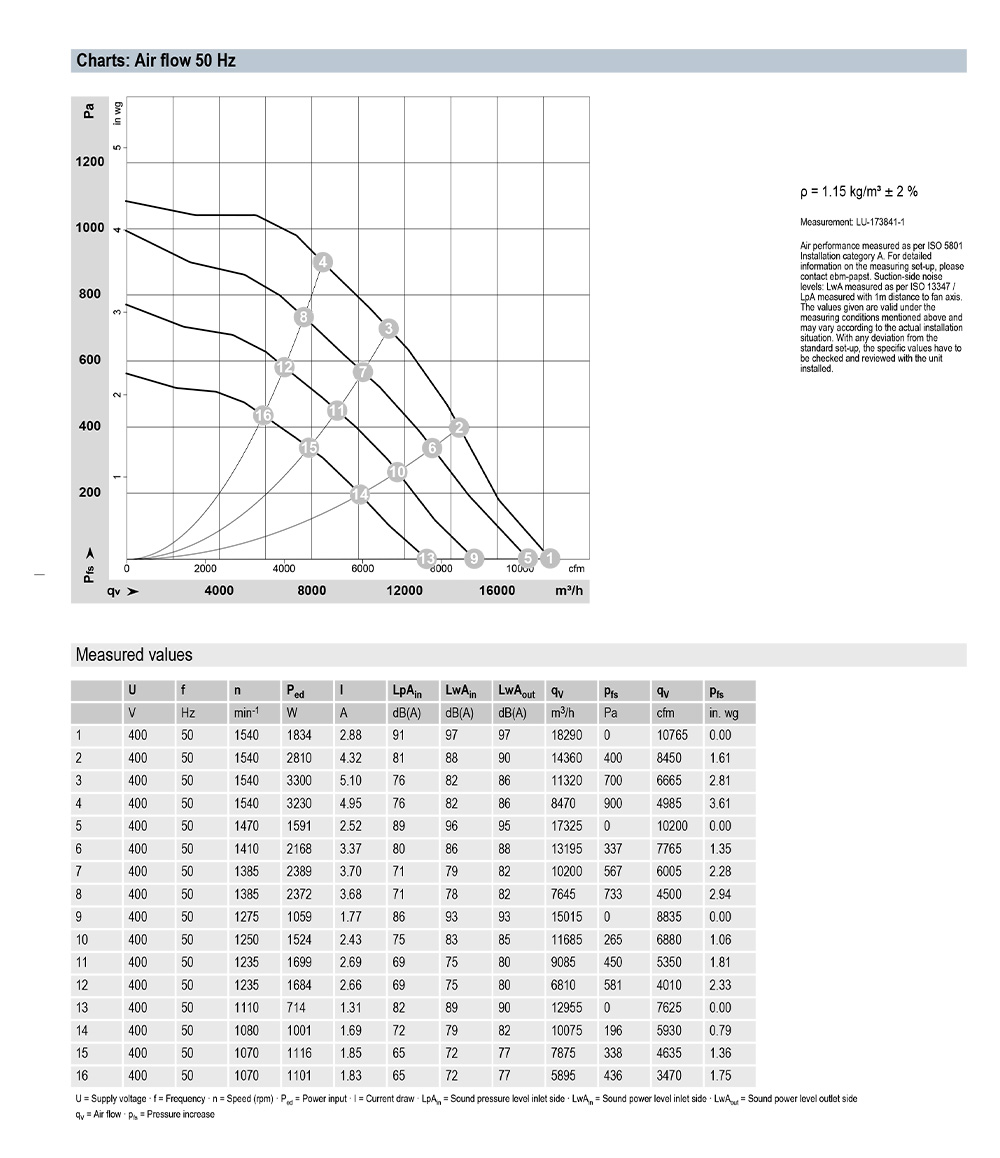

| Max. Air Flow (m³/h): | 18290 |
| Max. Pressure (Pa): | 900 |
| Input Power (W): | 3300 |
| Speed (RPM): | 1540 |
| Noise (dB): | 91 |
| Mass: | 30.5 kg |
| Surface of Rotor: | Coated in black |
| Material of Electronics Housing: | Die-cast aluminium |
| Material of Impeller: | Aluminium sheet |
| Number of Blades: | 5 |
| Direction of Rotation: | Clockwise, seen on rotor |
| Type of Protection: | IP 55 |
| Insulation Class: | F |
| Humidity (F) / Environmental Protection Class (H): | H1 |
| Max. Permissible Ambient Motor Temp. (Transp./Storage): | +80 °C |
| Min. Permissible Ambient Motor Temp. (Transp./Storage): | -40 °C |
| Mounting Position: | Shaft horizontal or rotor on bottom; rotor on top on request |
| Condensate Discharge Holes: | Rotor-side |
| Operation Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Technical Features: | Output 10 VDC, max. 10 mA Operation and alarm display External 24 V input (programming) External release input Alarm relay Integrated PID controller Motor current limit PFC, passive RS485 MODBUS RTU Soft start Control input 0-10 VDC / PWM Control interface with SELV potential safely disconnected from the mains Over-temperature protected electronics / motor Line undervoltage / phase failure detection |
| EMC Interference Immunity: | Acc. to EN 61000-6-2 (industrial environment) |
| EMC Interference Emission: | Acc. to EN 61000-6-3 (household environment), except EN 61000-3-2 for professionally used devices with a total rated power greater than 1 kW |
| Touch Current acc. IEC 60990 (Measuring Network Fig. 4, TN System): | ≤ 3.5 mA |
| Electrical Leads: | Via terminal box |
| Motor Protection: | Reverse polarity and locked-rotor protection |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | EN 61800-5-1; CE |
| Approval: | EAC |
