612NGH ebm-papst

Name: 612NGH ebm-papst
Brand: APAC FAN
SKU: 612NGH
Price: 17.8 USD
Availability: InStock

No.612NGH

4.6 (0)

115 Sold

$17.80

ebm-papst，Compact Fan，60*60*25mm，12V，2.4W，43m³/h，5600rpm，37dB

Received successfully

Coupon Code

1/1

Brand：	ebm-papst
Part No：	612NGH
Fan Type：	Compact Fan
Rated Voltage(V)：	12
Size(mm)：	606025
Max.Air Flow(m³/h)：	43
Max.Pressure(Pa)：	80
Input Power(W)：	2.4
Speed(rpm)：	5600
Noise(dB)：	37
Airflow Direction：	Air outlet over struts
Rotating Direction Looking at Rotor：	Clockwise
Current Consumption：	200 mA
Mass：	0,066 kg
Protection Class：	III
Max. Torque When Mounted Across Both Mounting Flanges：	wire outlet corner: 20 Ncm; remaining corners: 40 Ncm
Screw Size：	ISO 4762 - M3 degreased, without an additional brace and without washer

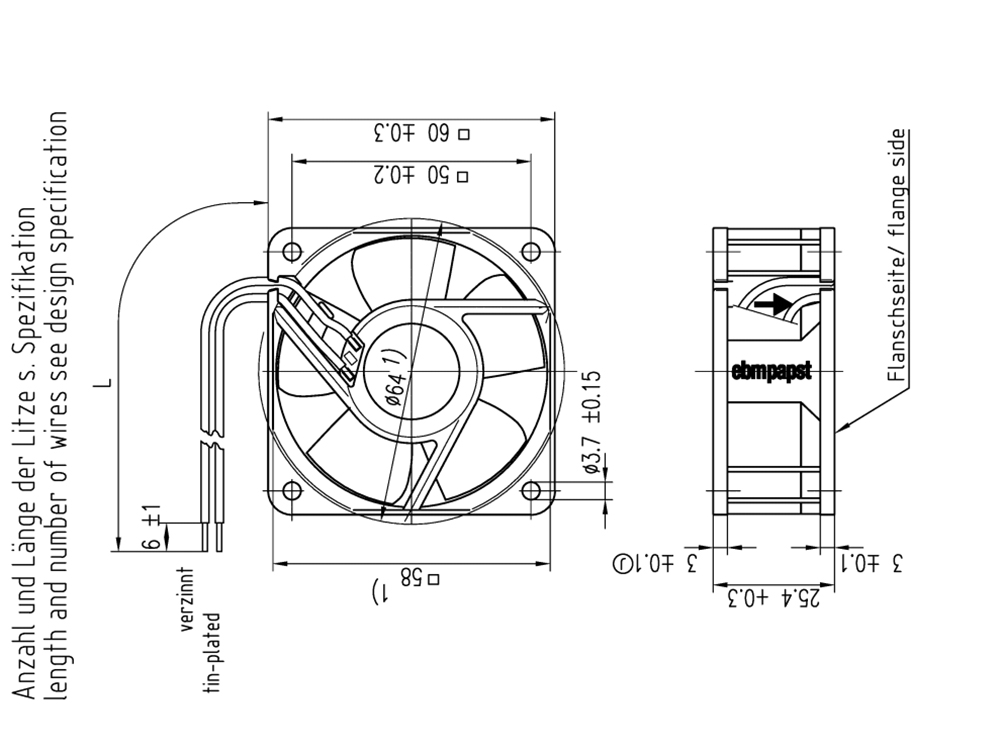

612NGH ebmpapst Specification drawing：
