| Brand： | ebm-papst |
| Part No： | D2E160-AH01-17 |
| Fan Type： | Centrifugal Fan |
| Rated Voltage(V)： | 230 |
| Size(mm)： | 160 |
| Input Power(W)： | 425 |
| Speed(rpm)： | 3120 |
| Weight: | 11 kg |
| Motor Size: | 74 |
| Rotor Surface: | Painted black |
| Impeller Material: | Sheet steel, hot-dip galvanized |
| Housing Material: | Sheet steel, hot-dip galvanized |
| Motor Suspension: | Motor vibration-damped on both sides |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP00 |
| Insulation Class: | "F" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Installation Position: | Any |
| Condensation Drainage Holes: | None, open rotor |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |
| Touch Current according to IEC 60990 (measuring circuit Fig. 4, TN system): | < 0.75 mA |

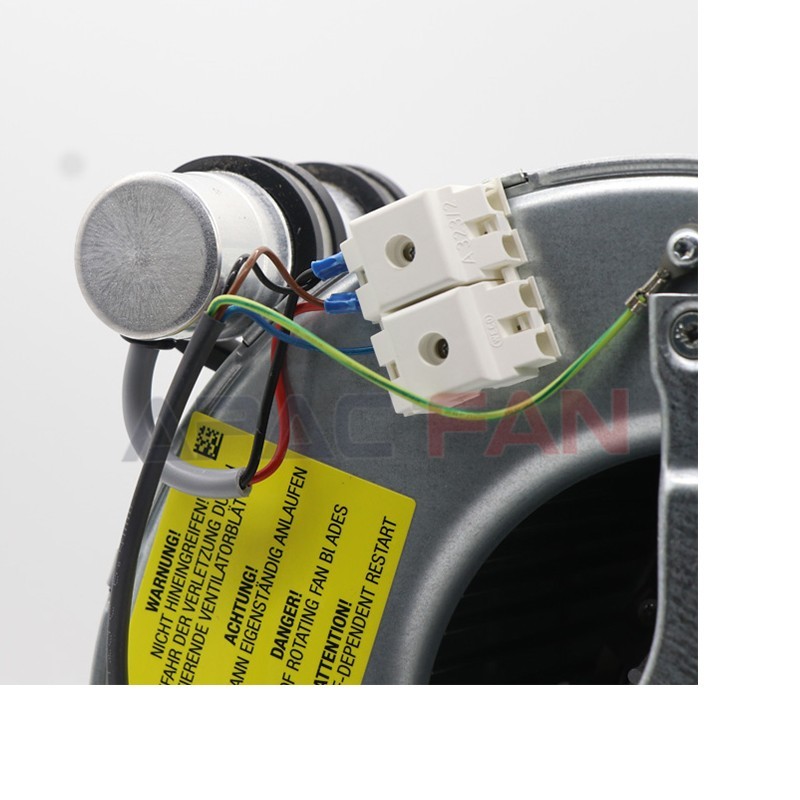

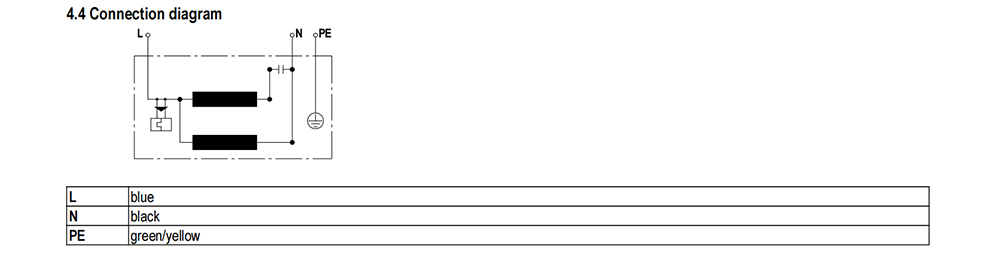

| Electrical Hookup: | Via terminal strip, capacitor connected |
| Motor Protection: | Thermal overload protector (TOP) internally connected |
| With Cable: | Axial |
| Protection Class: | I (with customer connection of protective earth) |
| Motor Capacitor according to EN 60252-1 in Safety Protection Class: | S2 |
