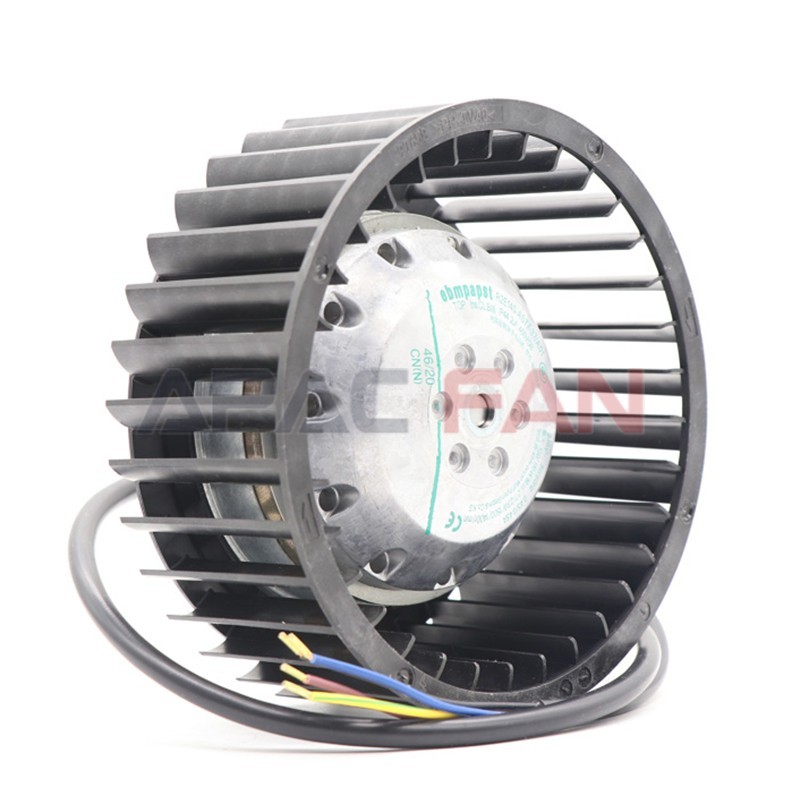

EC centrifugal fan, forward-curved, single-intake
| Brand: | ebm-papst |
| Part No: | R3G140-8317076059 |
| Fan Type: | Centrifugal Fan |
| Rated Voltage(V): | 220 |

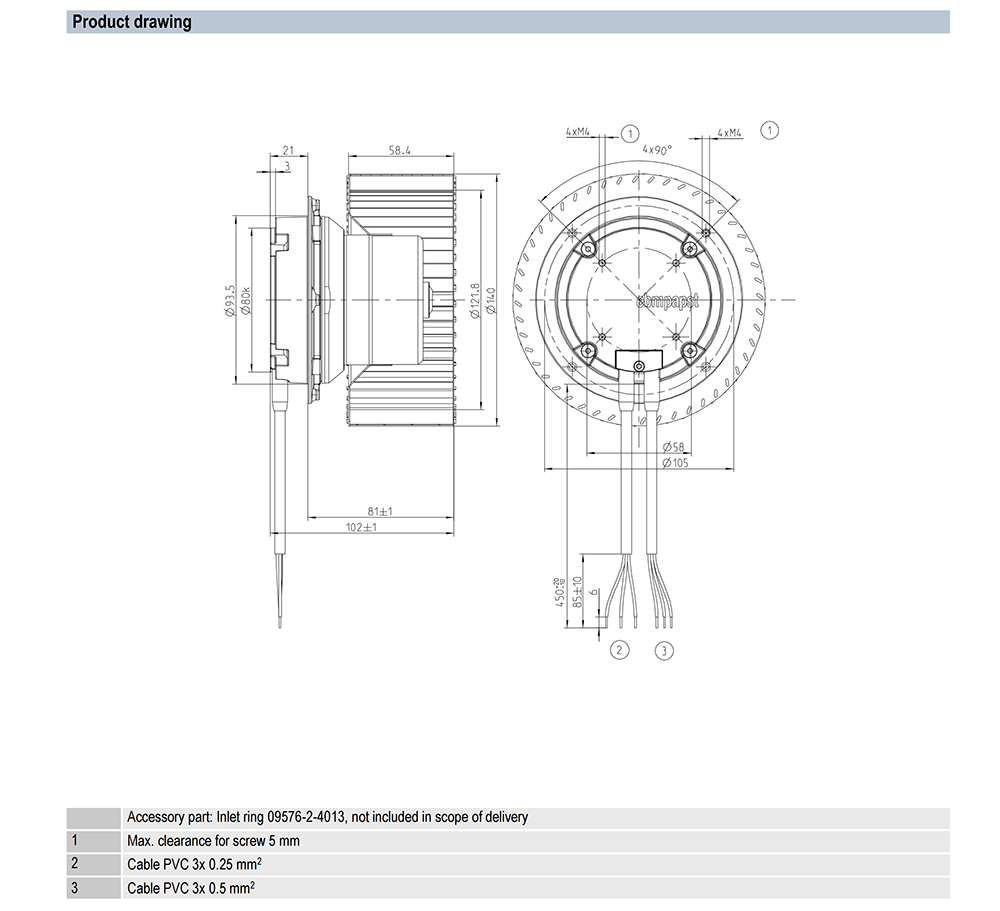

| Size(mm): | 140 |

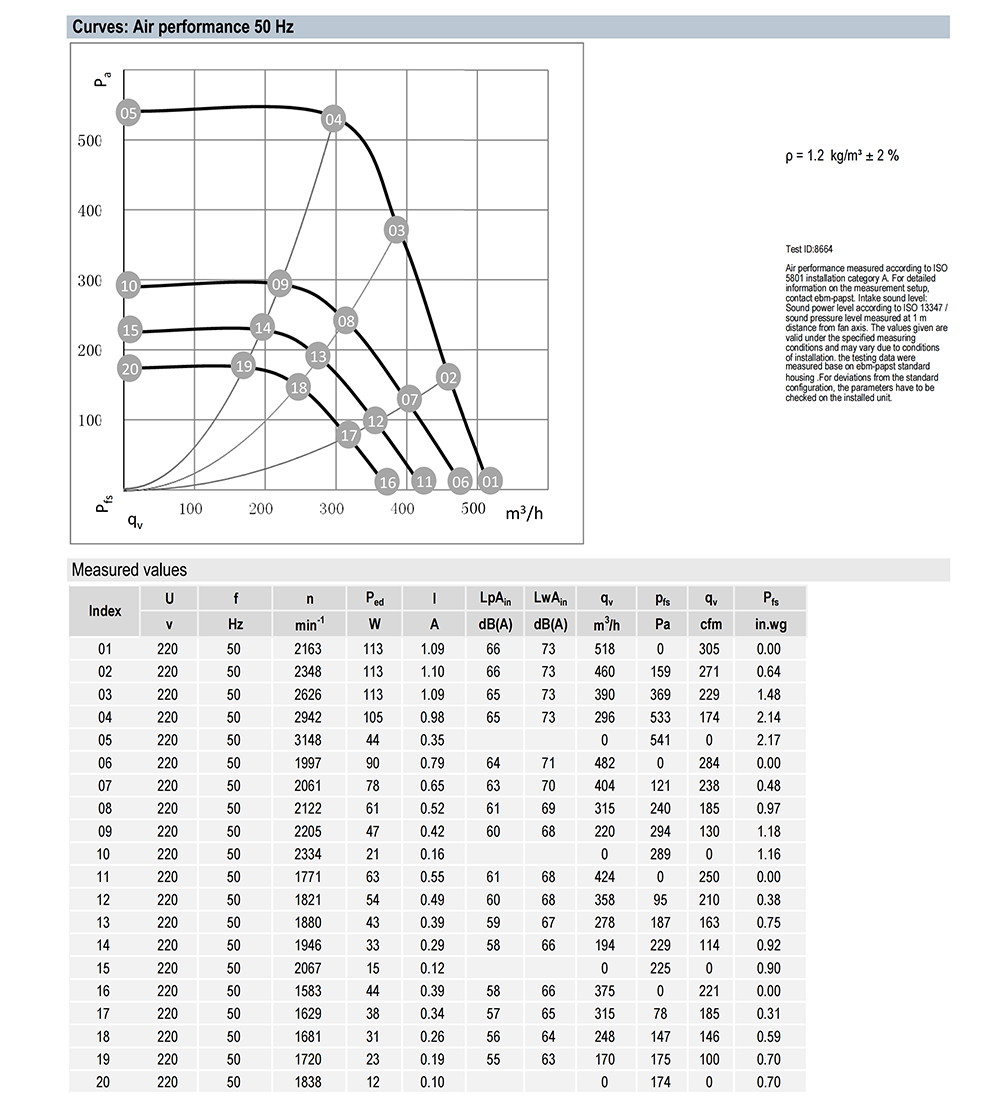

| Max.Air Flow(m³/h): | 518 |
| Max.Pressure(Pa): | 541 |
| Input Power(W): | 110 |
| Speed(RPM): | 2447 |
| Noise(dB): | 55 |
| Weight: | 1.24 kg |
| Rotor Surface: | Thick-film passivated |
| Impeller Material: | Sheet steel, galvanized |
| Direction of Rotation: | Clockwise, viewed toward rotor |
| Degree of Protection: | IP44 (Air inlet upward or horizontal) |
| Insulation Class: | "B" |
| Moisture (F) / Environmental (H) Protection Class: | H1 |
| Max. Permitted Ambient Temp. for Motor (Transport/Storage): | + 80 °C |
| Min. Permitted Ambient Temp. for Motor (Transport/Storage): | - 40 °C |
| Installation Position: | Any |
| Condensation Drainage Holes: | None, open rotor |
| Mode: | S1 |
| Motor Bearing: | Ball bearing |

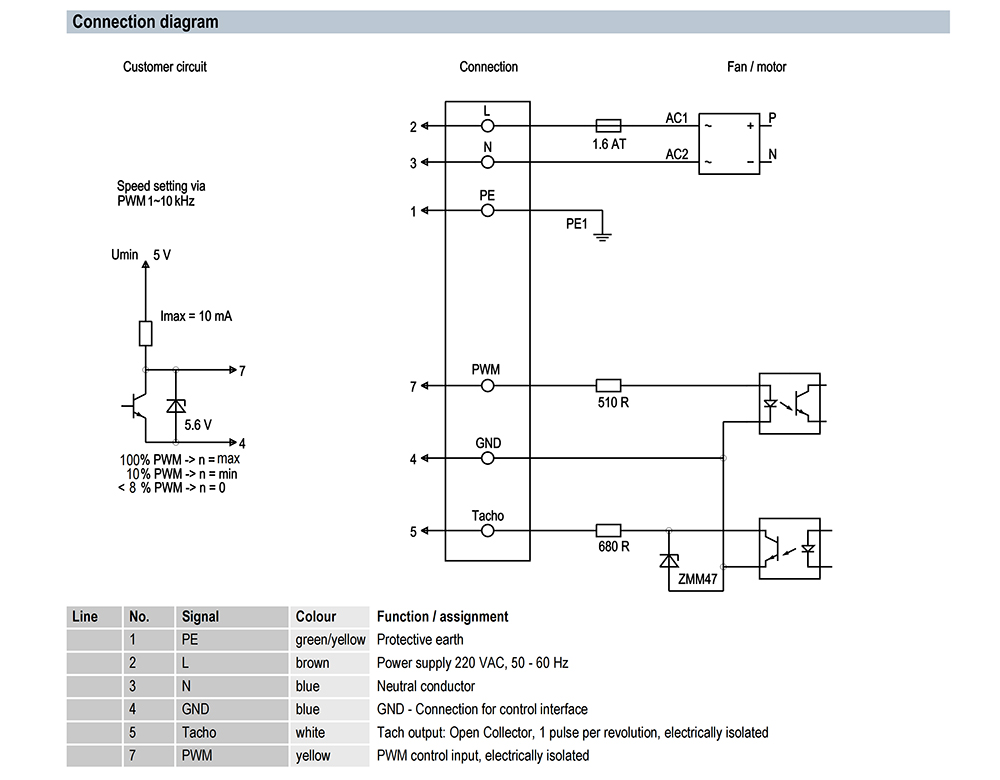

| Technical Features: | - Tach output - Motor current limit - Soft start - PWM control input |
| Touch Current acc. IEC 60990 (measuring network Fig. 4, TN system): | <= 3.5 mA |
| Motor Protection: | Locked-rotor protection |
| Cable Exit: | Variable |
| Protection Class: | I (if protective earth is connected by customer) |
| Product Conforming to Standard: | GB12350 |
| Approval: | CCC |
